CSW-220

Maximum total charge current ≤ 2100 mA pic Two USB connectors pic

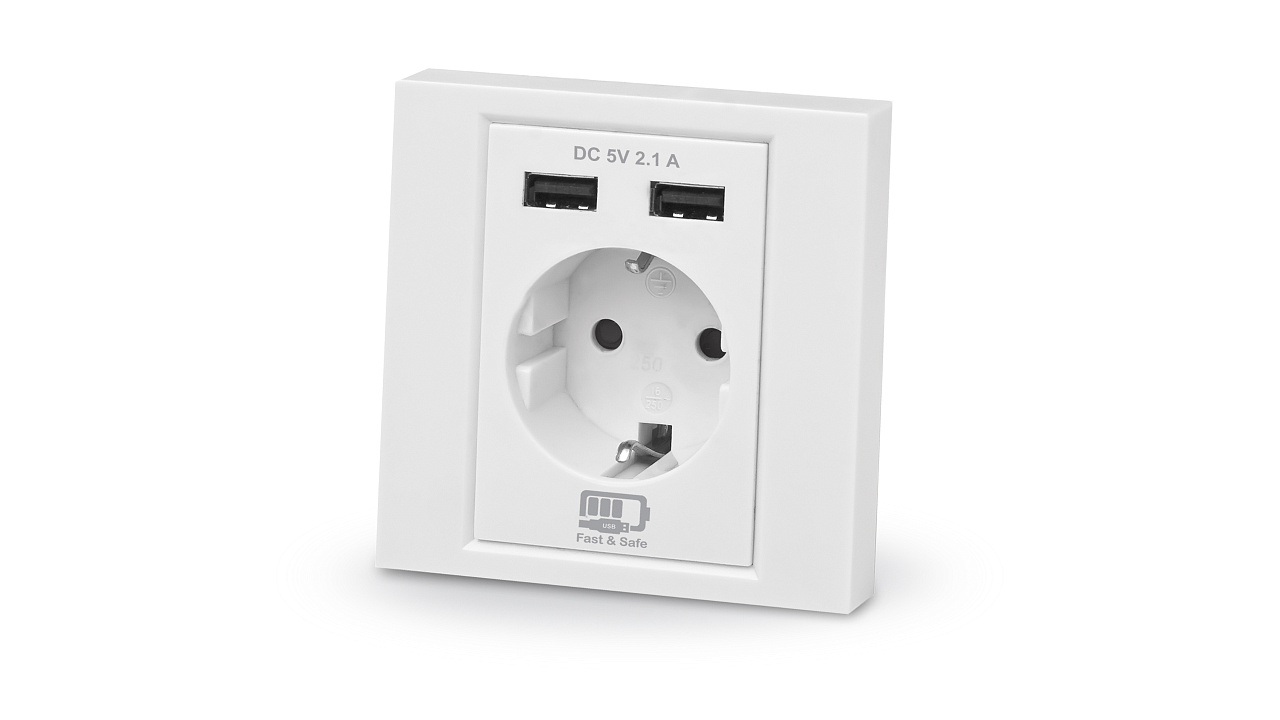

The socket with a built-in USB power block REAL-EL CSW-220 is designed for connecting electrical appliances to the power grid and for using it simultaneously with 2 USB ports.

Personalities

    • Installation in a standard mounting box
    • Use of power socket simultaneously with USB ports
    • Built-in power block 5V/2.1A
    • Protective shutters and grounding contacts
    • Housing material - non-combustible ABS plastic

Technical specifications

  • Connector type 2 × USB
  • Rated input voltage (max.), V/Hz ~250/50
  • Maximum current load, A 16
  • Output voltage of USB, V 5 ± 5 %
  • Maximum output current of USB, mА 2100
  • Output power of USB, W 10,5
  • Built-in power supply 5 В/2,1 A
  • Case material ABS plastic
  • Color white
