CSW-210-C

CSW-210-C

Підключення за допомогою USB pic Максимальний сумарний струм заряду 2100 мА pic

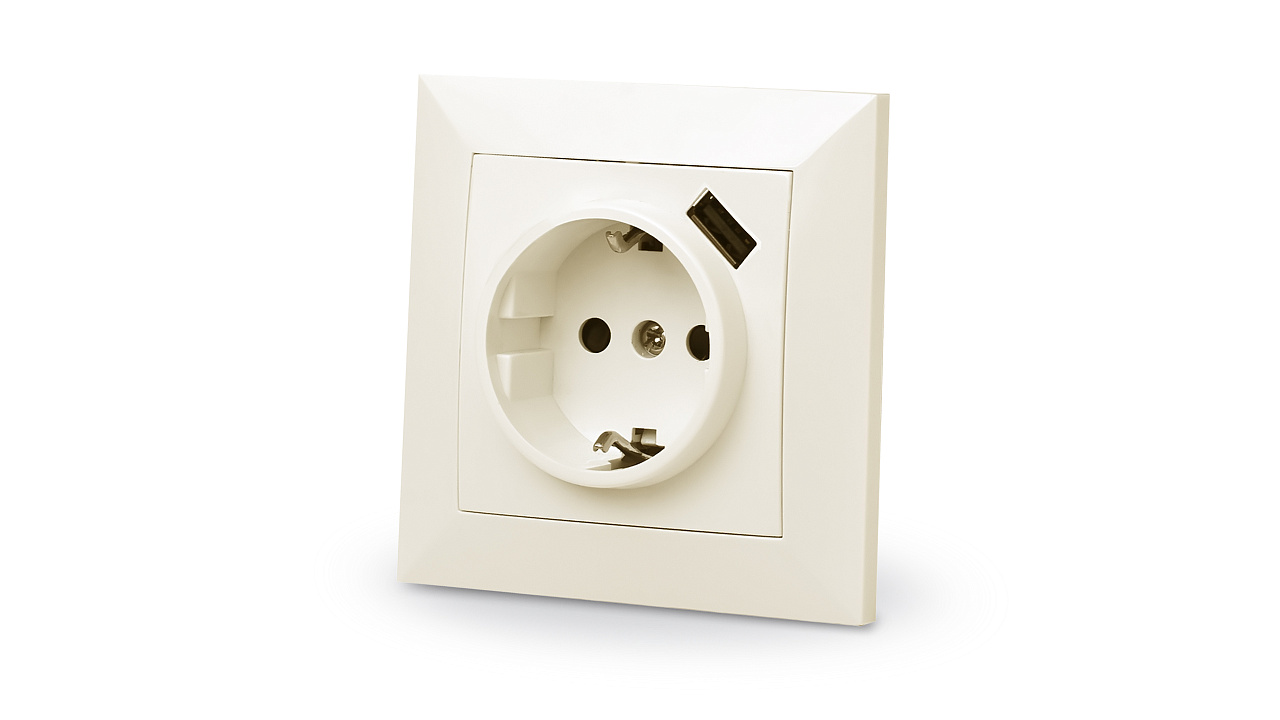

The socket with a built-in USB power block REAL-EL CSW-210-C is designed for connecting electrical appliances to the power grid and for simultaneous use with a USB port.

Personalities

    • Installation in a standard mounting box
    • Using the power socket simultaneously with the USB port
    • Built-in power block 5 V/2.1 A
    • Protective shutters and grounding contacts
    • Housing material - non-flammable ABS plastic

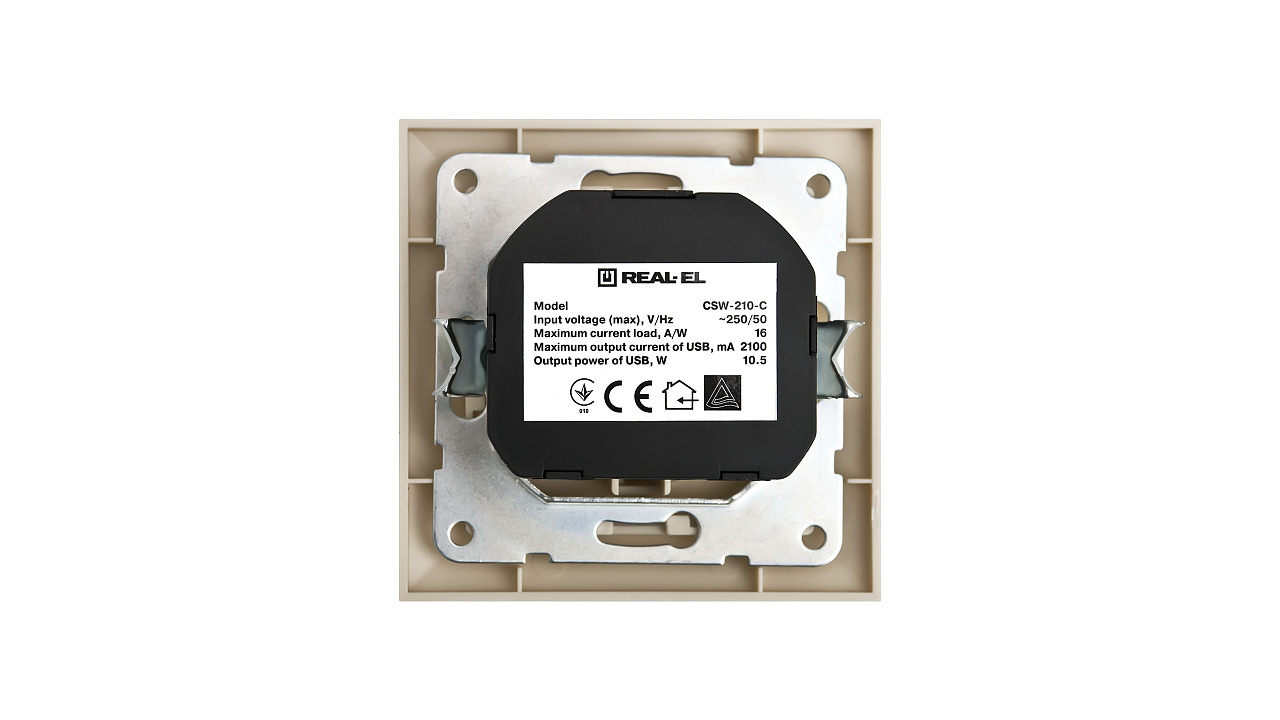

Technical specifications

  • Connector type USB
  • Rated input voltage (max.), V/Hz ~250/50
  • Maximum current load, A 16
  • Output voltage of USB, V 5 ± 5 %
  • Maximum output current of USB, mА 2100
  • Output power of USB, W 10,5
  • Built-in power supply 5 В/2,1 A
  • Case material ABS plastic
  • Color cream
