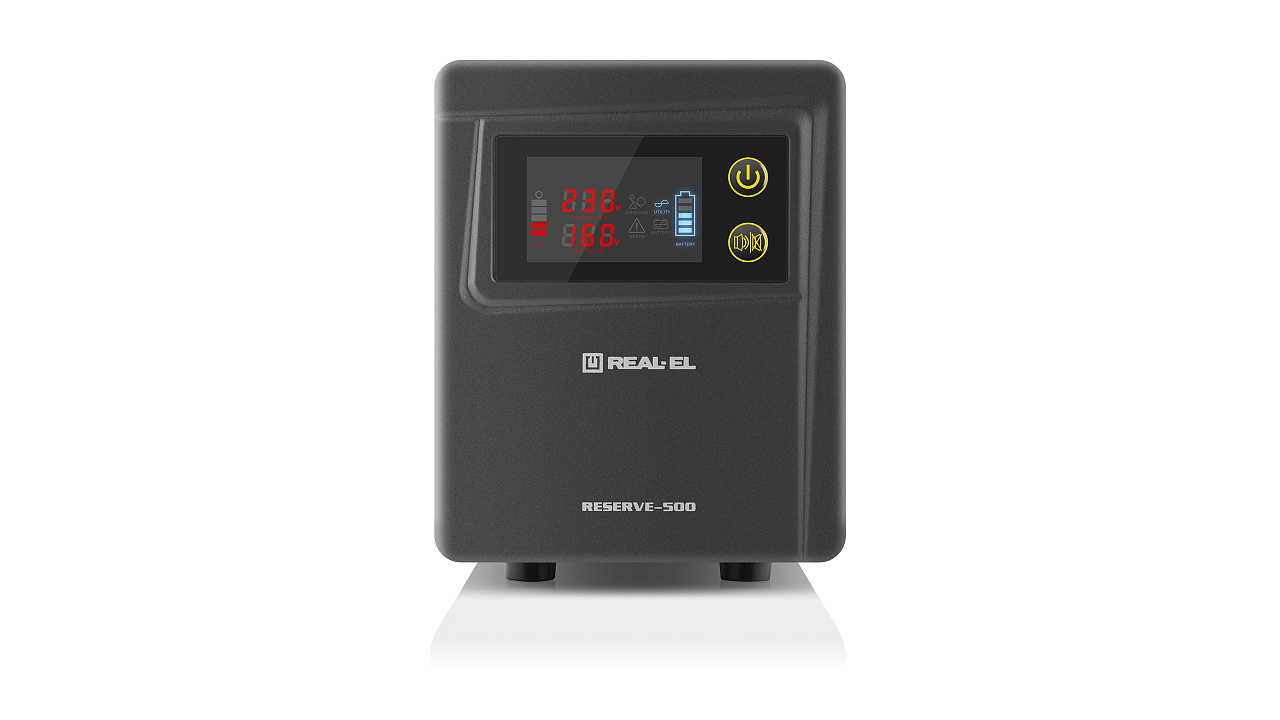

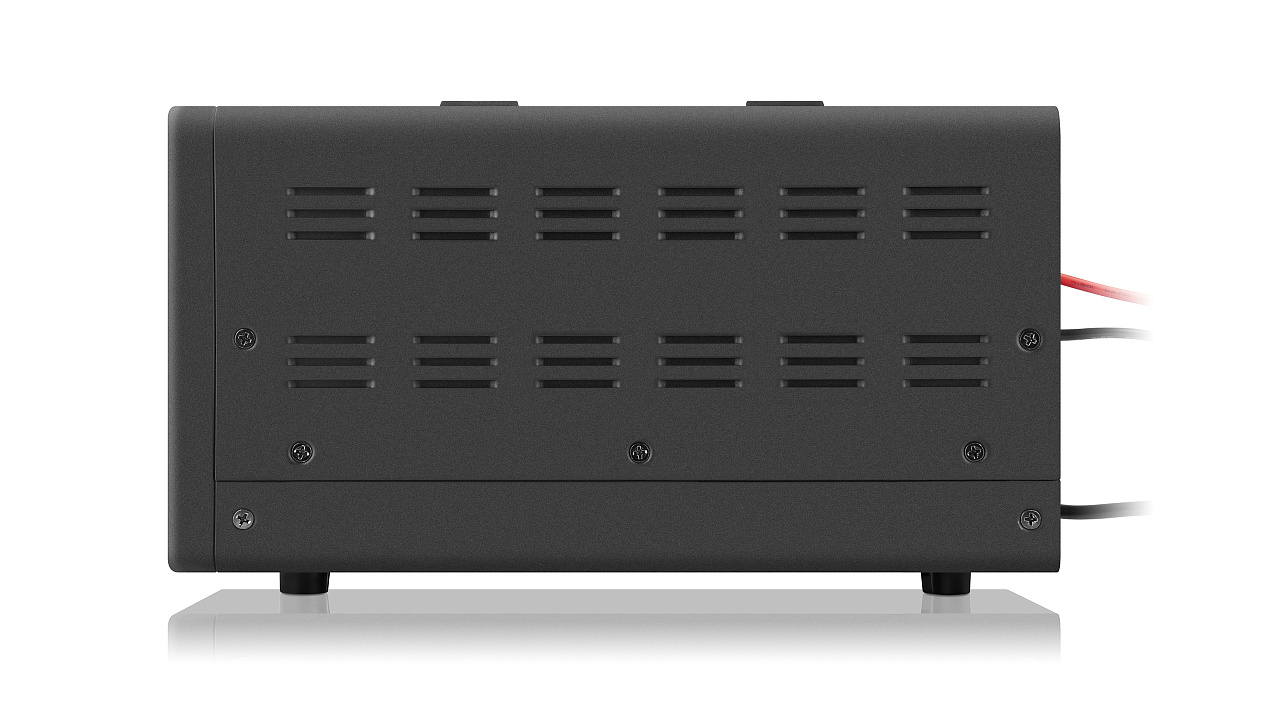

RESERVE-500

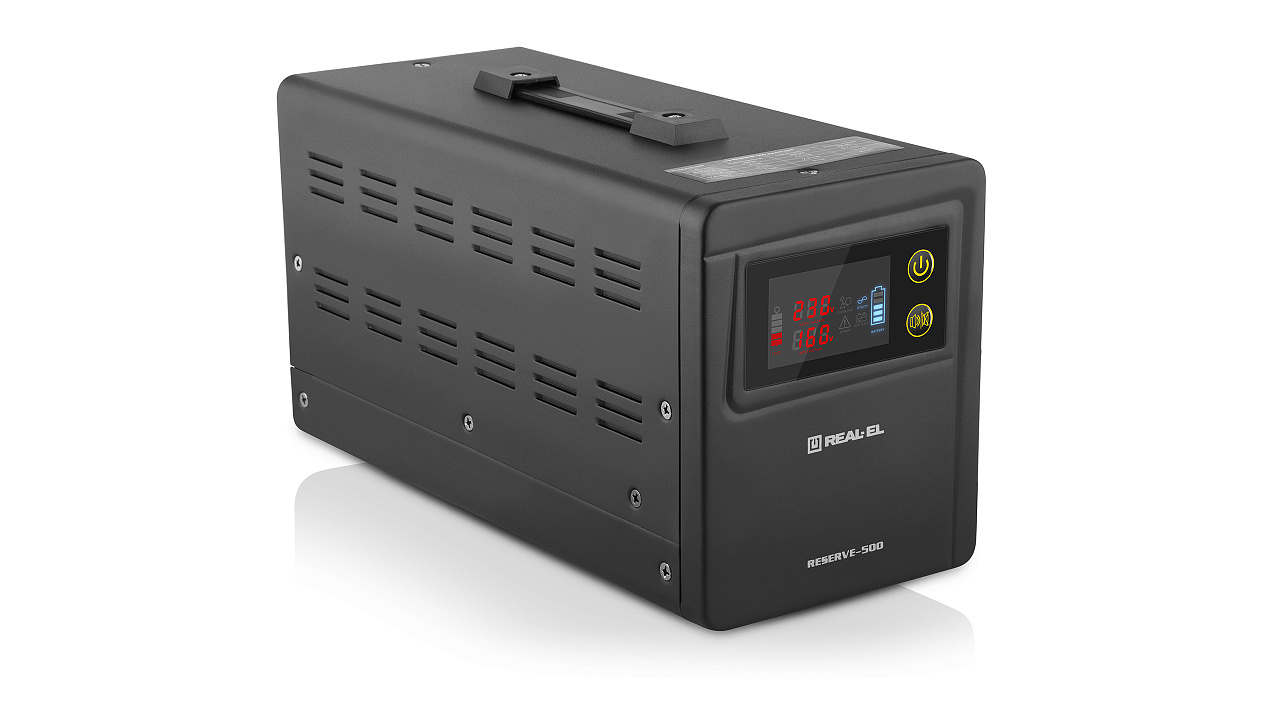

The line-interactive UPS of continuous operation with a long reserve time for connecting external batteries REAL-EL RESERVE-500 is intended for operation with lead-acid maintenance-free AGM batteries with a voltage of 12 V. Their principle of operation is based on converting the direct current of external batteries into alternating current. The output current waveform is a pure sine wave.

Personalities

    • Pure sine wave output voltage
    • Continuous operation with long reserve time
    • Built-in mains voltage stabilizer
    • Microprocessor control
    • Protection against short circuit in the load connected to the UPS, as well as against overload
    • Protection against high or low mains voltage
    • Degree of protection against external influences IP-20
    • Self-diagnosis on startup

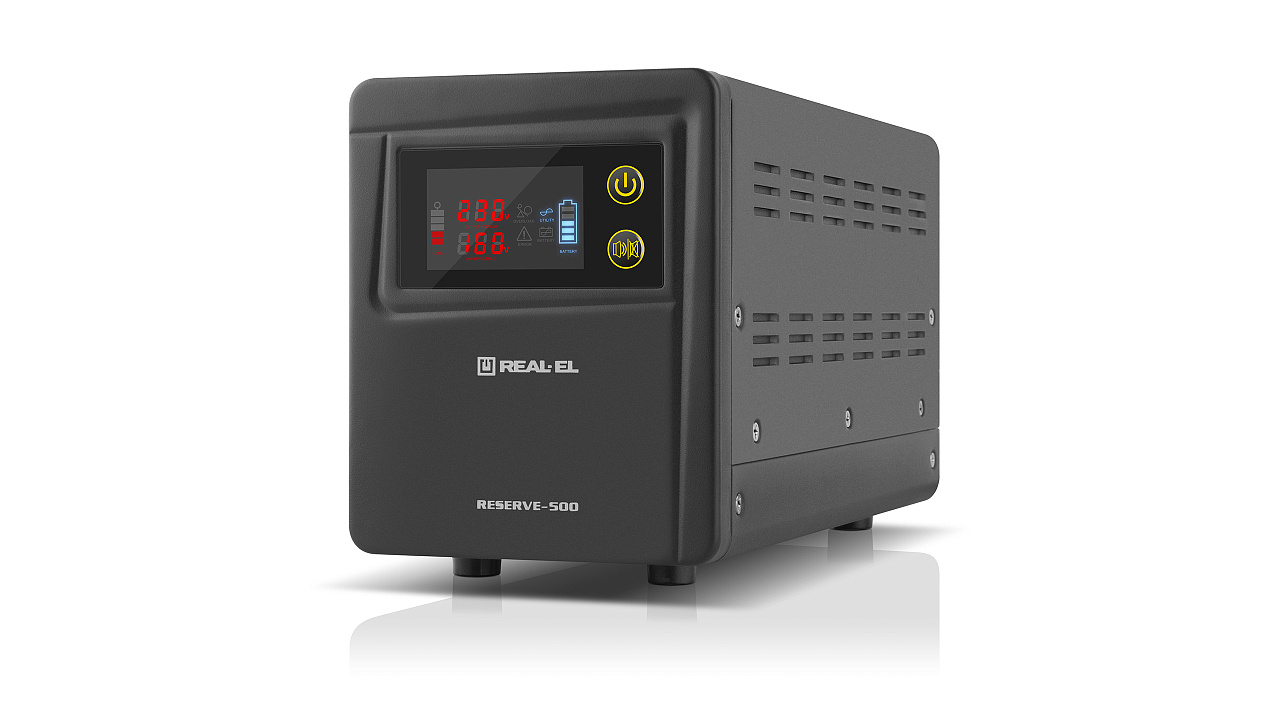

    • Indication of operating modes on the LCD display
    • Switching time between modes - less than 4 ms
    • "Autostart" function
    • Low noise level

Technical specifications

  • Type line-interactive of continuous action with long backup time
  • Type of load household and industrial equipment
  • Output rated power, VA 500
  • Active power, W 300
  • Maximum load, W 300
  • Allowable overload of the rated power, % 110
  • Input voltage, V ~160 – 265
  • Output voltage, V ~230 ± 10 %
  • Output voltage form pure sinusoid
  • AVR (Automatic Voltage Regulator) available
  • Input frequency, Hz 50
  • Output frequency, Hz 50
  • Number of phases 1

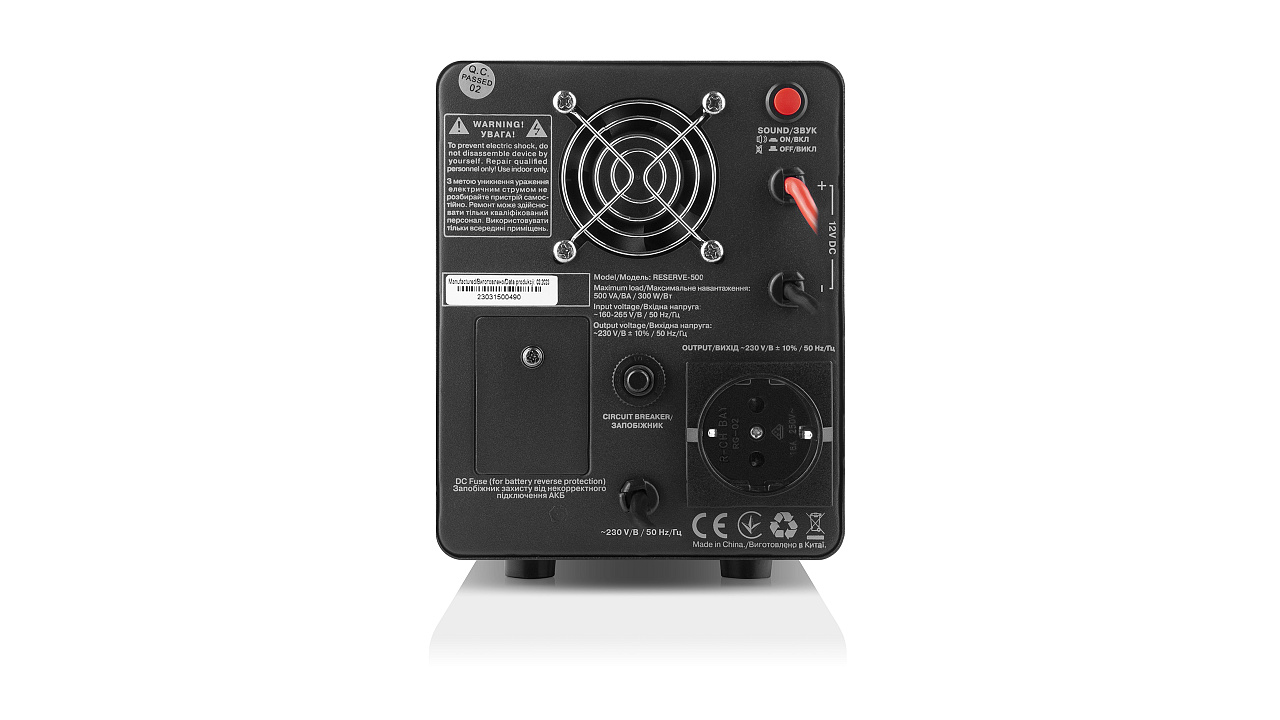

  • Output socket 1 × СЕЕ7/7
  • Input socket 1 × СЕЕ7/4

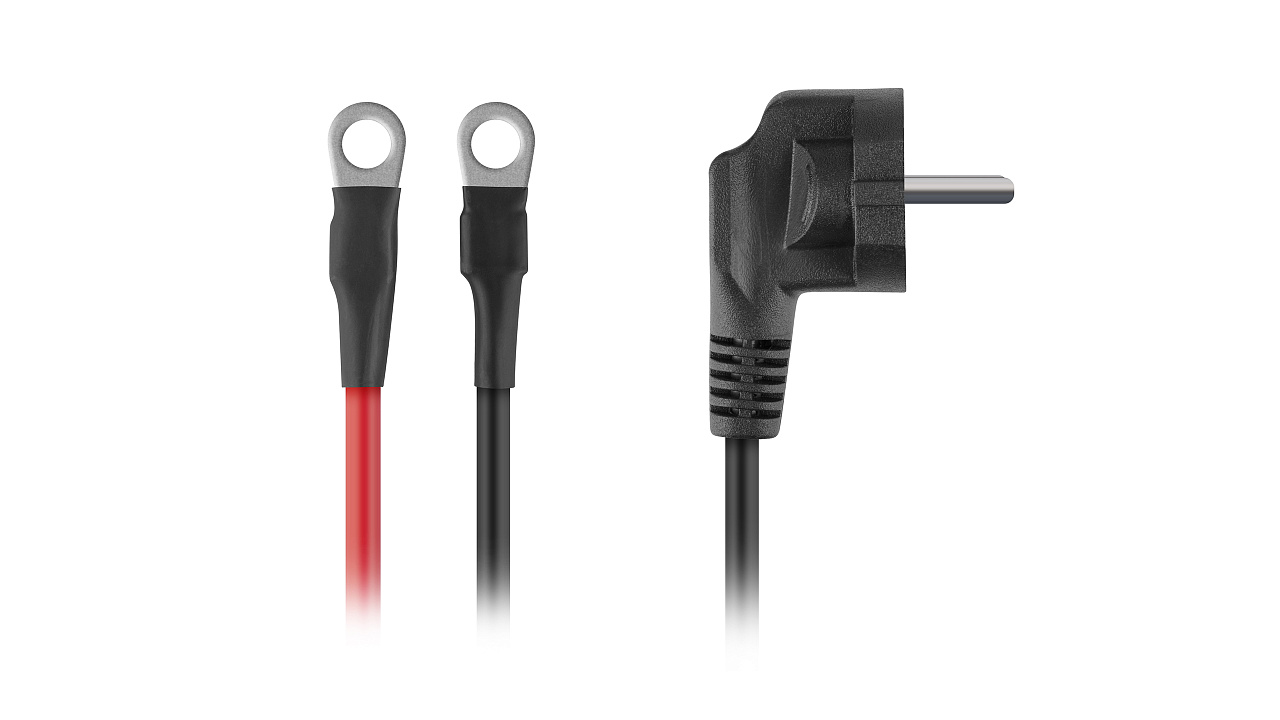

  • Input terminals terminals to connect battery
  • Protection against high voltage/undervoltage, overload, short circuit (AVR operation mode); against discharge, overload, short circuit (battery operation mode)
  • Overload protection acting, % 120
  • Beeps low battery charge, overload, error
  • Battery type non-serviceable leakproof lead-acid
  • Typical switching time, ms < 4
  • Battery voltage, V 12 (must be purchased separately)
  • Indication input/output voltage, input frequency, battery capacity balance, load rate, operation mode, battery charge, overload, errors
  • Cooling type convective; by fan
  • Operation mode continuous, long-lasting
  • Noise level, dB < 45
  • Efficiency, % 98 (AVR mode); 60 (inverter mode)
  • DC fuse, A 2 × 25
  • Environmental temperature, °С -5 до +40
  • Relative humidity, % before 90 % (without condensation)

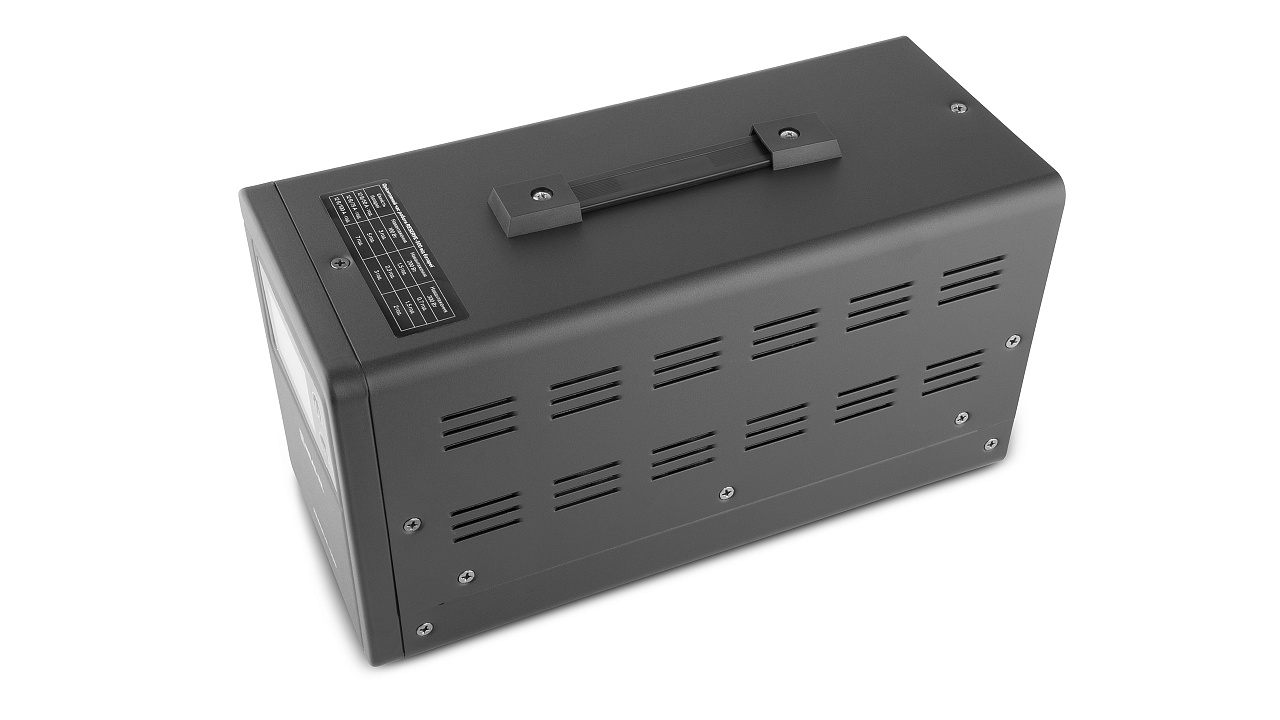

  • Case material metal
  • Dimensions, mm 140×180×320
  • Weight, kg 5.1
  • Color black
