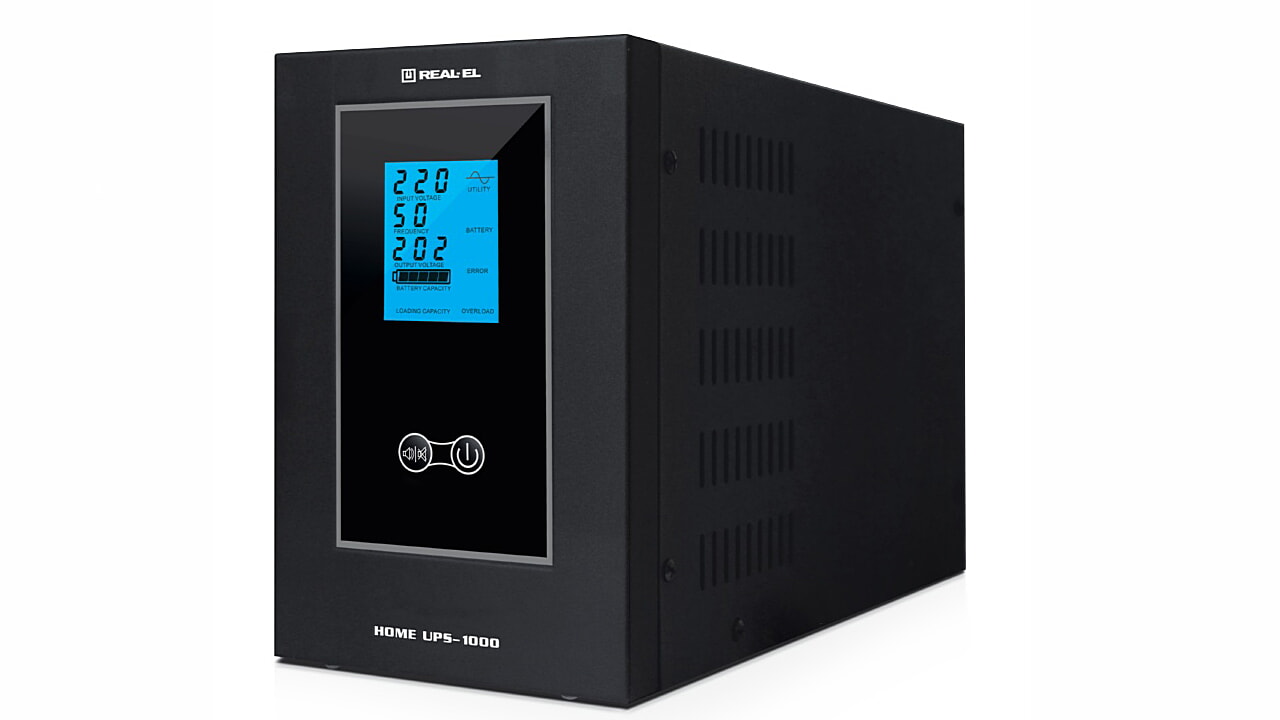

HOME UPS-1000
The REAL-EL HOME UPS-1000 line-interactive UPS of continuous action with long backup time for external batteries is designed to operate with lead-acid maintenance-free 12 V batteries of AGM type. Principle of their operation is based on the transformation of direct current of external batteries to alternating current. Current waveform at the output is the regular sinusoidal wave.
HOME UPS-1000
The REAL-EL HOME UPS-1000 line-interactive UPS of continuous action with long backup time for external batteries is designed to operate with lead-acid maintenance-free 12 V batteries of AGM type. Principle of their operation is based on the transformation of direct current of external batteries to alternating current. Current waveform at the output is the regular sinusoidal wave.
  • Features
  • Specifications
  • Support
  • Continuous action with prolonged back-up time
  • Built-in automatic voltage regulator
  • Regular sinusoidal wave of output voltage
  • Microprocessor control
  • Protection against short circuit in connected load to UPS, as well as against overload
  • Protection against overvoltage or undervoltage in the mains
  • IP-20 ingress protection
  • Self-diagnosis after switching on
  • Indication of operation modes on LCD display
  • Mode switchover time < 4 msec
  • Automatic start function
  • Low noise level
UPS type line-interactive of continuous action with long backup time
Type of load household and industrial equipment
Total power, VА 1000
Active power, W 600
Maximum load, W 600
Allowable overload of the rated power, % 110
Input voltage level, V ~150 – 275
Output voltage level, V ~220 ± 10 %
Output voltage waveform pure sinusoid
Built-in AVR available
Input frequency, Hz 50
Output frequency, Hz 50
Number of phases 1

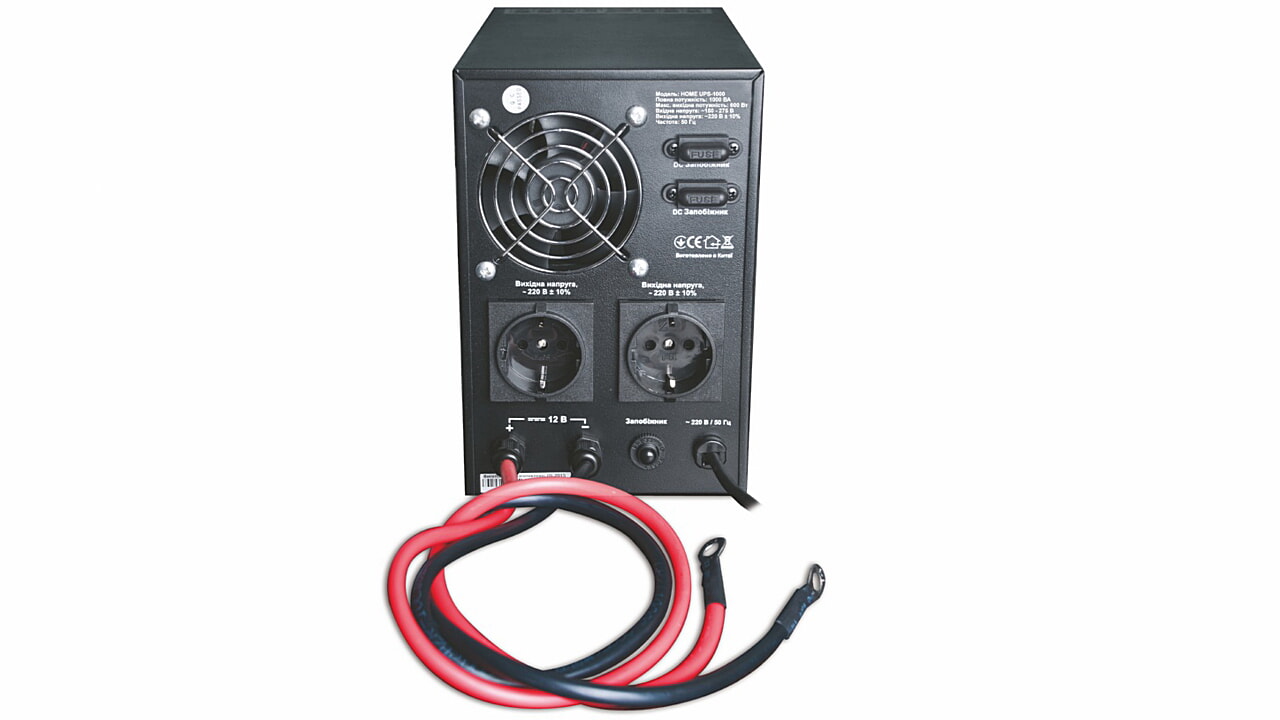

Input terminals 1 × СЕЕ7/7
Input socket 2 × СЕЕ7/4
Output sockets terminals to connect battery
Protection against high voltage/undervoltage, overload, short circuit (AVR operation mode); against discharge, overload, short circuit (battery operation mode)
Overload protection acting, % 120 %
Beeps low battery charge, overload, error
Battery type non-serviceable leakproof lead-acid
Typical switching time, ms < 4
Battery voltage, V 12
Indication input/output voltage, input frequency, battery capacity balance, load rate, operation mode, battery charge, overload, errors
Cooling type convective; by fan
Operation mode continuous, long-lasting
Noise level, dB < 45
Efficiency, % 98 (AVR operation mode); 60 (inverter mode)
Input fuse, A 7
DC fuse, A 2 × 40
Fuse 3 А
Environmental temperature, °С -5 ~ +40
Relative humidity, % 10 ~ 90, without condensation
Case material metal
Dimensions, mm 338 × 142 × 211
Weight, kg 11.3
Color black
Life time 5 years
