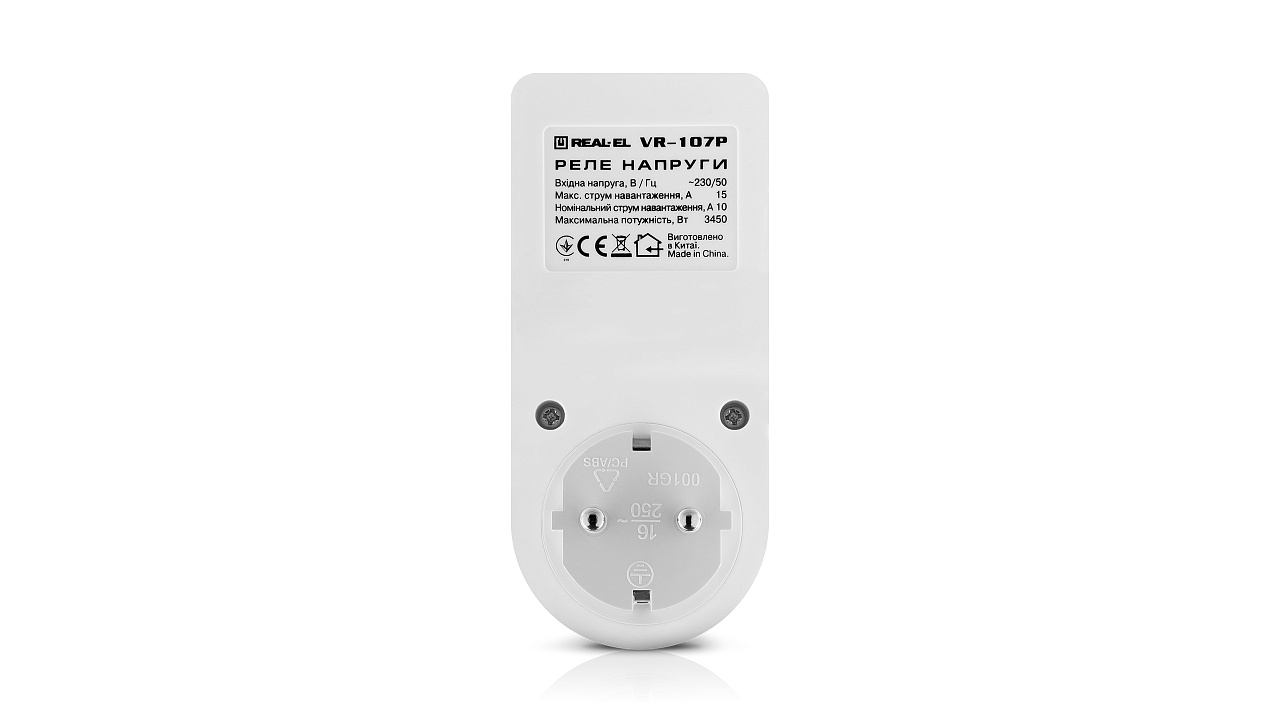

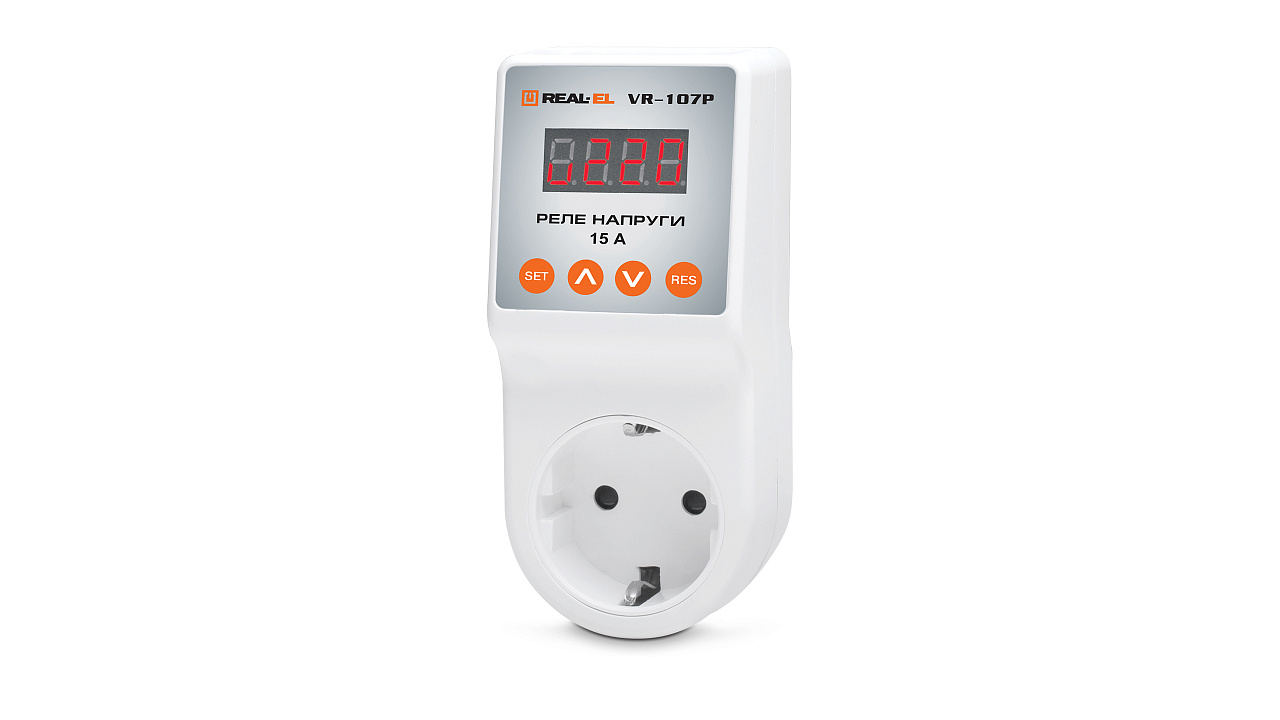

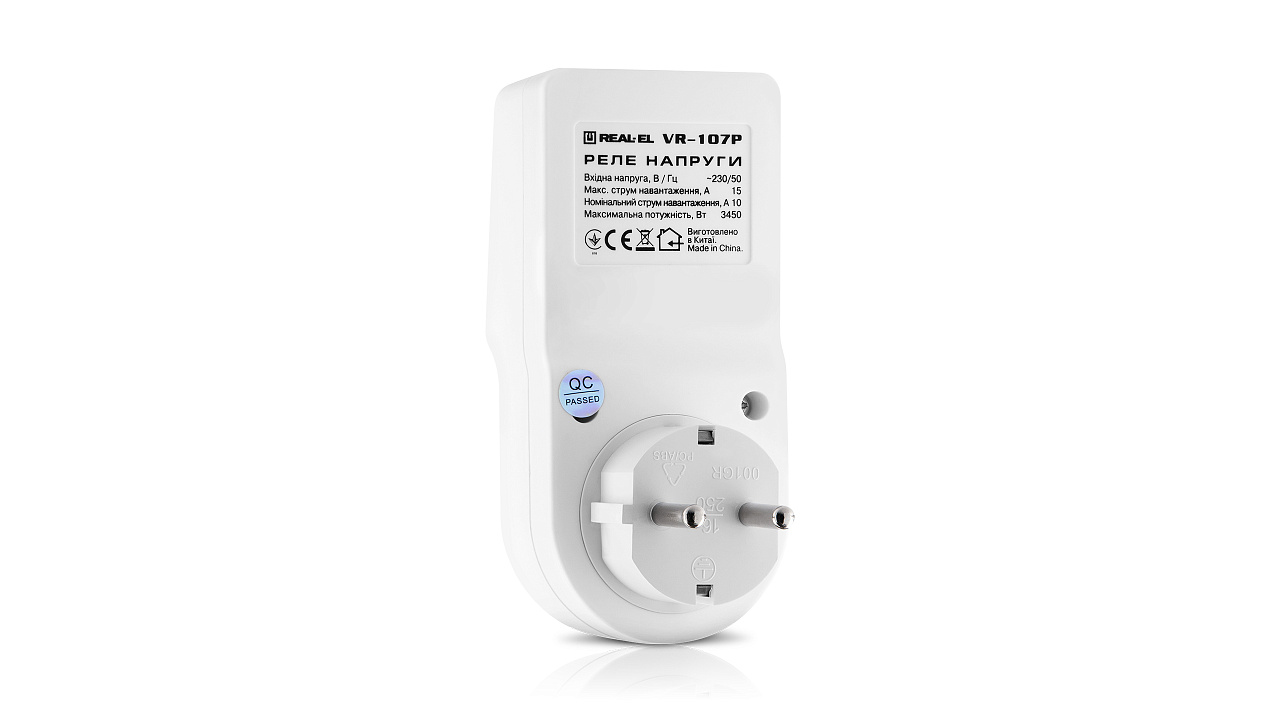

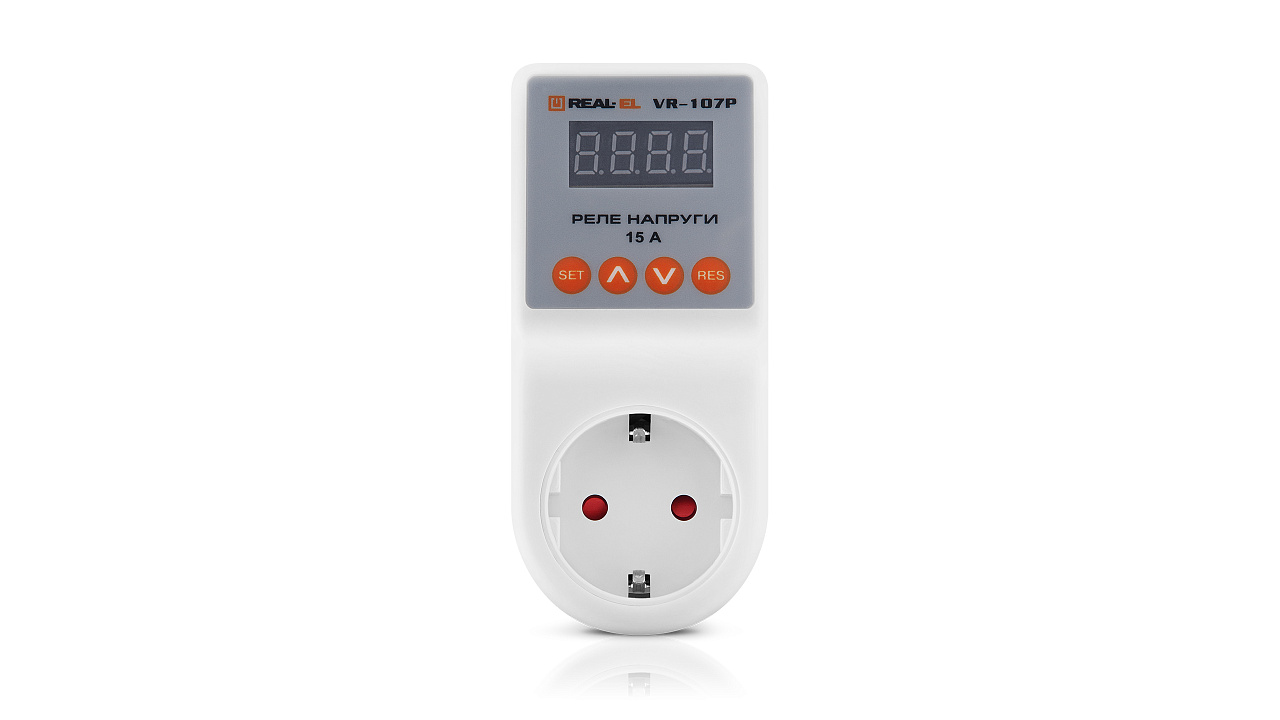

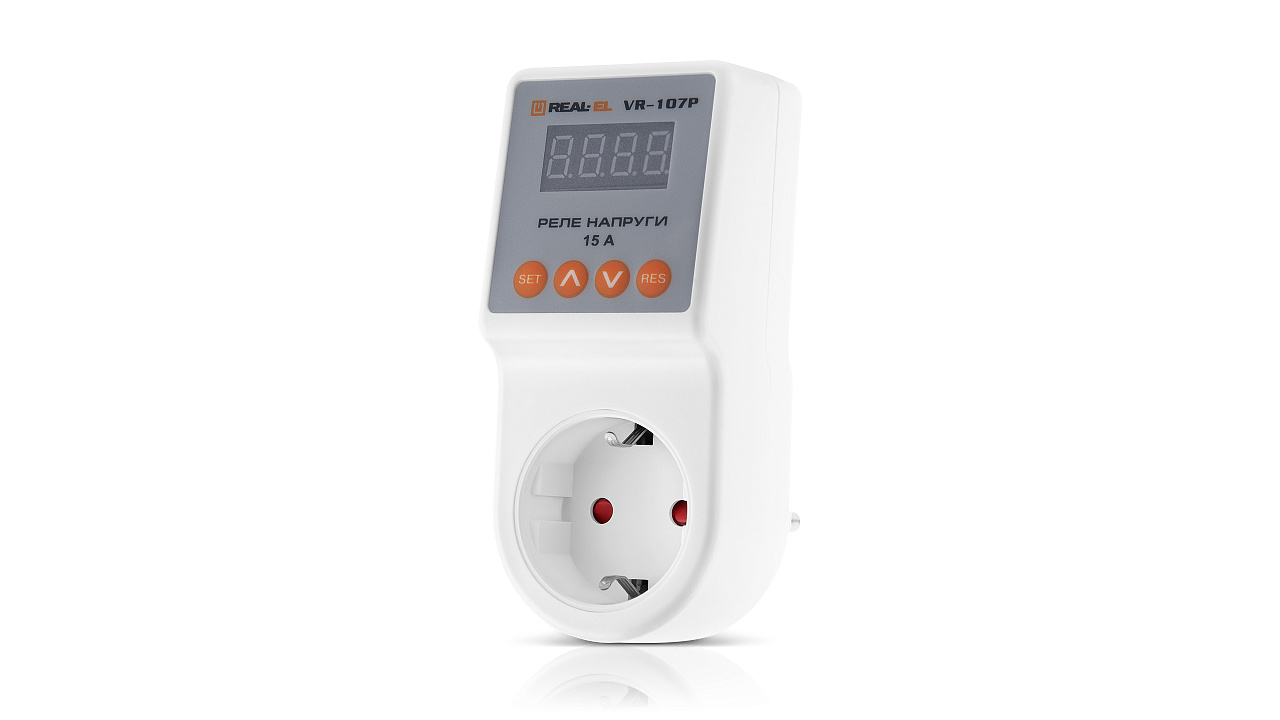

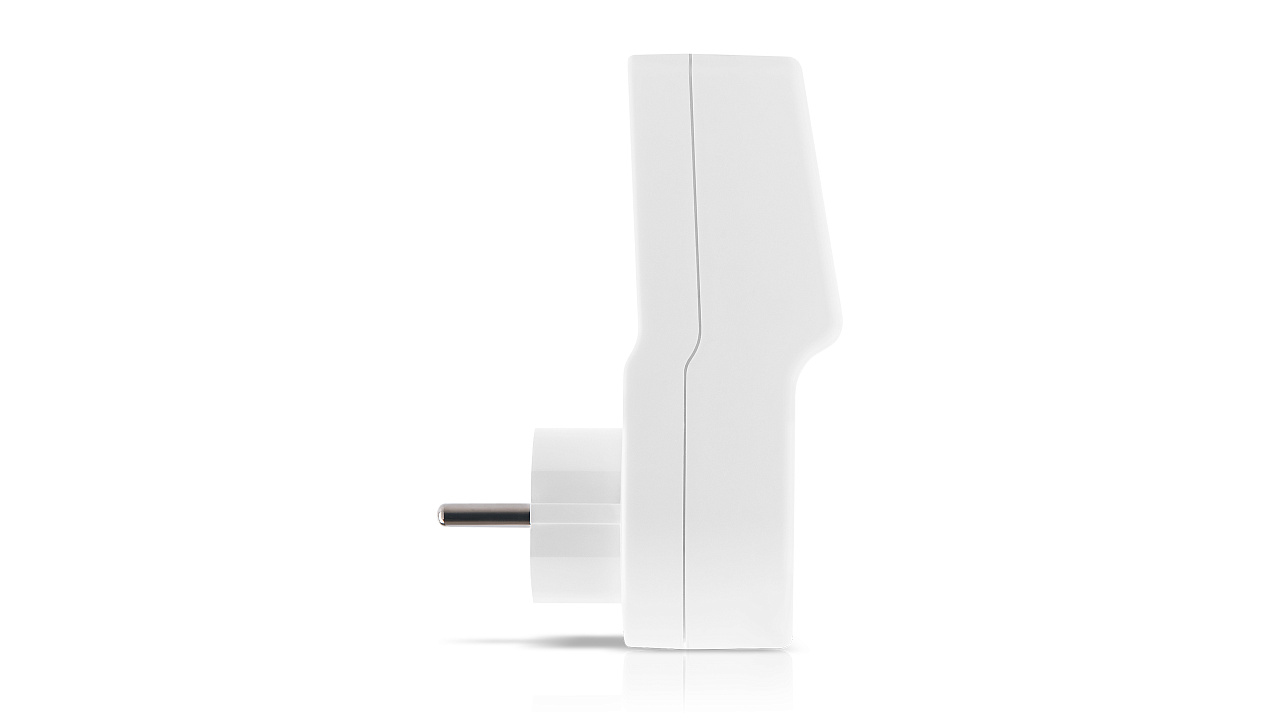

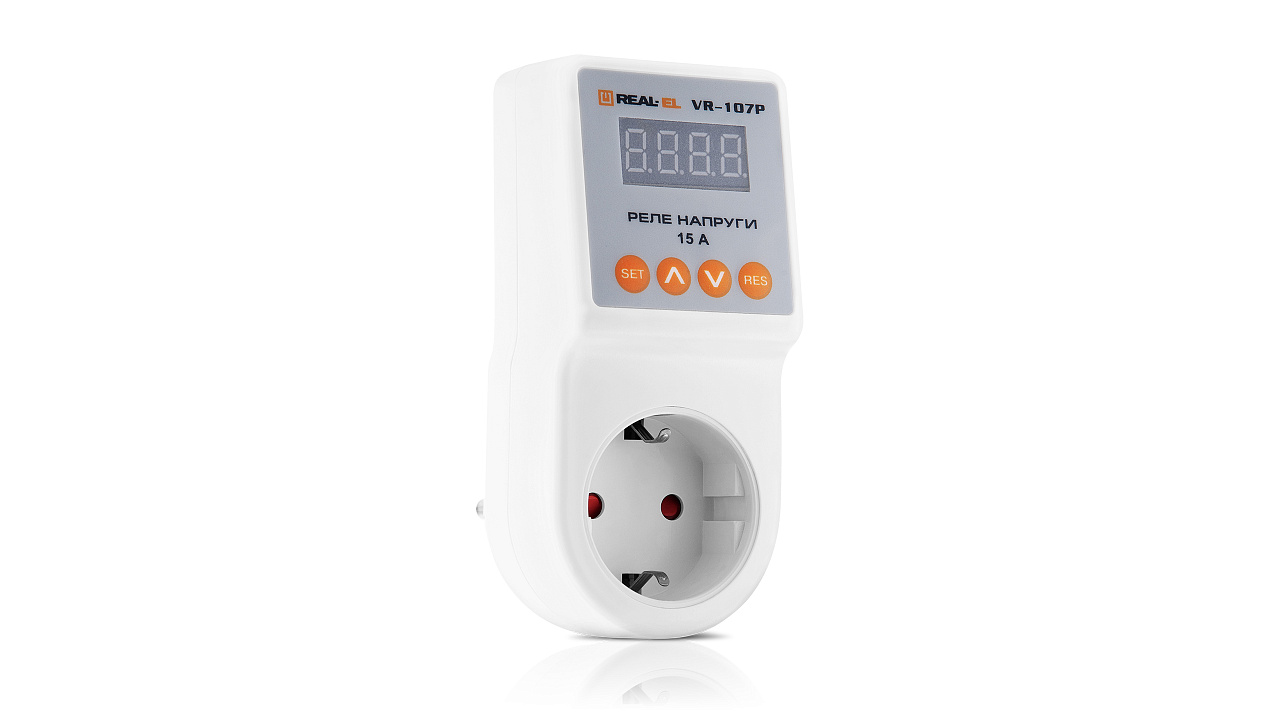

The REAL-EL VR-107P voltage relay is designed to protect household appliances (refrigerators, washing machines, PCs, video and audio equipment, etc.) connected to it against inadmissible supply voltage deflections and impulse noises in the power supply network.
The REAL-EL VR-107P voltage relay is designed to protect household appliances (refrigerators, washing machines, PCs, video and audio equipment, etc.) connected to it against inadmissible supply voltage deflections and impulse noises in the power supply network.
- Features
- Specifications
- Support
- Protection of connected devices against voltage swings in the power supply network
- Protection of connected devices against impulse noises in the power supply network
- Restarting delay
- Programmable disconnection thresholds and turn-on delay time
- Nonvolatile memory of programmed settings
- Multifunctional LED display
- Protective shutters and grounding contacts for safe operation
- Shockproof flame-retardant case
Rated voltage, V
~230
Measured voltage, V
100 – 300
Operating frequency, Hz
50
Maximum load power, W
3300
Load peak current, А
15
Maximum energy absorption of pulse interference, J
125
Protection actuation time, sec
not more than 0.3
Turn-on delay time, sec
5 – 999 (1 sec step)
Operation threshold to decrease power voltage, V
150 – 210 (1 V step)
Operation threshold to increase power voltage, V
230 – 265 (1 V step)
Case material
ABS plastic
Dimensions, mm
53 × 116 × 80
Color
white
Life time
2 years
