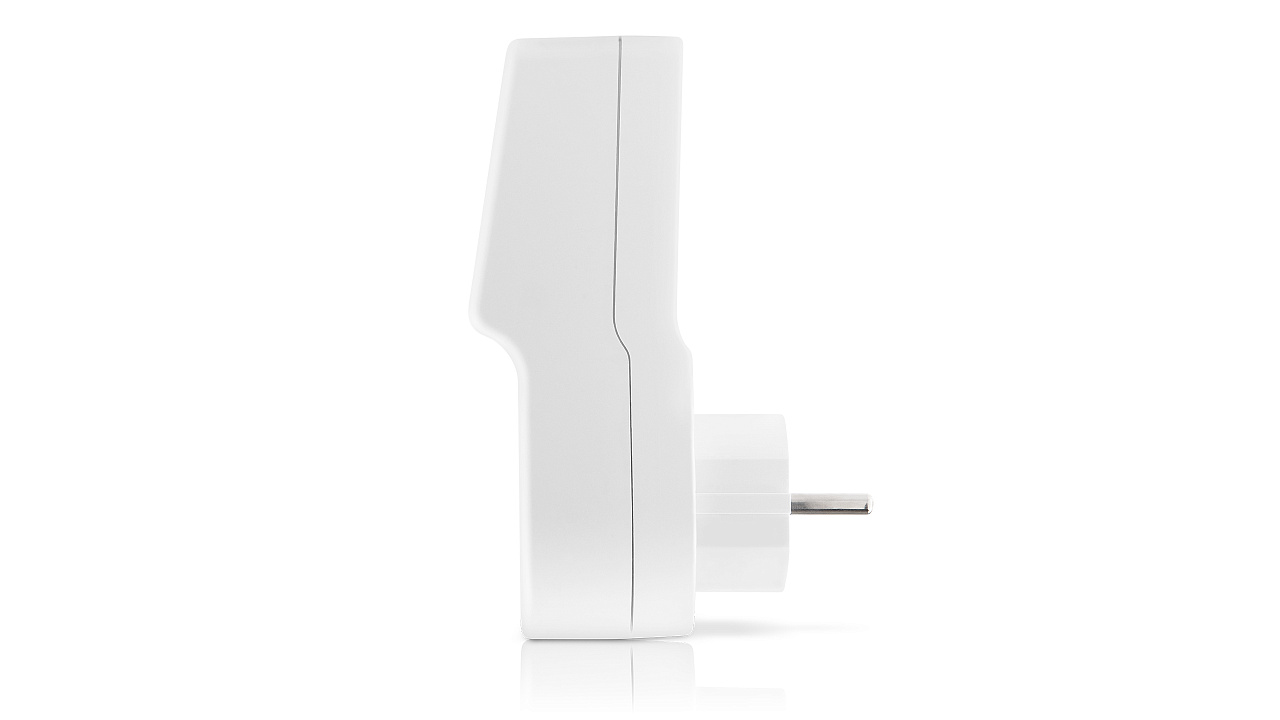

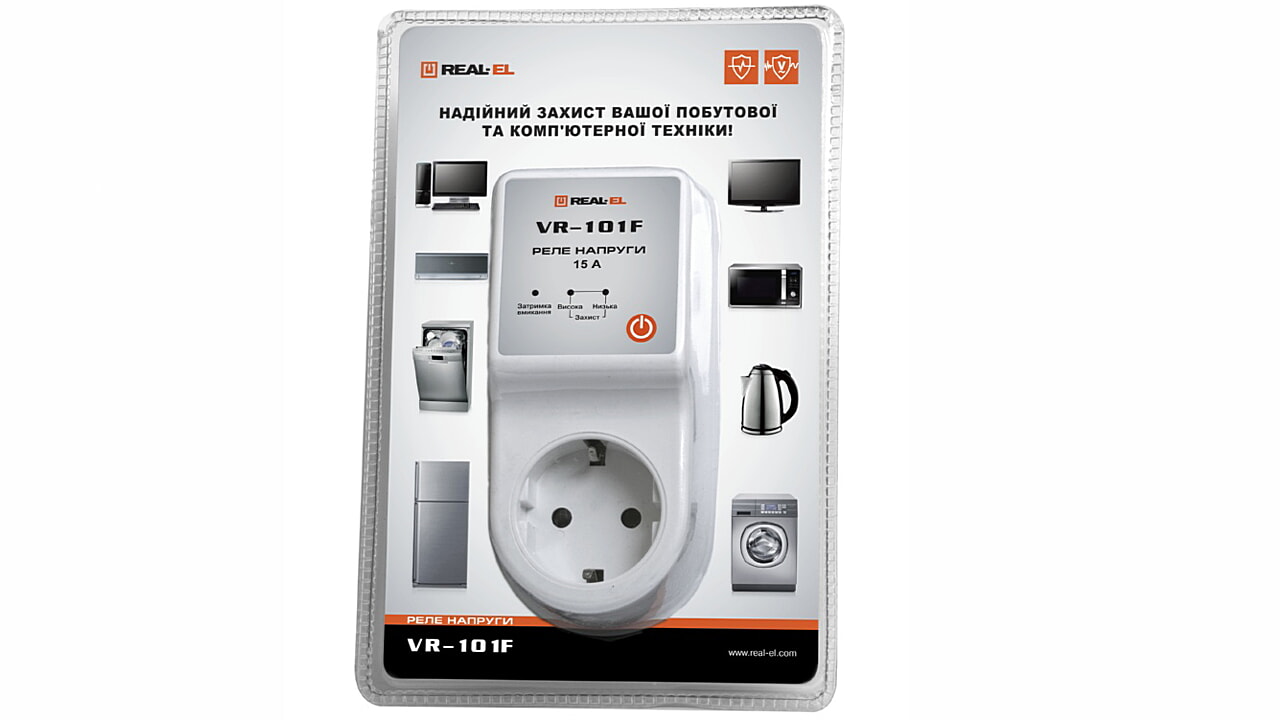

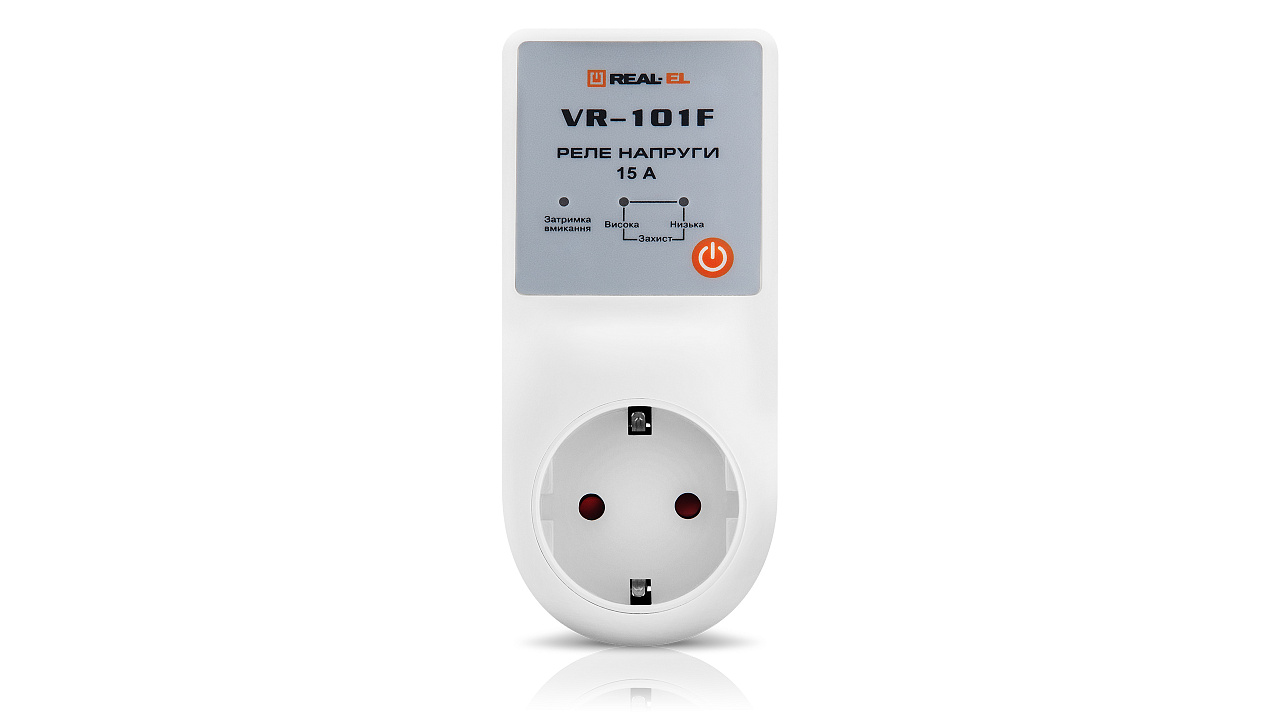

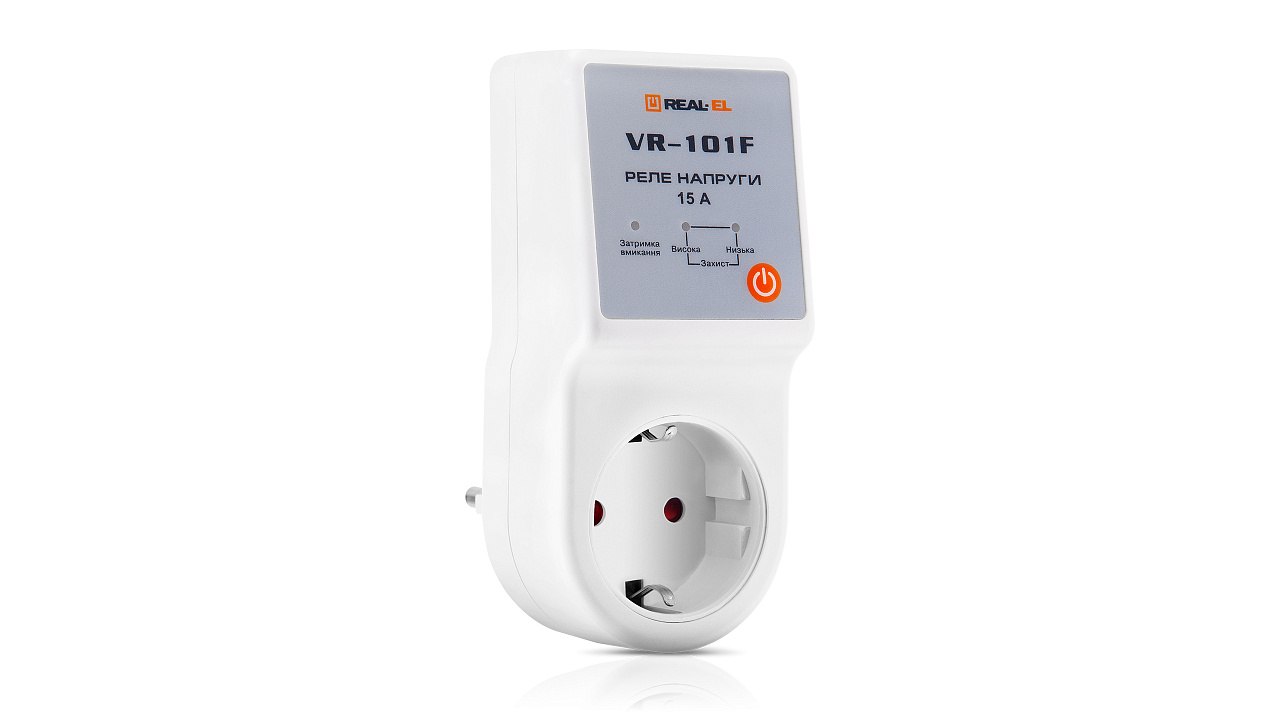

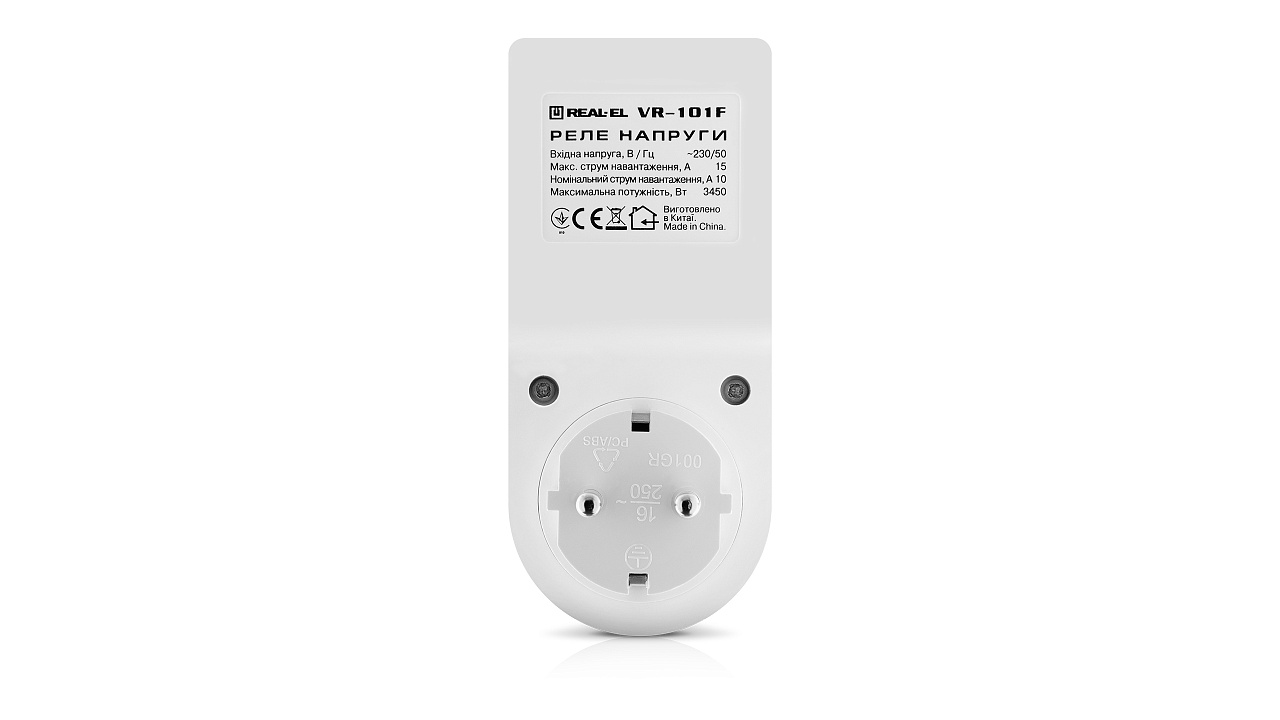

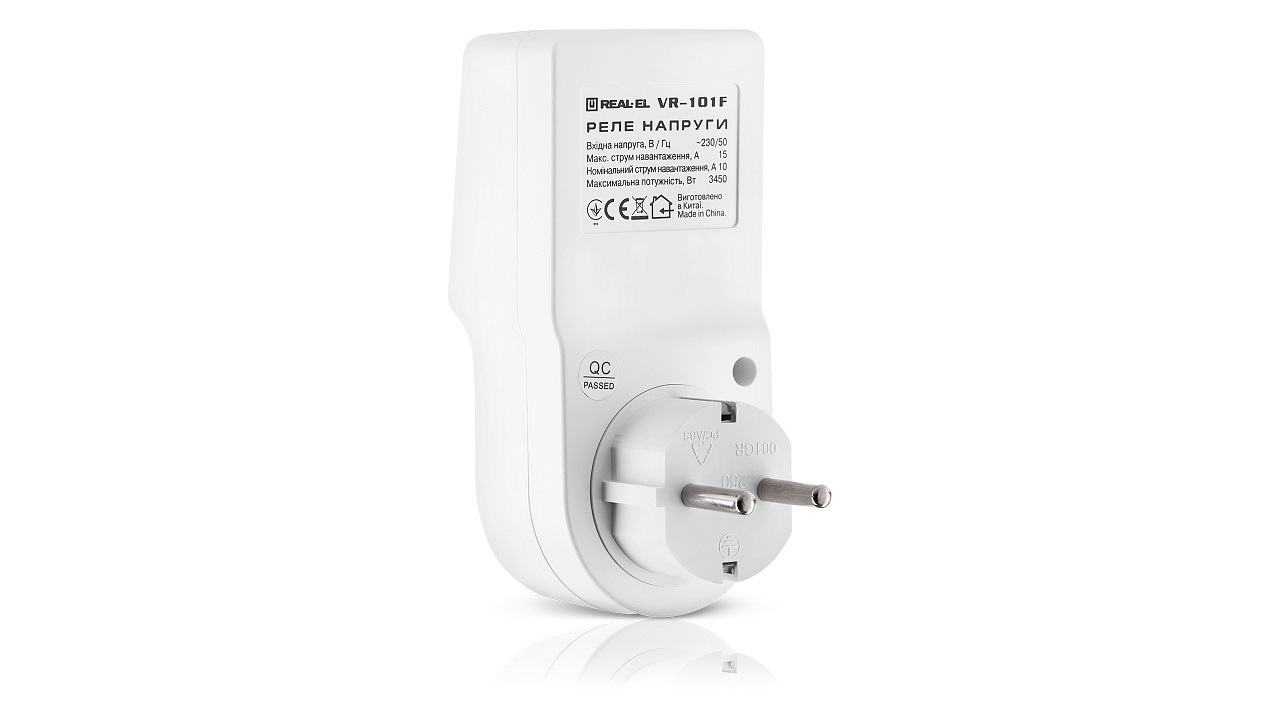

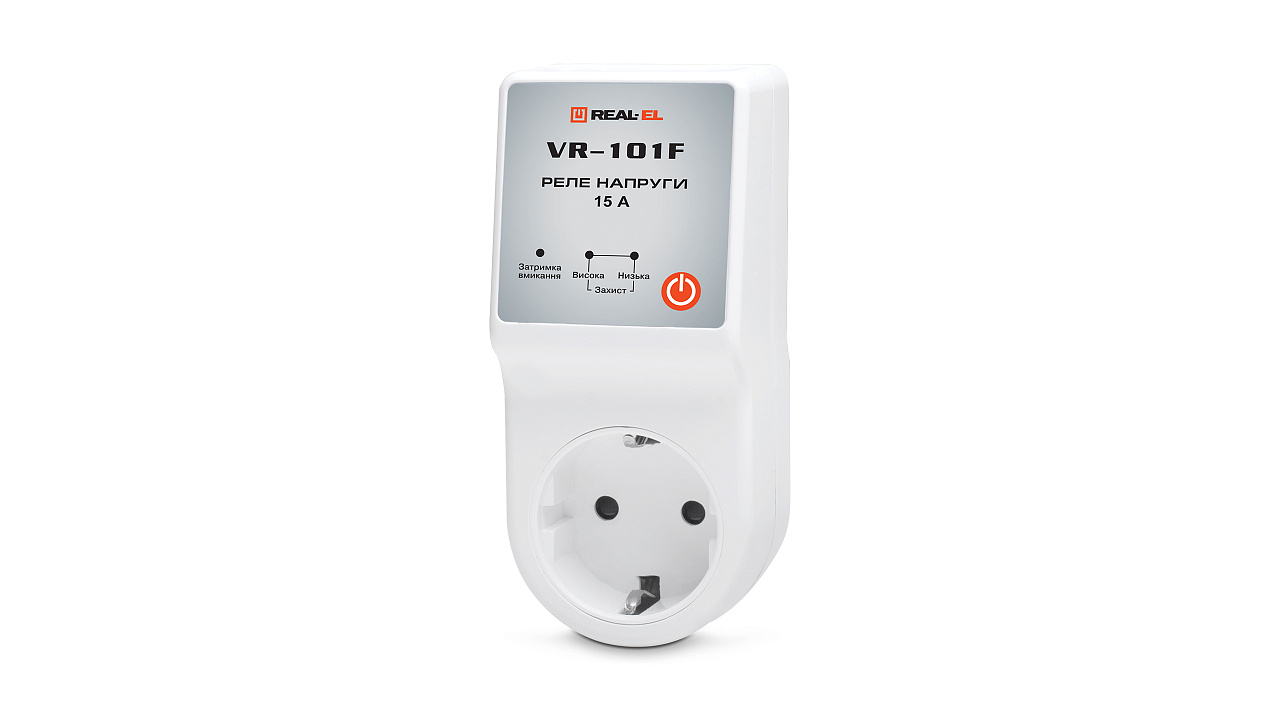

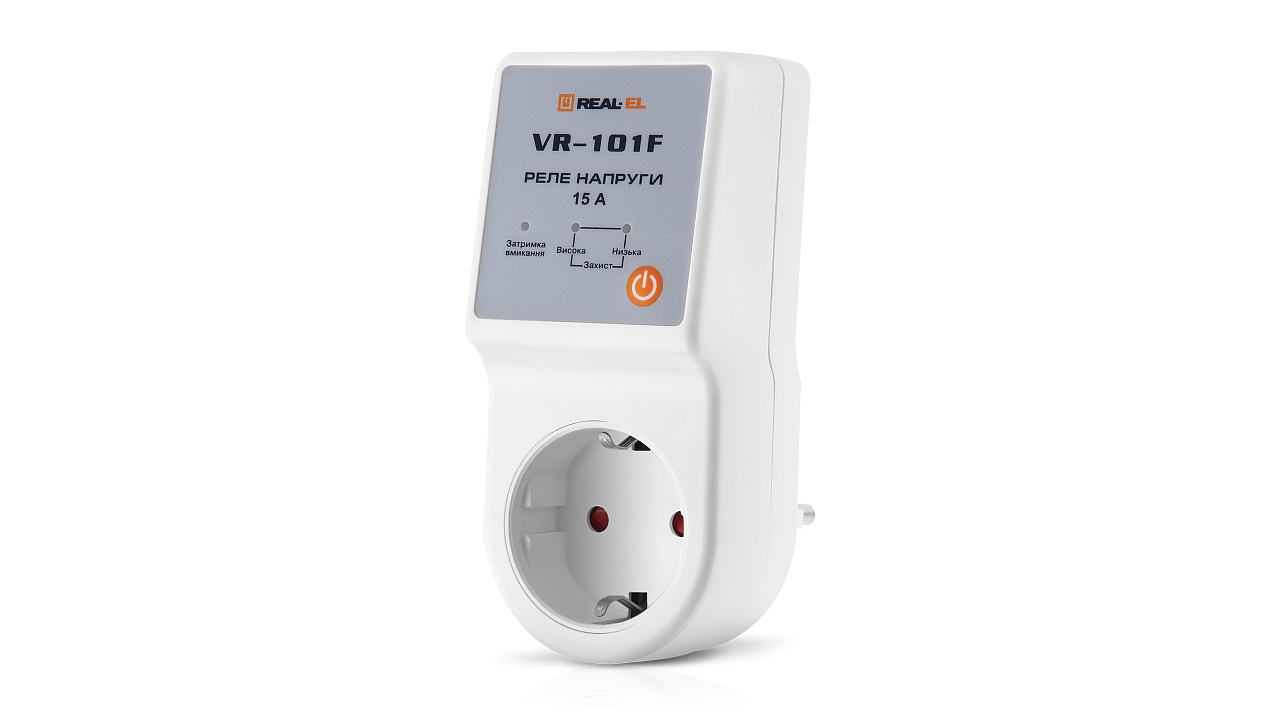

The REAL-EL VR-101F voltage relay is designed to protect household appliances (refrigerators, washing machines, PCs, video and audio equipment, etc.) connected to it against inadmissible voltage fluctuations in the power supply network.
The REAL-EL VR-101F voltage relay is designed to protect household appliances (refrigerators, washing machines, PCs, video and audio equipment, etc.) connected to it against inadmissible voltage fluctuations in the power supply network.
- Features
- Specifications
- Support
- Protection of household appliances against voltage swings
- Restarting delay for connected equipment protection
- Fixed protection parameters for operation simplicity
- Voltage relay status indication
- Protective shutters and grounding contacts for safe operation
- Shockproof flame-retardant case
Rated voltage, V
~230
Operating frequency, Hz
50
Maximum load power, W
3300
Load peak current, А
15
Protection actuation time, sec
not more than 0.3
Turn-on delay time, sec
180
Operation threshold to decrease power voltage, V
185 ± 3%
Operation threshold to increase power voltage, V
255 ± 3%
Case material
ABS plastic
Dimensions, mm
54 × 120 × 80
Color
white
Life time
2 years
