RS-PROTECT 505

RS-PROTECT 505

Voltage fluctuations protection pic

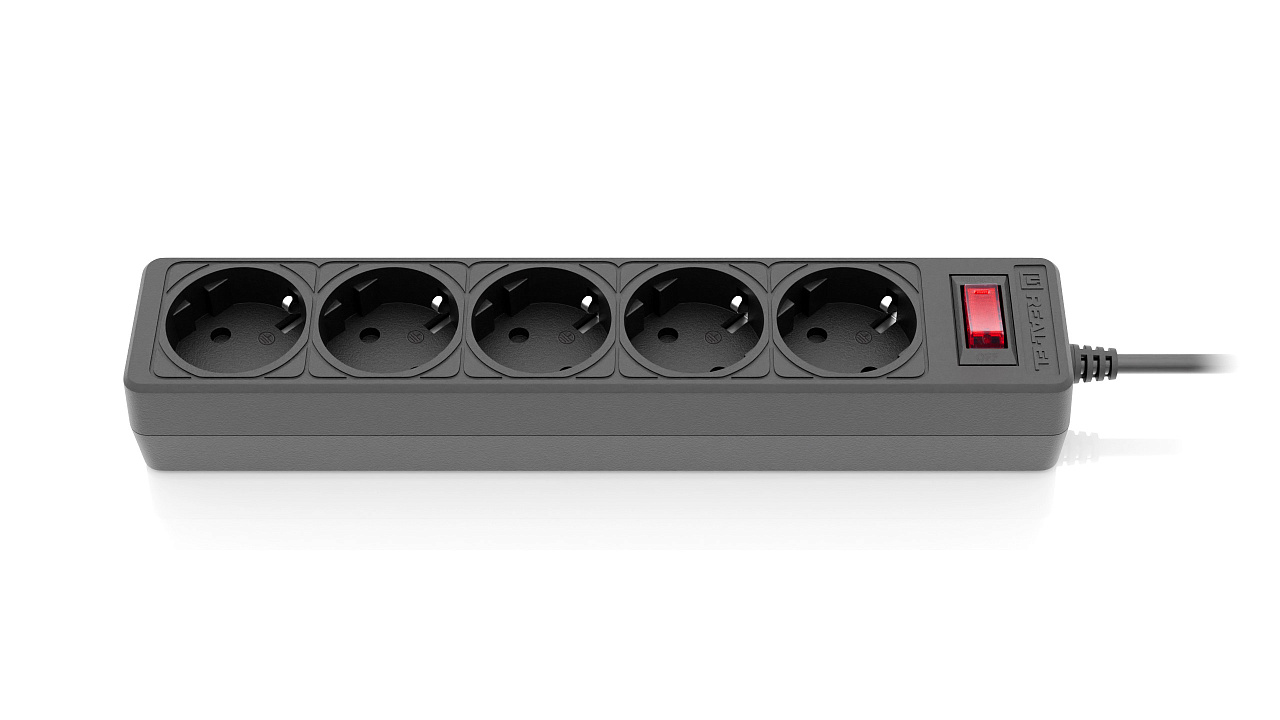

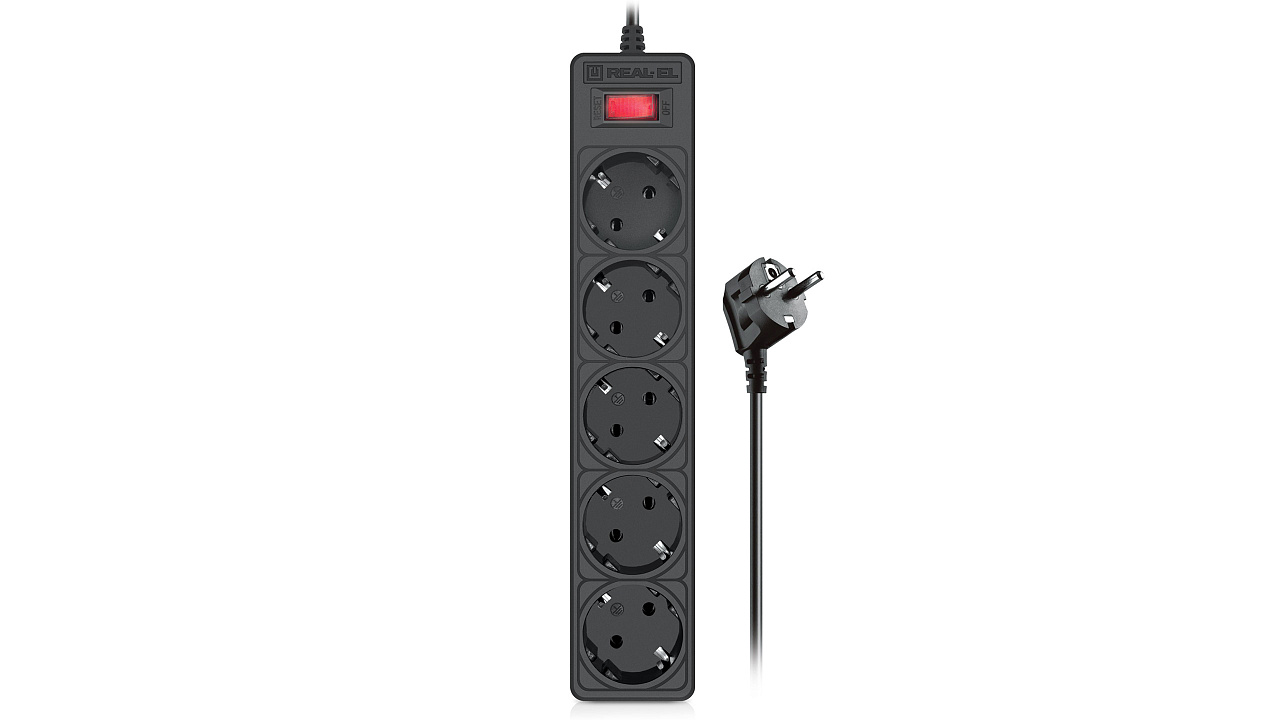

REAL-EL RS-PROTECT 505 — a practical solution for connecting devices at home or in the office.

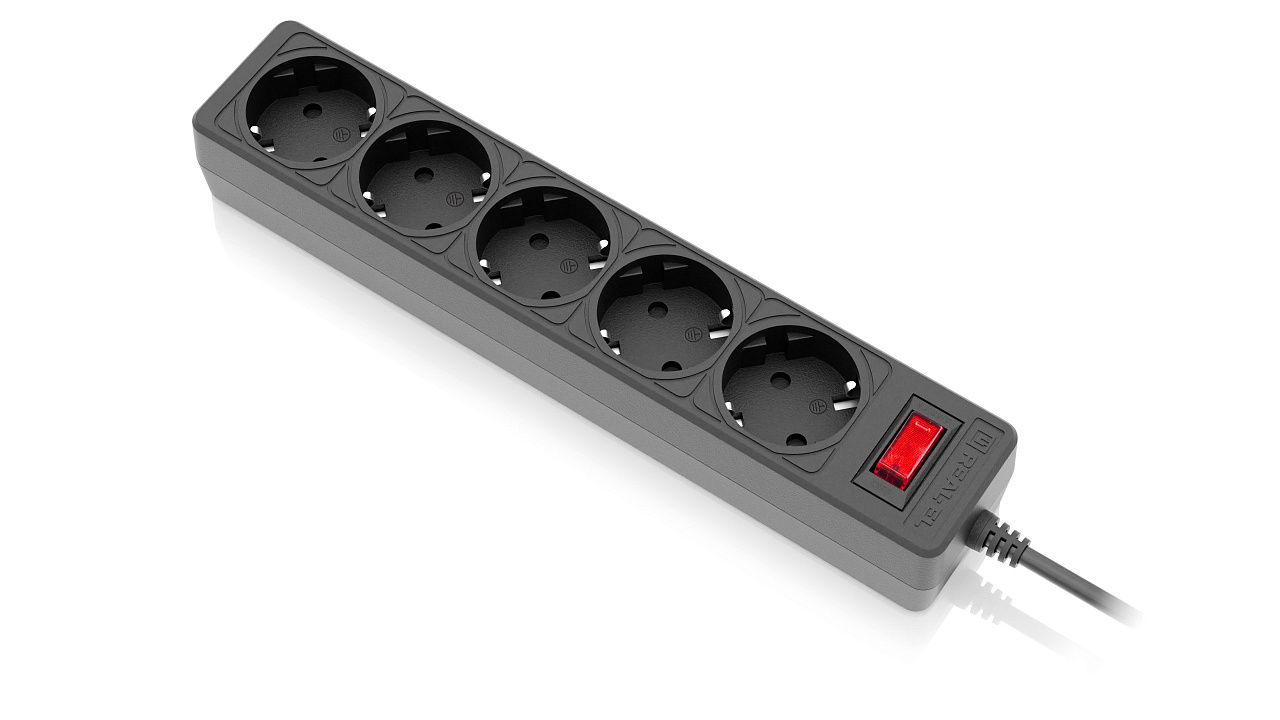

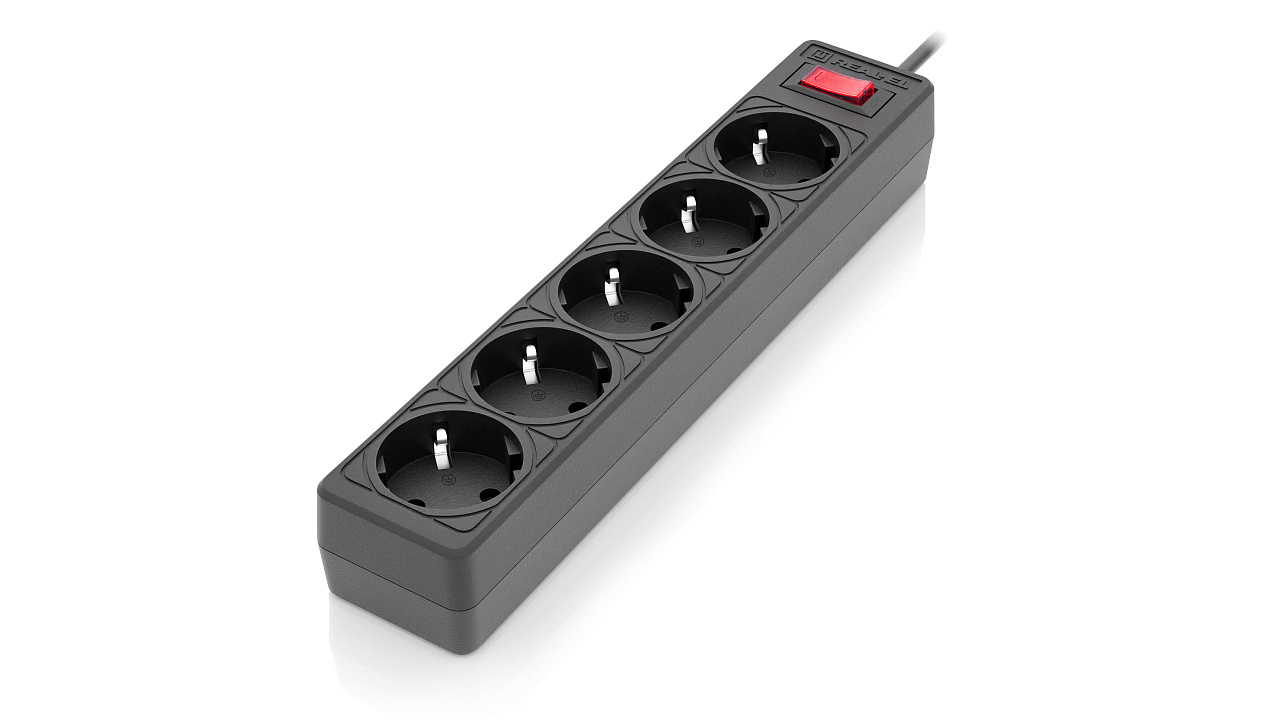

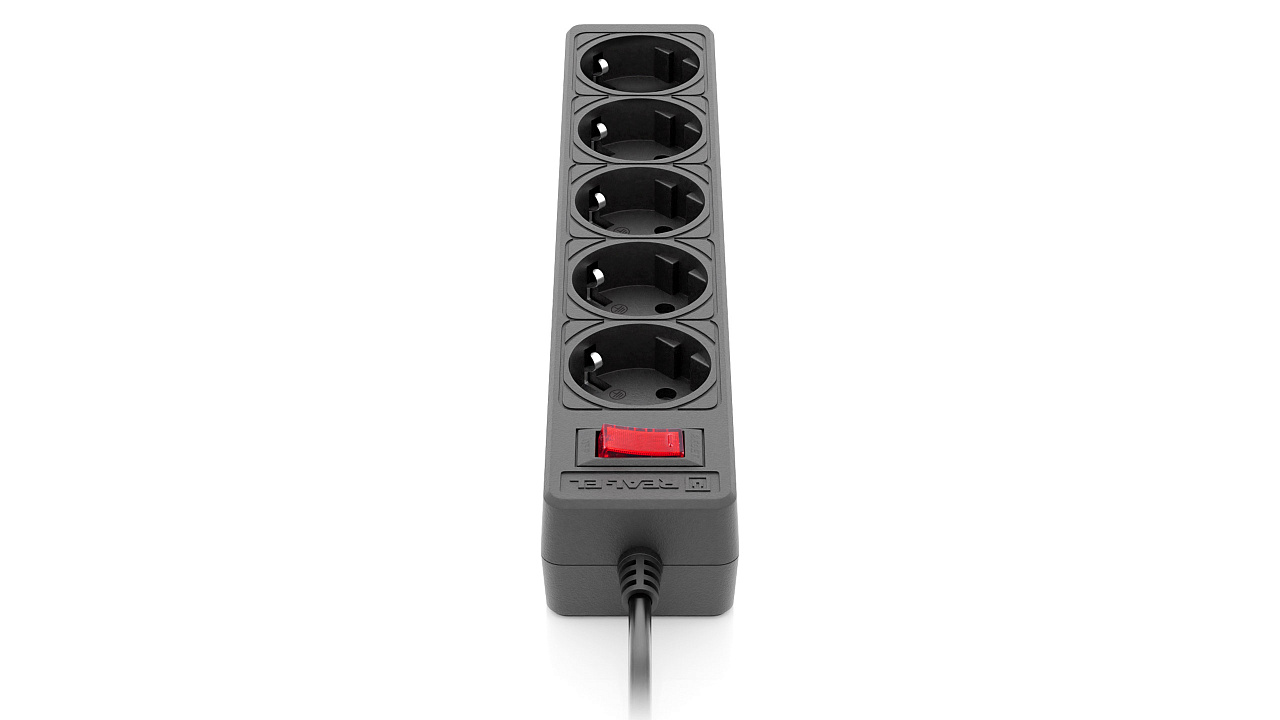

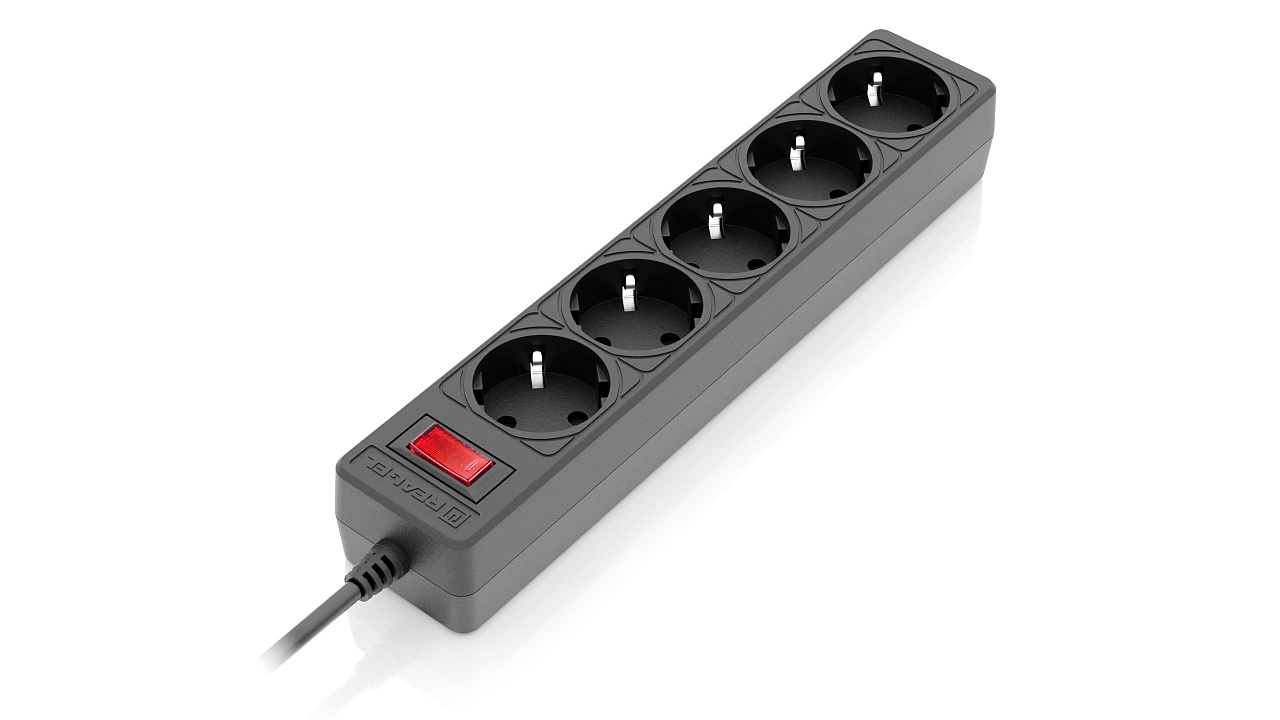

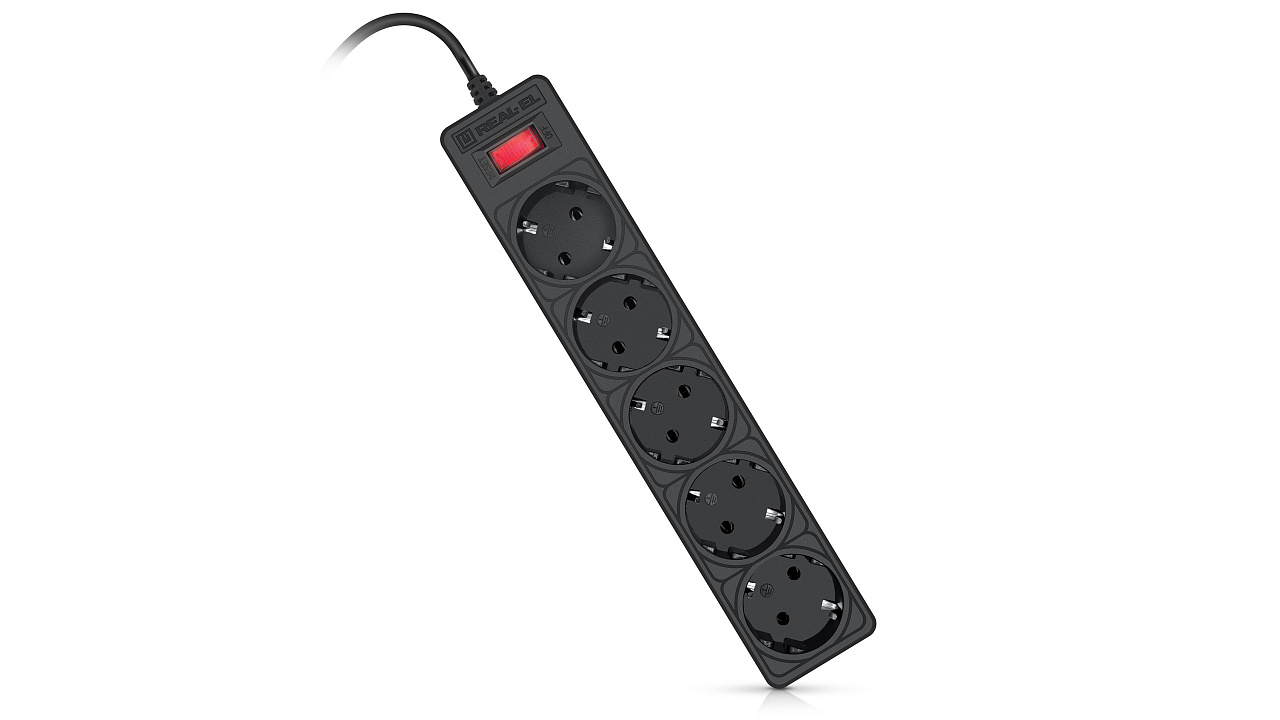

The surge protector extension cord REAL-EL RS-PROTECT 505 is designed for connecting electrical appliances to the mains and organizing power supply in one place. Equipped with 5 universal sockets with grounding for simultaneous connection of multiple devices.
The model features a built-in resettable automatic fuse that activates in case of overload. The light indicator allows you to monitor the operating status of the device.
The filter supports a total load of up to 2300 W and absorbs impulse interference.

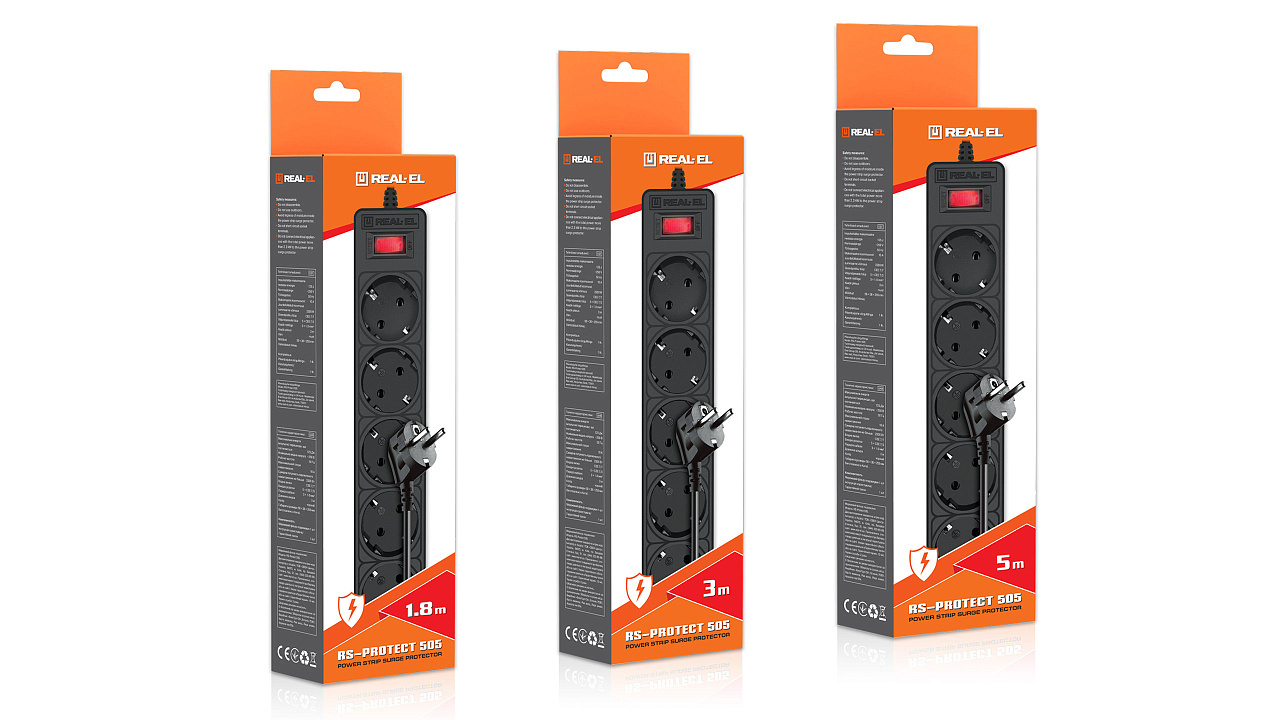

Cable length options of 1.8, 3 or 5 meters are available, as well as the possibility of wall mounting for convenient placement.
REAL-EL RS-PROTECT 505 — convenient and affordable connection and protection for your devices.

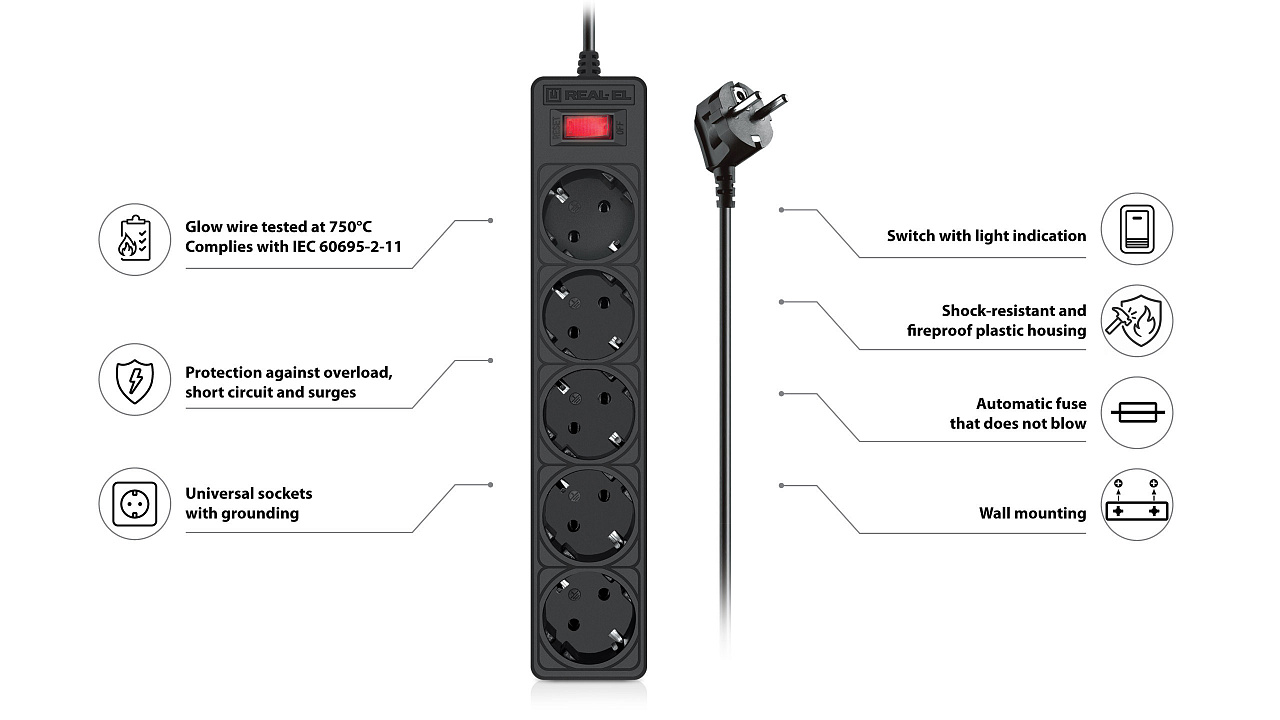

Personalities

    • Overload, short circuit and impulse interference protection
    • Universal sockets with grounding

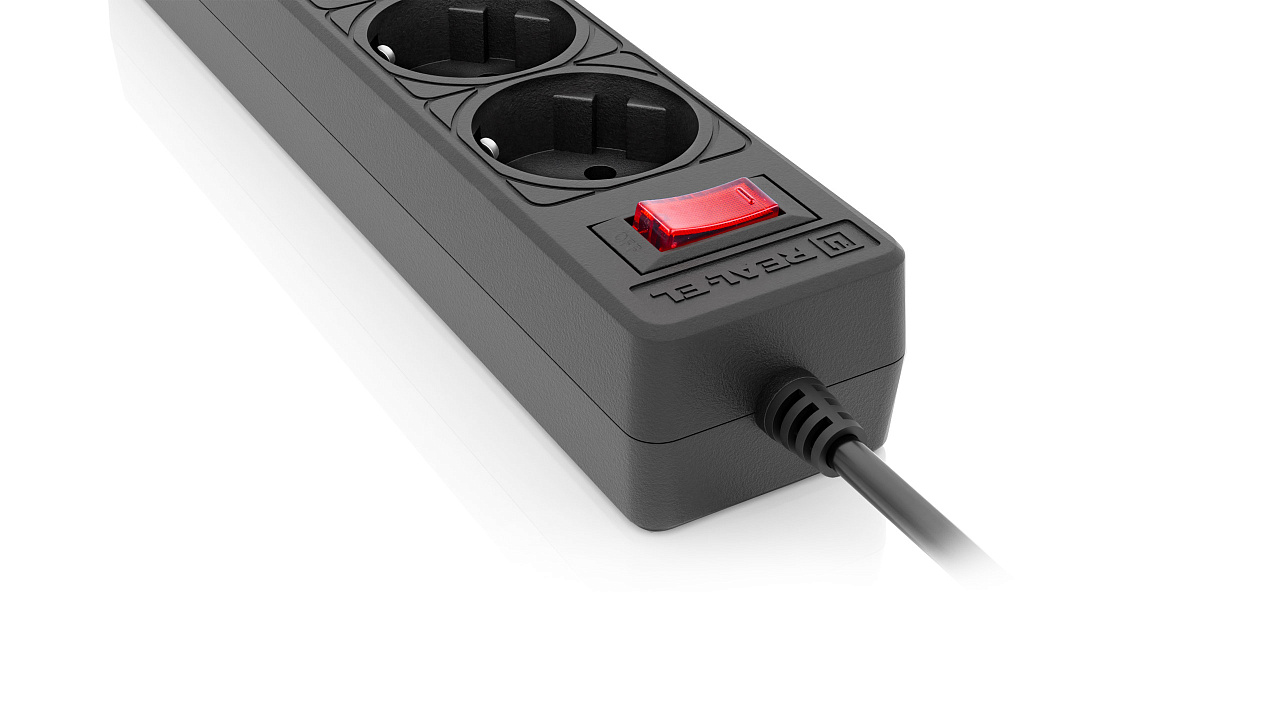

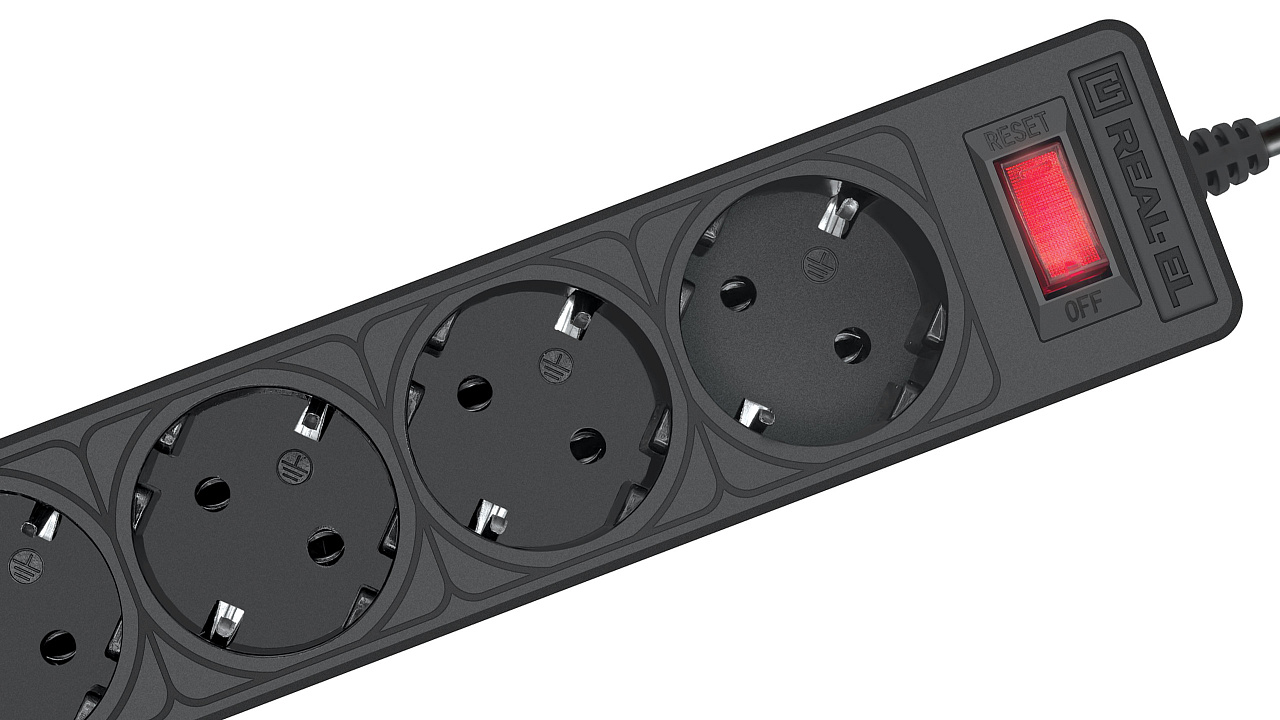

    • Power switch with LED
    • Automatic reset fuse
    • Impact-resistant body
    • Fire-resistant plastic

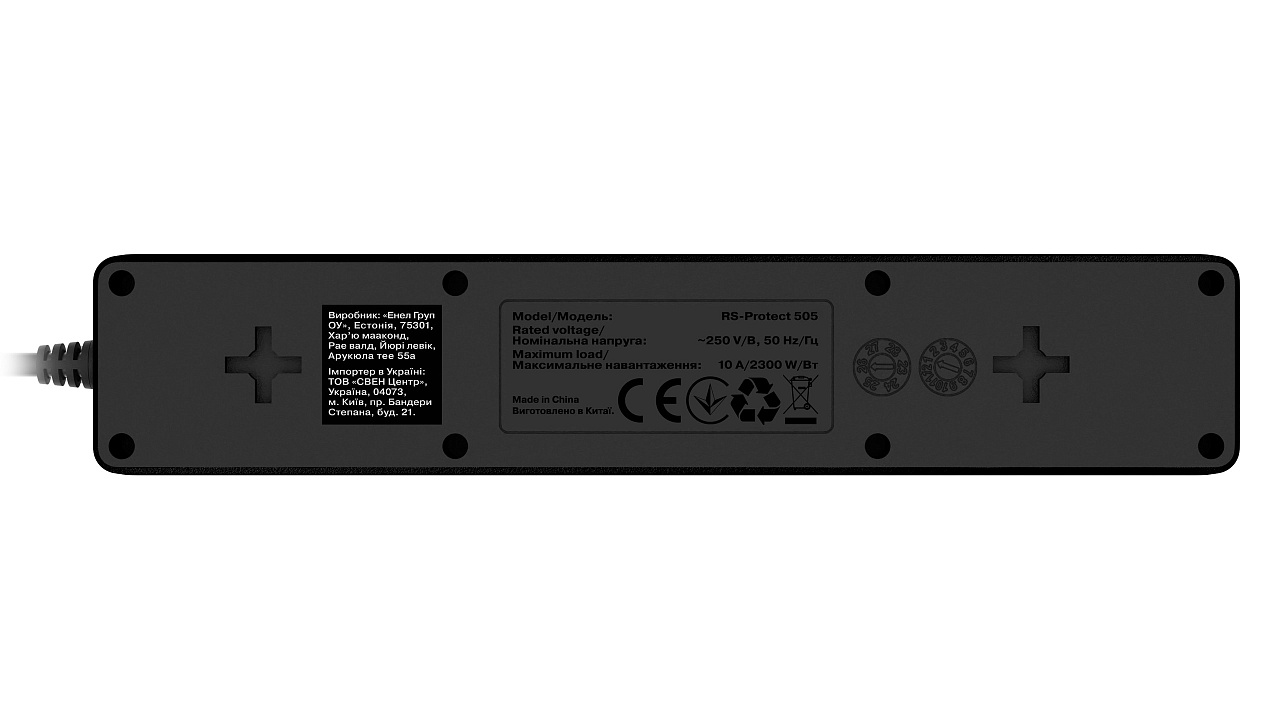

    • Wall-mountable

Technical specifications

  • Rated voltage, V ~250
  • Operating frequency, Hz 50
  • Total power of connected load, W 2300
  • Maximum load current, А 10
  • Maximum energy absorption of pulse interference, J 125
  • Сable, mm² 3 × 1,0
  • Input socket CEE 7/7
  • Output socket 5 × CEE 7/3
  • Cable length, m 1,8; 3,0; 5,0
  • Dimensions, mm 50 × 38 × 255
  • Color black
