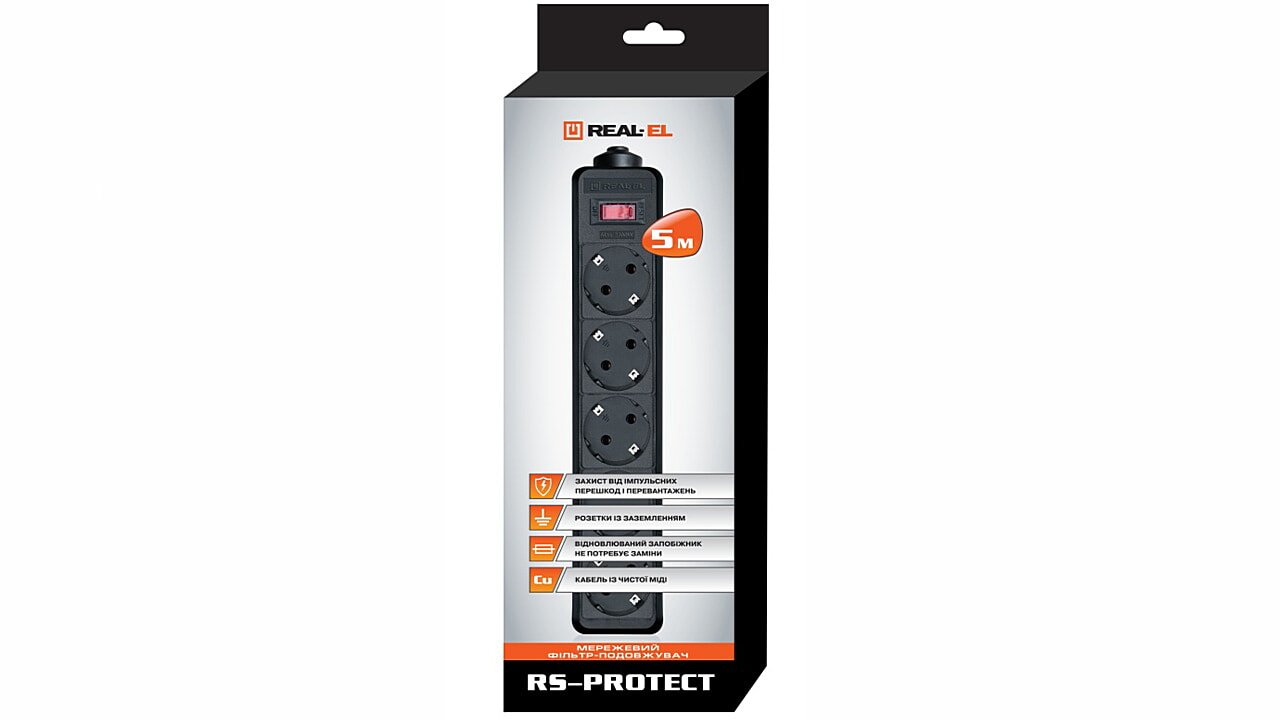

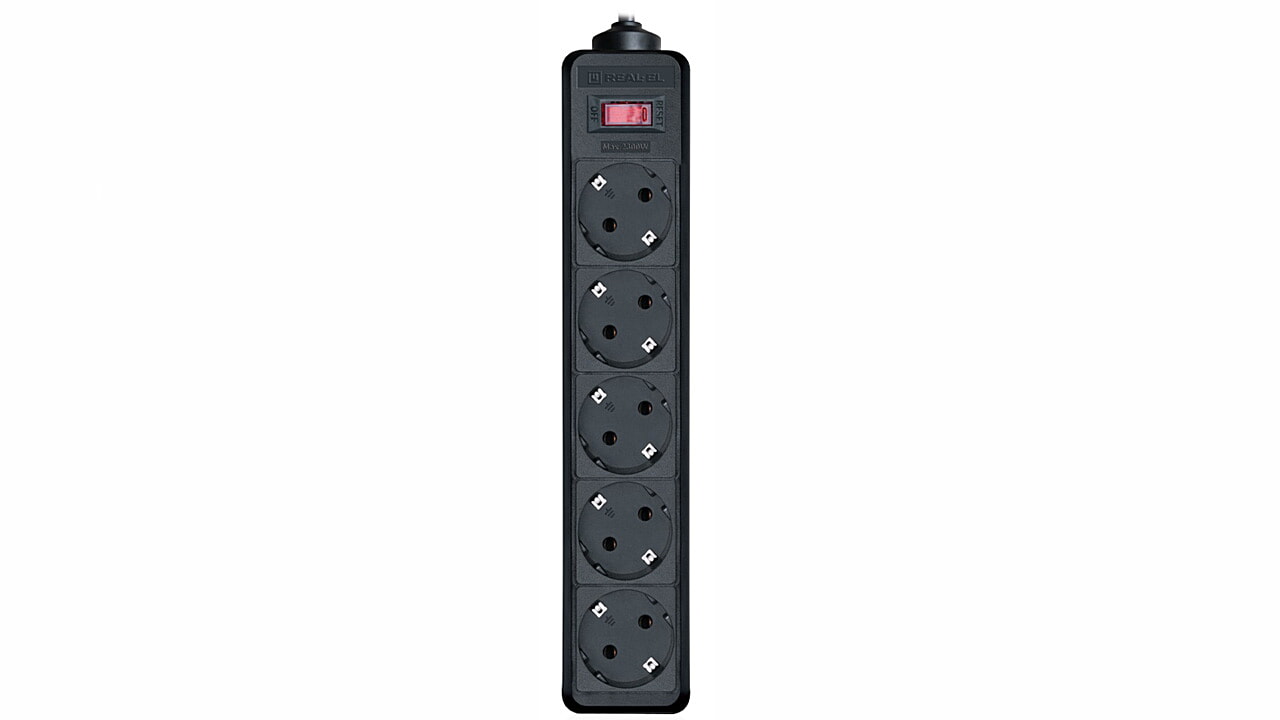

The REAL-EL RS-Protect surge protector is designed for connection of electrical appliances to the electrical network and their protection from an pulse over-voltage.
The REAL-EL RS-Protect surge protector is designed for connection of electrical appliances to the electrical network and their protection from an pulse over-voltage.
- Power switch with built-in fuse and backlight
- Grounded sockets
- Resettable fuse does not require replacement
- Non-flammable high-impact case
- Pure copper cable without alloys
Rated voltage, V
~230
Operating frequency, Hz
50
Total power of connected load, W
2300
Load peak current, А
10
Maximum energy absorption of pulse interference, J
350
Input plug type
1 × CEE 7/7
Output sockets type
5 × CEE 7/3
Master switch of sockets
double-pole power switch
Individual switches of sockets
–
Cable length, m
1.8; 3.0; 5.0; 10.0
Case material
ABS plastic
Dimensions, mm
280 × 45 × 50
Color
black
Life time
2 years
- rs-protect_manual_en.pdf (116 КБ)
