The REAL-EL RS-6 PROTECT M BLACK surge protector is designed for connection of electrical appliances to the electrical network and their protection from an pulse over-voltage.
The REAL-EL RS-6 PROTECT M BLACK surge protector is designed for connection of electrical appliances to the electrical network and their protection from an pulse over-voltage.
- Features
- Specifications
- Support
- Cable made of pure copper without the use of alloys

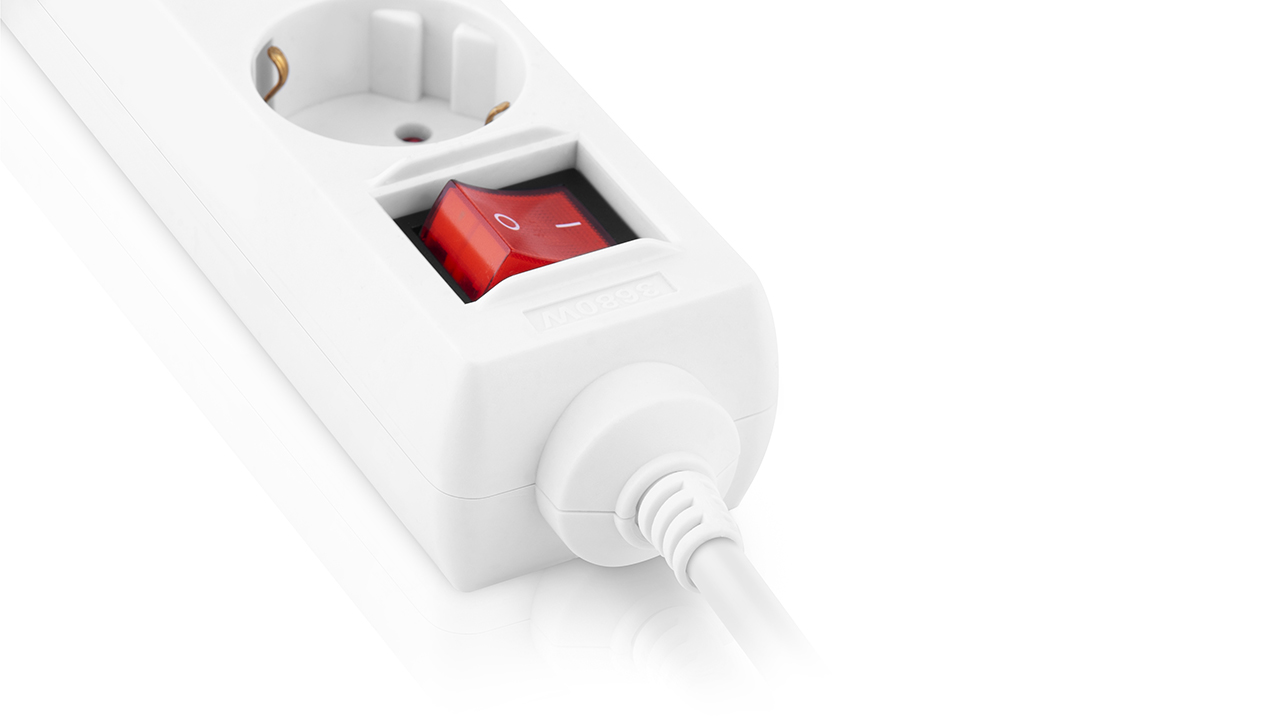

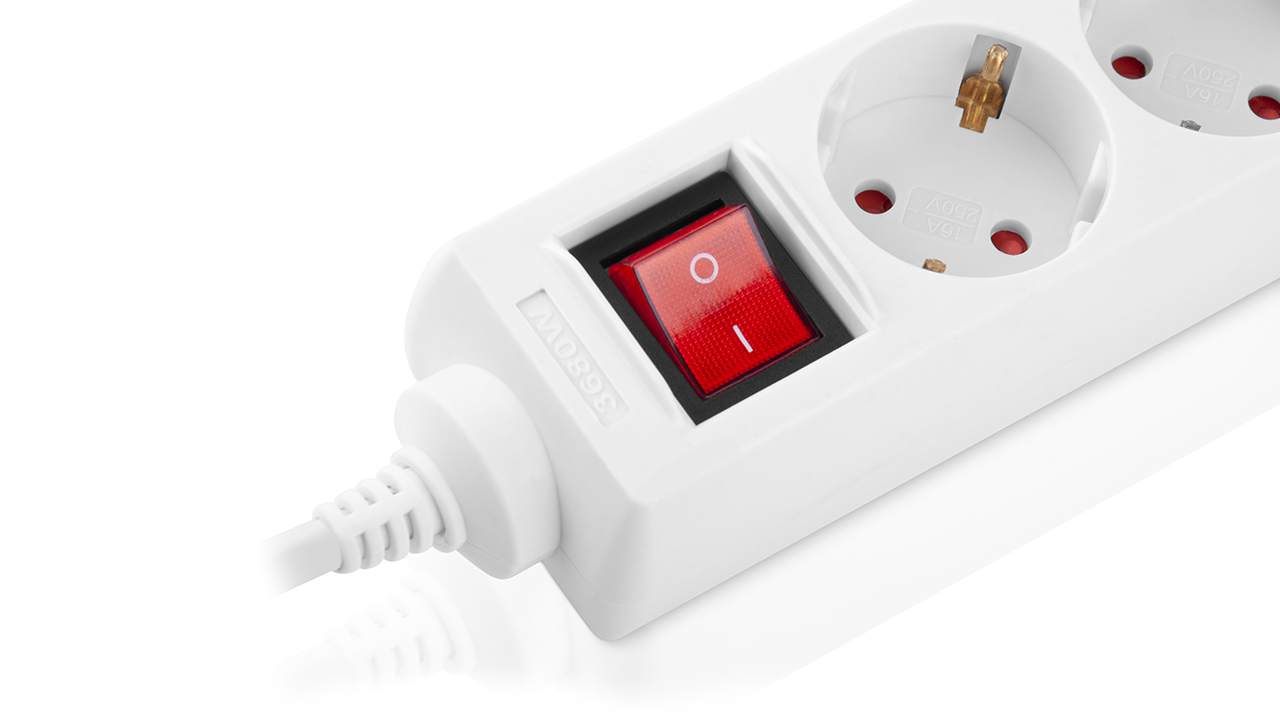

- Double-pole switch

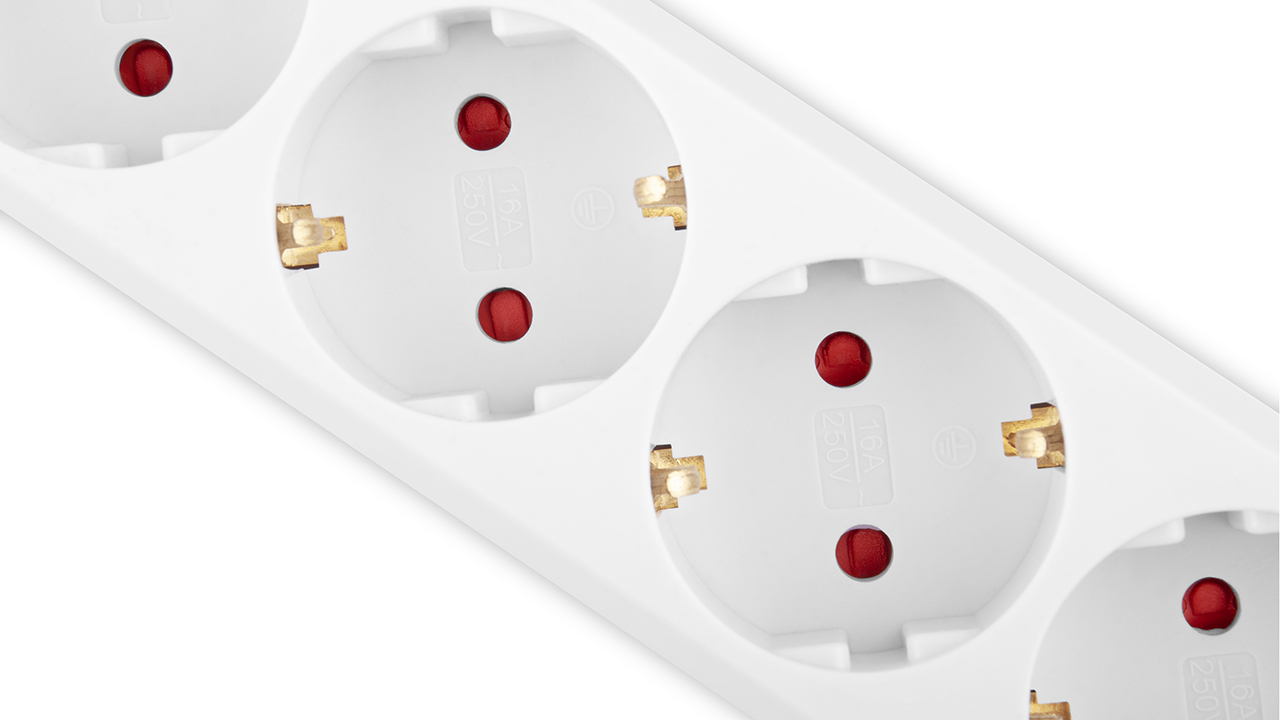

- Sockets with grounding and protective shutters
- Impact-resistant body made of fire-resistant plastic
Rated voltage, V
~250 (max)
Operating frequency, Hz
50
Total power of connected load, W
≤ 3680
Load peak current, А
16
Maximum energy absorption of pulse interference, J
350
Input plug type
1 × CEE 7/7
Output sockets type
6 × CEE 7/3
Master switch of sockets
double-pole power switch
Cable length, m
1.8; 3.0; 5.0
Case material
Fire-resistant plastic
Dimensions, mm
55 × 40 × 320
Color
white
Life time
2 years
- REAL-EL RS-6 Protect M_manual_en.pdf (202 КБ)
