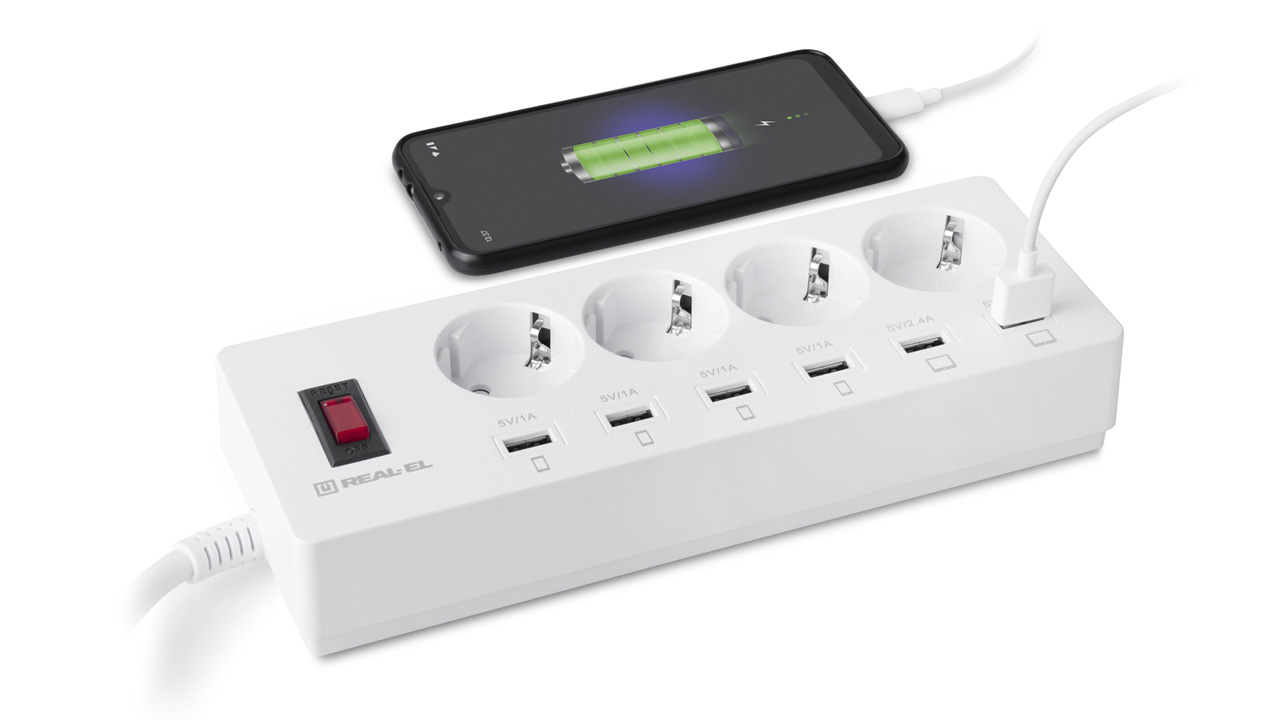

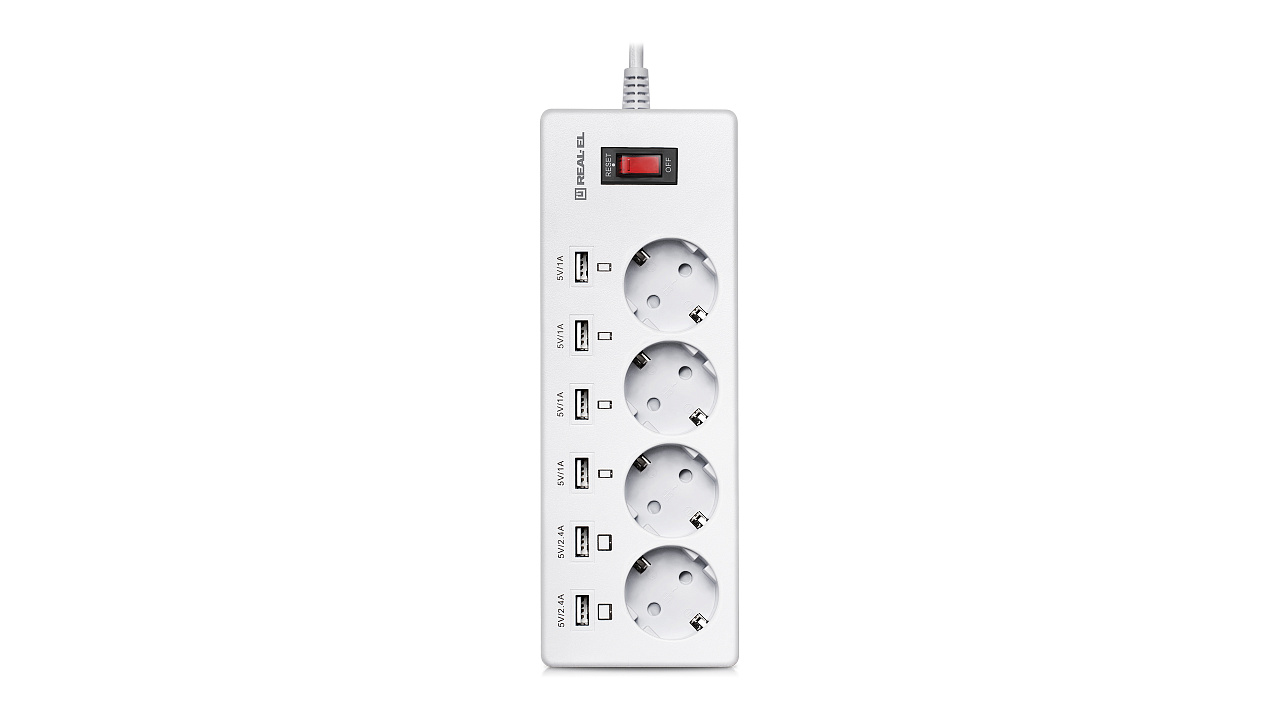

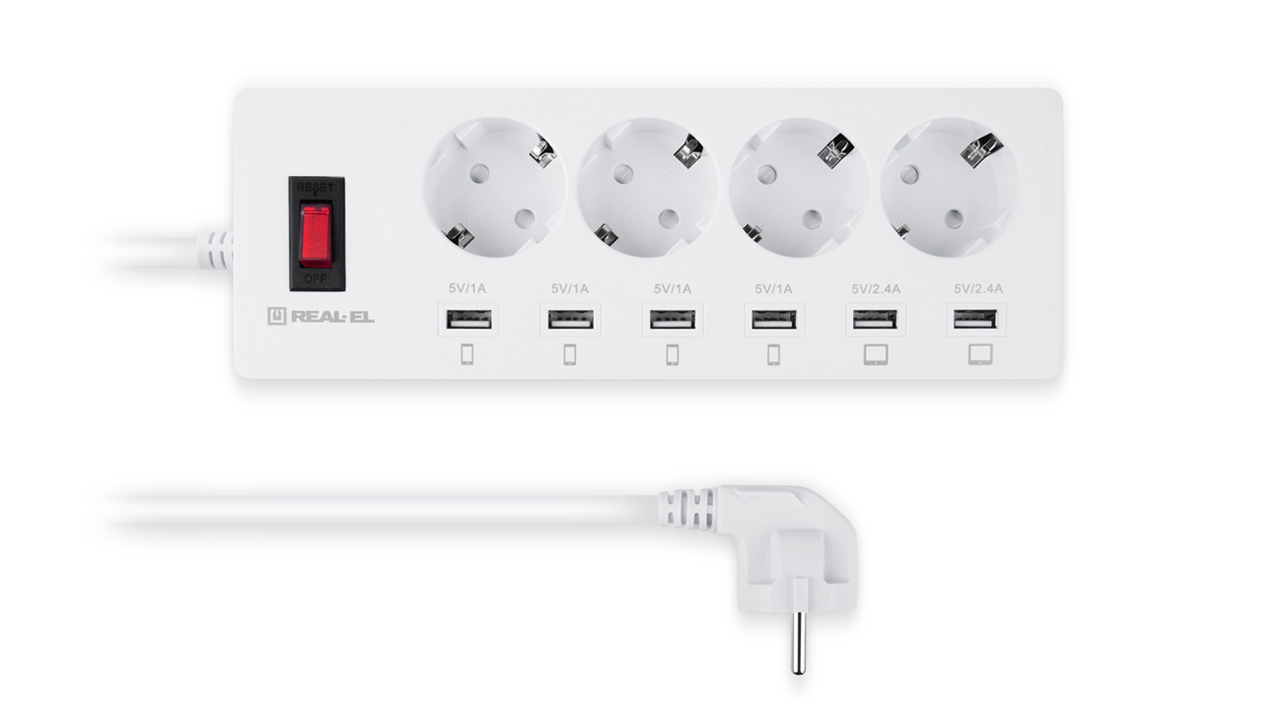

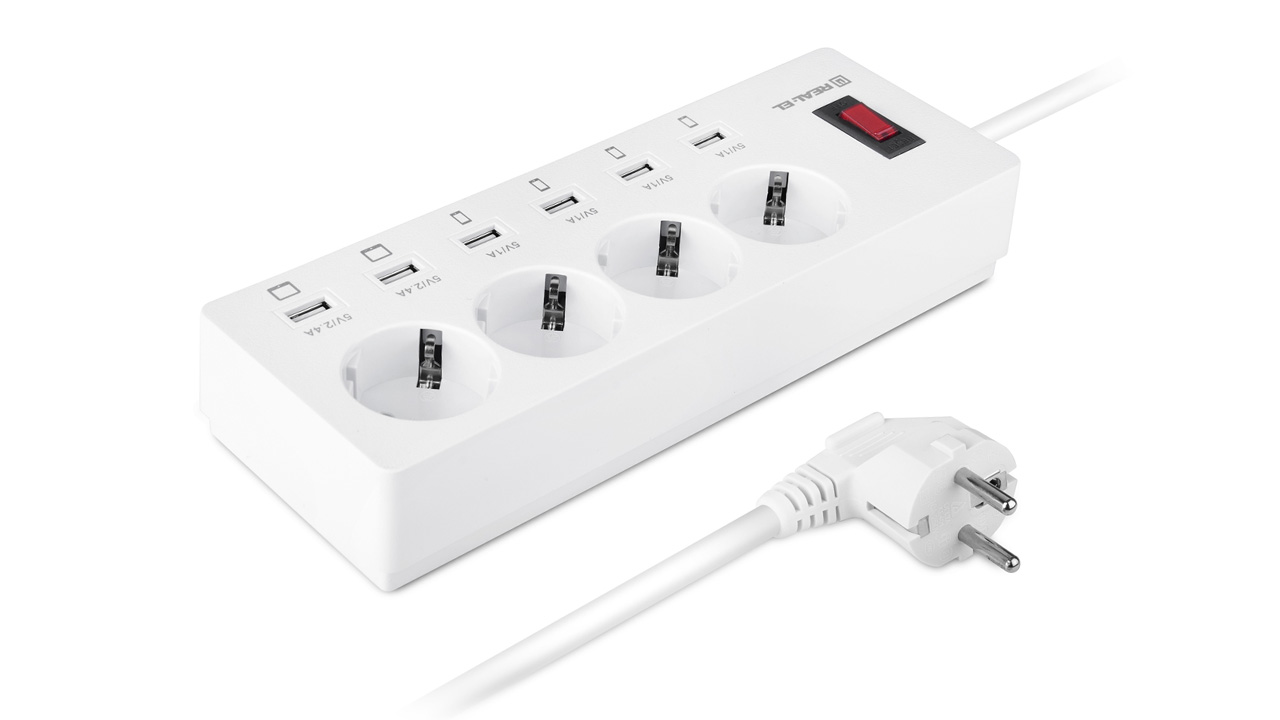

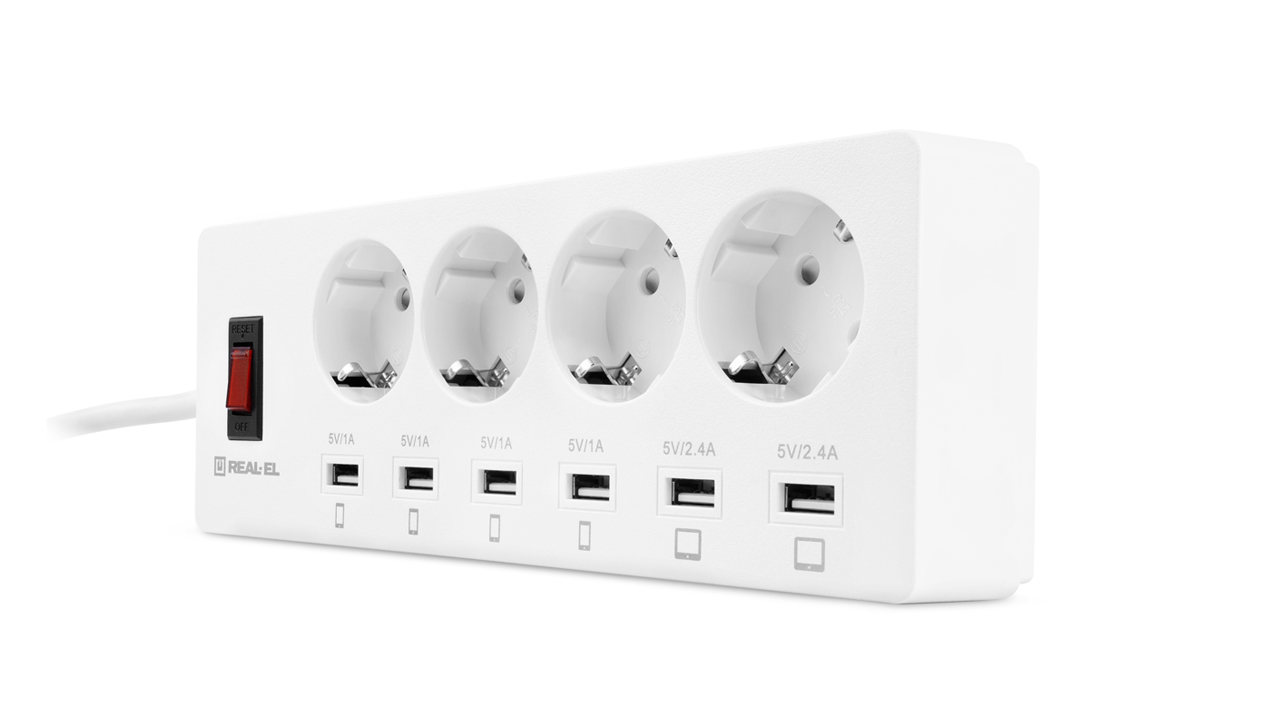

The REAL-EL RS-4F CHARGE 6 surge protector with the built-in USB charger is de- signed for connection of electrical appliances to the electrical network and their protection against high-voltage surge pulses and permanent filtration of high-frequency noises.
The REAL-EL RS-4F CHARGE 6 surge protector with the built-in USB charger is de- signed for connection of electrical appliances to the electrical network and their protection against high-voltage surge pulses and permanent filtration of high-frequency noises.
- Features
- Specifications
- Support
- Intelligent fast charge
- Built-in surge protection
- 6 USB ports for charging

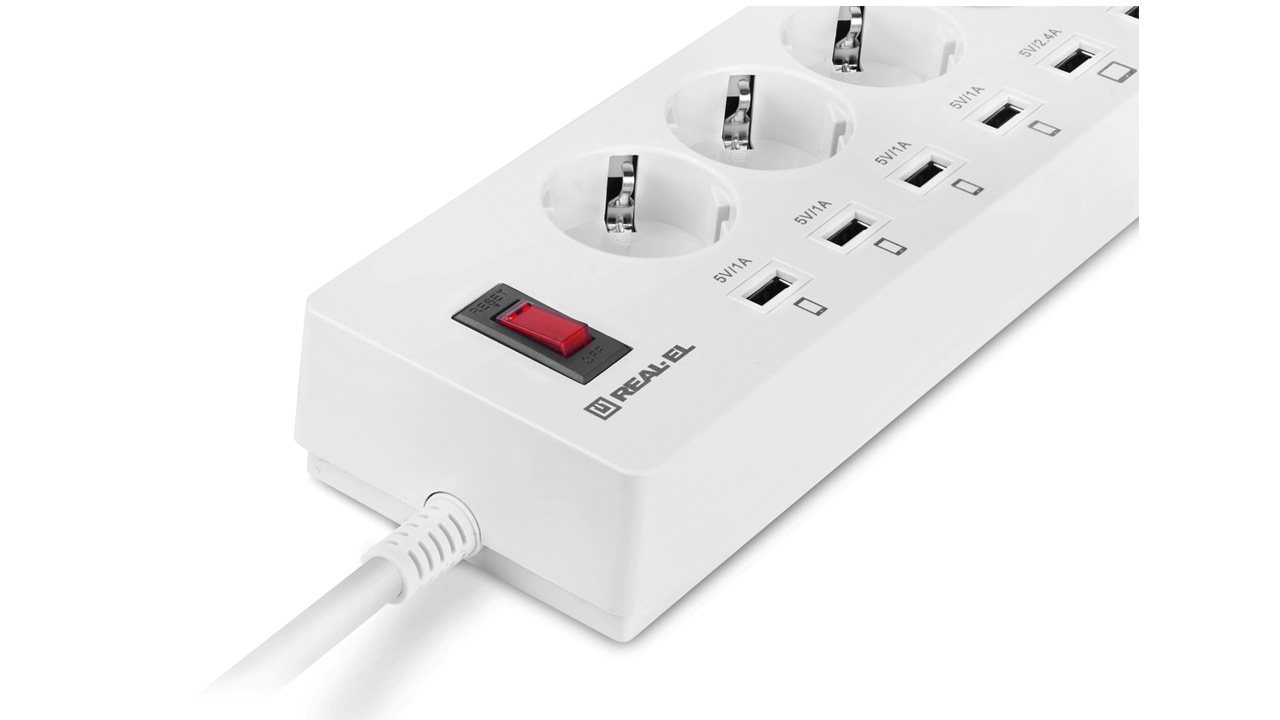

- Power switch with LED
- Resettable fuse does not require replacement
- Grounded sockets with protection shutters
- Power contacts of socket made from phosphor bronze
- Pure copper cable without alloys
Rated input voltage, V
~250 (max)
USB charger output voltage, V
5 ± 5 %
Operating frequency, Hz
50
Total power of connected load, W
3680
Load peak current, А
16
Maximum output current of USB charger, mA
6,000
Maximum energy absorption of pulse interference, J
200
Input plug type
1 × CEE 7/7
Output sockets type
4 × CEE 7/3
Master switch of sockets
double-pole power switch
Cable length, m
1.8
Case material
ABS plastic
Dimensions, mm
232 × 40 × 82
Color
white
Life time
2 years
