RS-10 Protect

RS-10 Protect

Voltage fluctuations protection pic

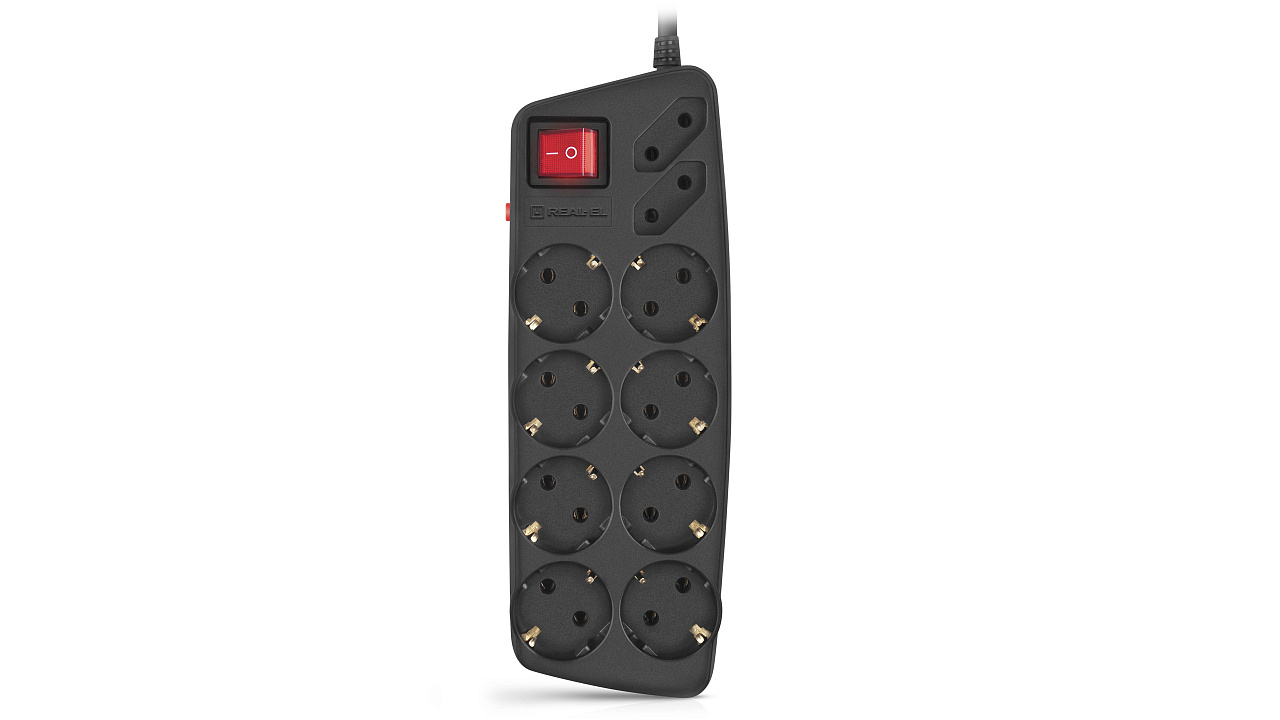

The REAL-EL RS-10 PROTECT surge protector is designed for connection of electrical appliances to the electrical network and their protection from an overload.

Personalities

    • Cable made of pure copper without the use of alloys
    • Double-pole switch
    • Eight grounded sockets and two additional non-grounded sockets
    • Impact-resistant body made of fire-resistant plastic

Technical specifications

  • Rated voltage, V ~250 (max)
  • Operating frequency, Hz 50
  • Total power of connected load, W ≤ 2300
  • Maximum load current, А 10
  • Maximum energy absorption of pulse interference, J 350
  • Input socket 1 × CEE 7/7
  • Output socket 8 × CEE 7/3; 2 × CEE 7/16
  • Master switch of sockets double-pole power switch

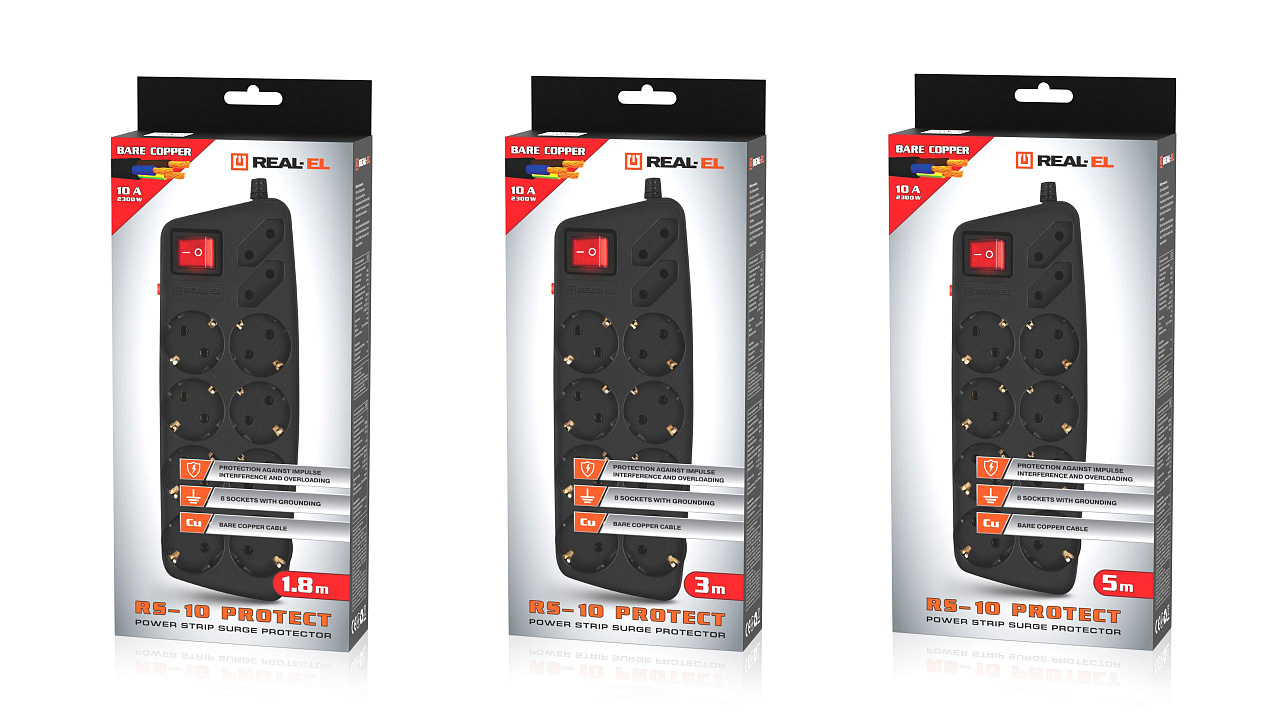

  • Cable length, m 1,8; 3,0; 5,0
  • Case material Fire-resistant plastic
  • Dimensions, mm 93 × 45 × 259
  • Color black
  • All specifications
