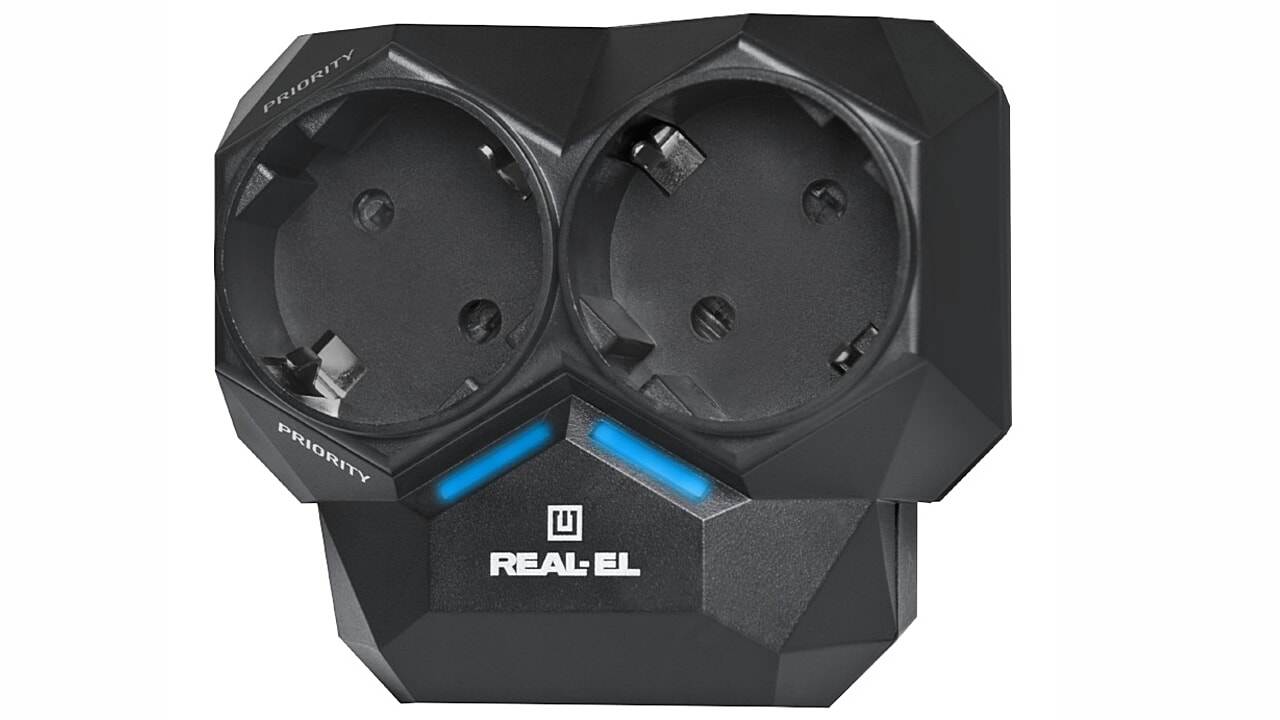

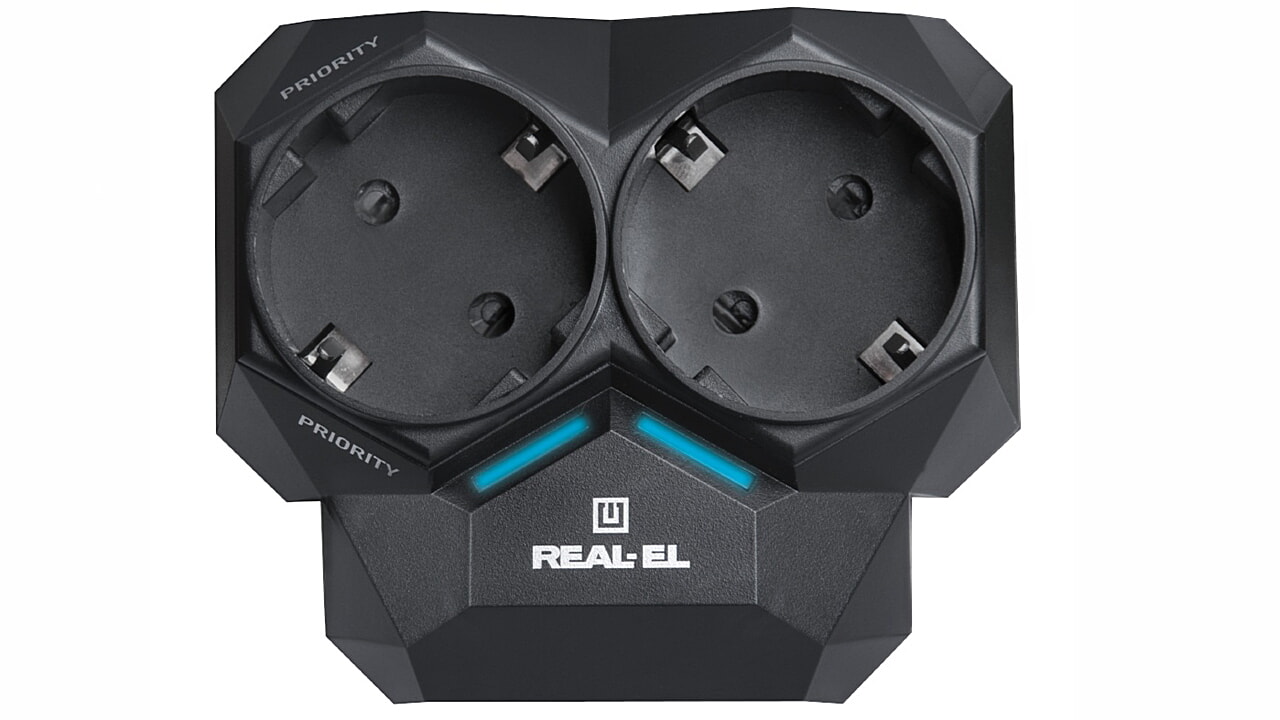

The REAL-ELAR-01 Automatic network load controller is designed to organize the joint operation of two independent electrical devices, the total power of which exceeds a limit of a permissible power of a power supply line without automatic protection operation of the line and functional failure of the powered devices.
The REAL-ELAR-01 Automatic network load controller is designed to organize the joint operation of two independent electrical devices, the total power of which exceeds a limit of a permissible power of a power supply line without automatic protection operation of the line and functional failure of the powered devices.
- Features
- Specifications
- Support
- Joint operation of two powerful household devices
- Increase of the mains output capability
- Cost saving for the mains modification
- Intelligent control system
- LED indication of active sockets
- Fast response time
- Permissible current of every connected load is 16 A
Type
automatic
Rated voltage, V
~230
Maximum load current for every socket, А
16
Maximum power for every socket, kW
3.6
Operat. threshold according to pow. consumption, W
100
Turn-on delay time of the secondary load, sec
not less than 2
Turn-off time of the secondary load, sec
no more than 0.3
Case material
plastic
Dimensions, mm
94 × 80 × 81
Weight, kg
0.13
Color
black
Life time
2 years
- ar-01_manual_en.pdf (162 КБ)
