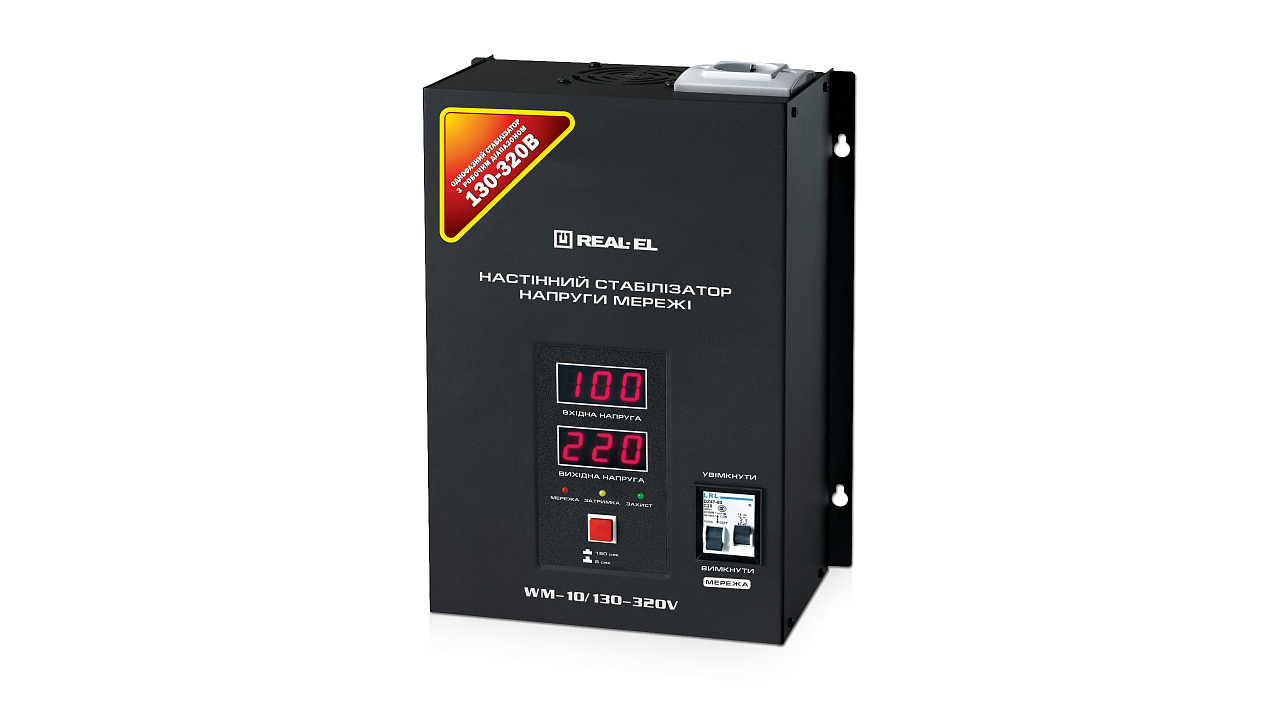

The REAL-EL WM-10/130-320V automatic voltage regulator is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of mains voltage and protecting consumers-devices against overload and influence of high frequency interferences.
The REAL-EL WM-10/130-320V automatic voltage regulator is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of mains voltage and protecting consumers-devices against overload and influence of high frequency interferences.
- Features
- Specifications
- Support
- High precision of output voltage regulation
- Wide range of input voltages 130 – 320 V
- CPU control
- Digital indicator of input and output voltages on the front panel
- Additional socket in the case
- Protection of devices-consumers against input voltage fluctuations and high-frequency interferences
- Pause mode for safe power supply after electrical power resumption
- Forced ventilation mode
Output sockets
1 × СЕЕ7/4 (16 А)
AVR type
relay
Output power, VA
13000
Maximal output power, W
10000
Maximum load, W
10000
Input voltage level, V
~130 – 320
Output voltage level, V
~220 ± 8 %
Frequency, Hz
50
Input terminals
terminals
Output sockets
terminals
Protection
automatic circuit breaker from a short circuit and overload
Protection operating current, A
50
Typical switching time, ms
≤ 10
Indication
input and output voltage
Environmental temperature, °С
0 ~ +40
Relative humidity, %
up to 70 (without condensation)
Case material
metal + plastic
Dimensions, mm
320 × 425 × 160
Weight, kg
20.0
Color
black
Life time
5 years
