STAB SLIM-500

STAB SLIM-500

Compact design pic Overheating protection pic Built-in voltage stabilizer pic IC control pic Input voltage range is 150 - 270V pic

The REAL-EL STAB SLIM-500 voltage stabilizer is designed to provide high-quality and stable power supply to various consumers, protecting consumer devices from unacceptable voltage deviations, high-frequency, and impulse interferences.

Personalities

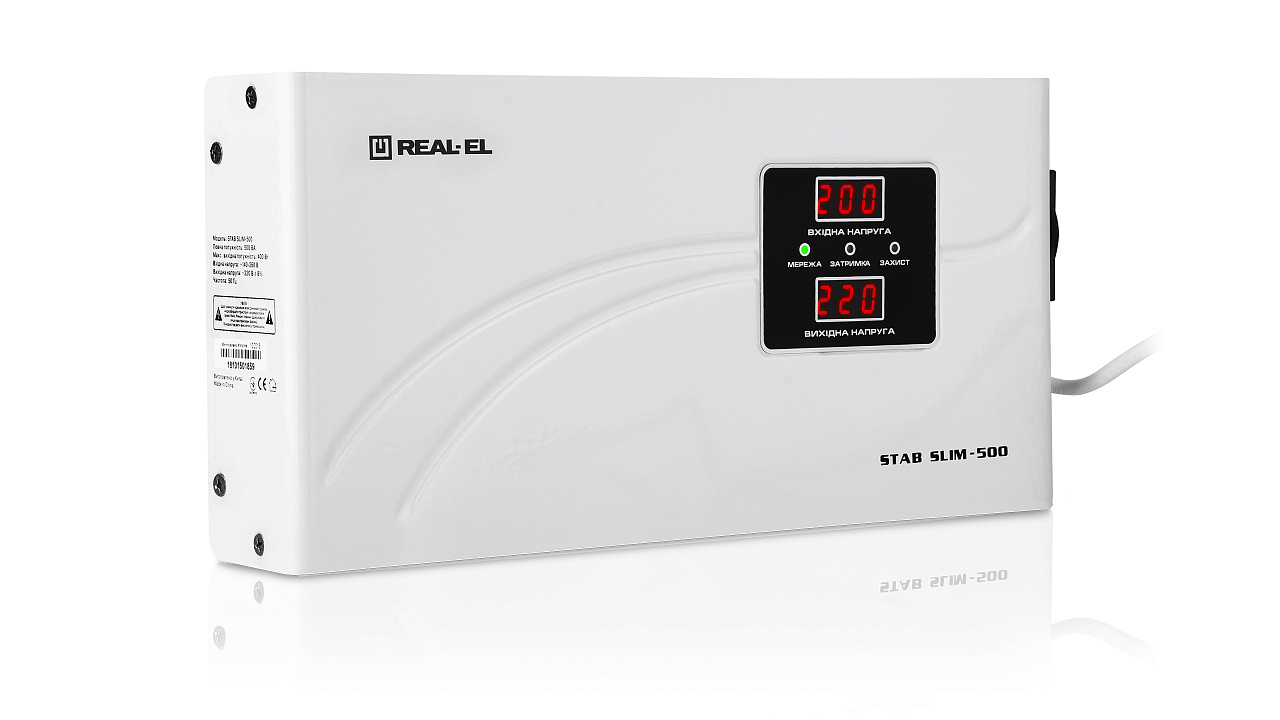

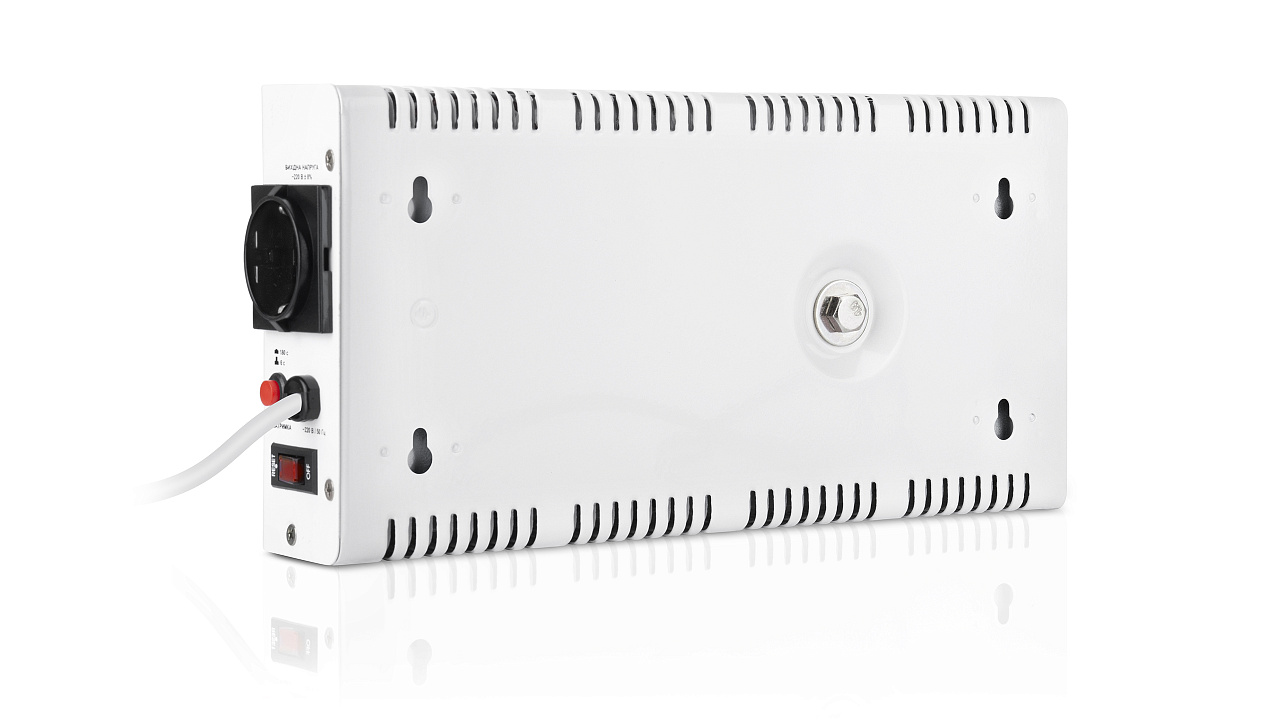

    • Thin metal body with wall mounting capability
    • Protection of consumer devices from high and low input voltage, high-frequency, and impulse interferences
    • Protection of the stabilizer from overload and short circuit
    • Wide range of input voltages 140-260 V
    • High precision of output voltage stabilization
    • Microprocessor control

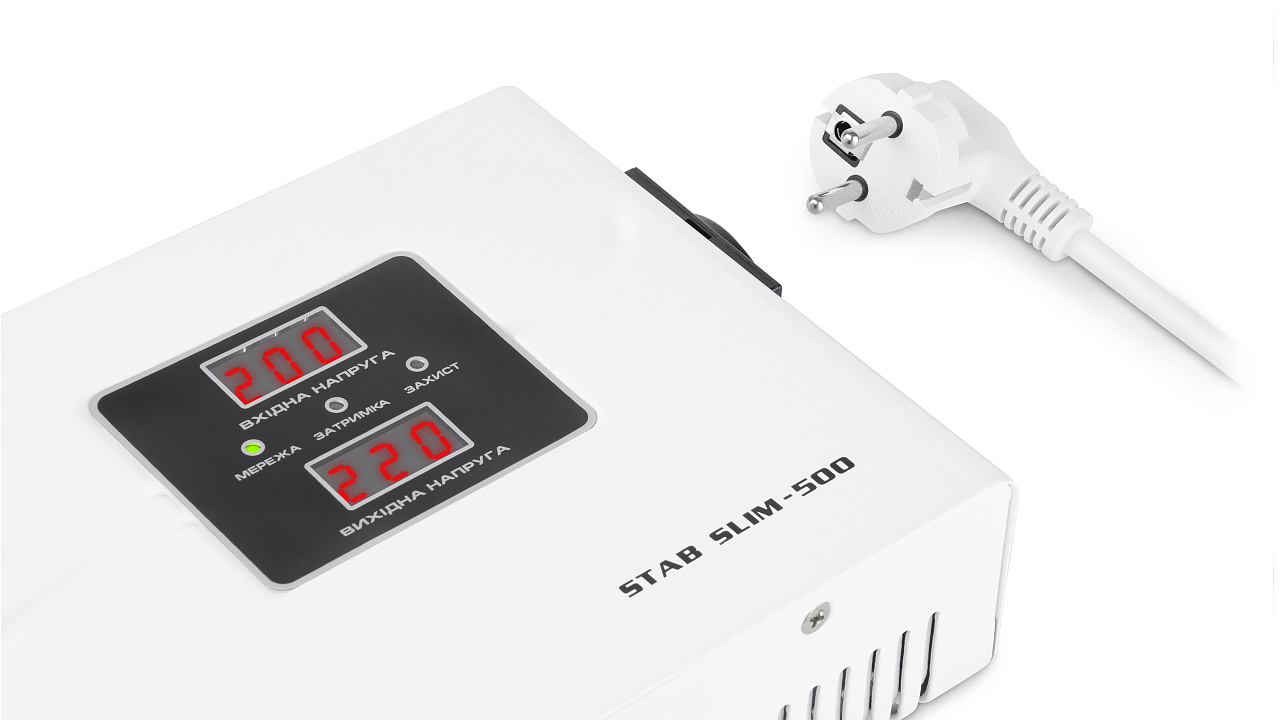

    • Digital indicators of input and output voltages
    • Toroidal transformer with built-in upgradable overheating protection
    • "Pause" function for delaying power supply (for 6 or 180 s) after its resumption

Technical specifications

  • Output socket 1 × СЕЕ7/7
  • Input socket 1 × СЕЕ7/4
  • AVR type relay
  • Output power, VА 500
  • Maximal output power, W 400
  • Maximum load, W 400
  • Input voltage level, V ~150 – 270
  • Output voltage level, V ~220 ± 8 %
  • Frequency, Hz 50
  • Protection against high voltage/undervoltage, short circuit, overload, high-frequency and high-voltage interferences
  • Switching time, PV ≤ 10
  • Indication input and output voltage
  • Safety fuse, A 5 А
  • Environmental temperature, °С 0 – +40
  • Relative humidity, % up to 90
  • Case material metal
  • Dimensions, mm 330 × 160 × 60
  • Weight, kg 2,6
  • Color white
  • All specifications
