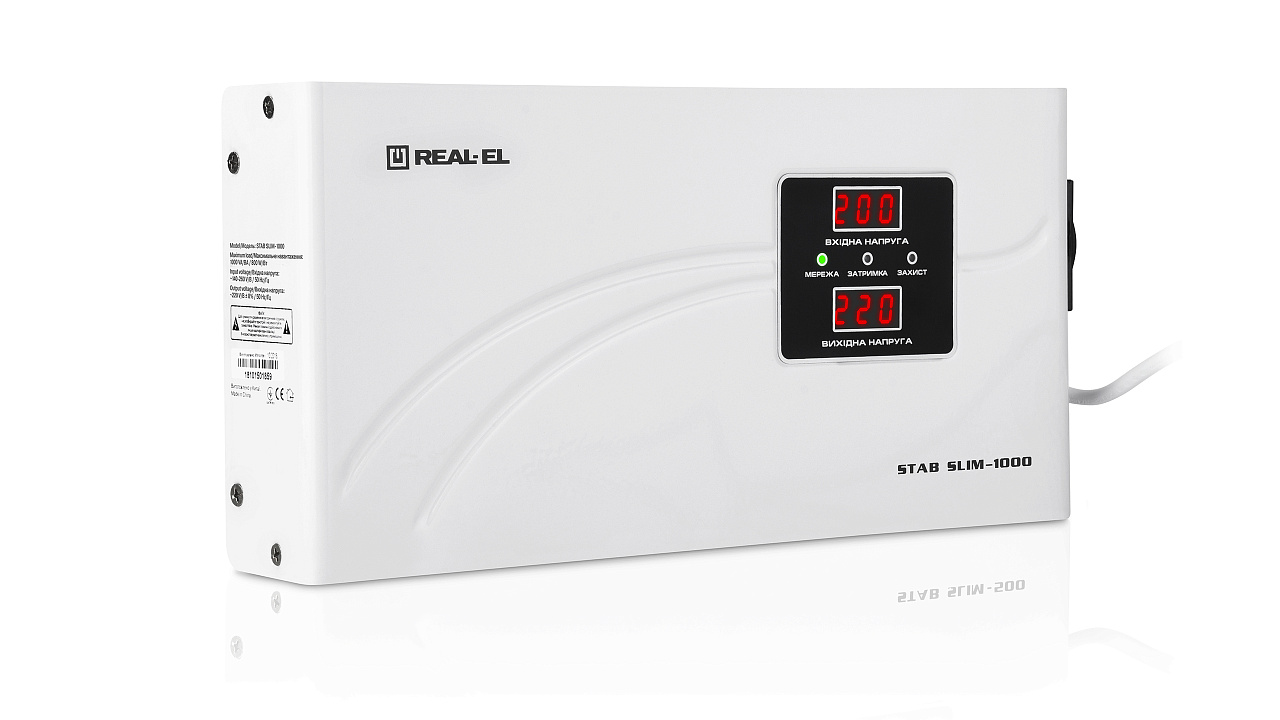

REAL-EL STAB SLIM-1000 automatic voltage regulator (AVR) is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of voltage and protecting your equipment against high-voltage and pulsed interference.
REAL-EL STAB SLIM-1000 automatic voltage regulator (AVR) is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of voltage and protecting your equipment against high-voltage and pulsed interference.
- Features
- Specifications
- Support

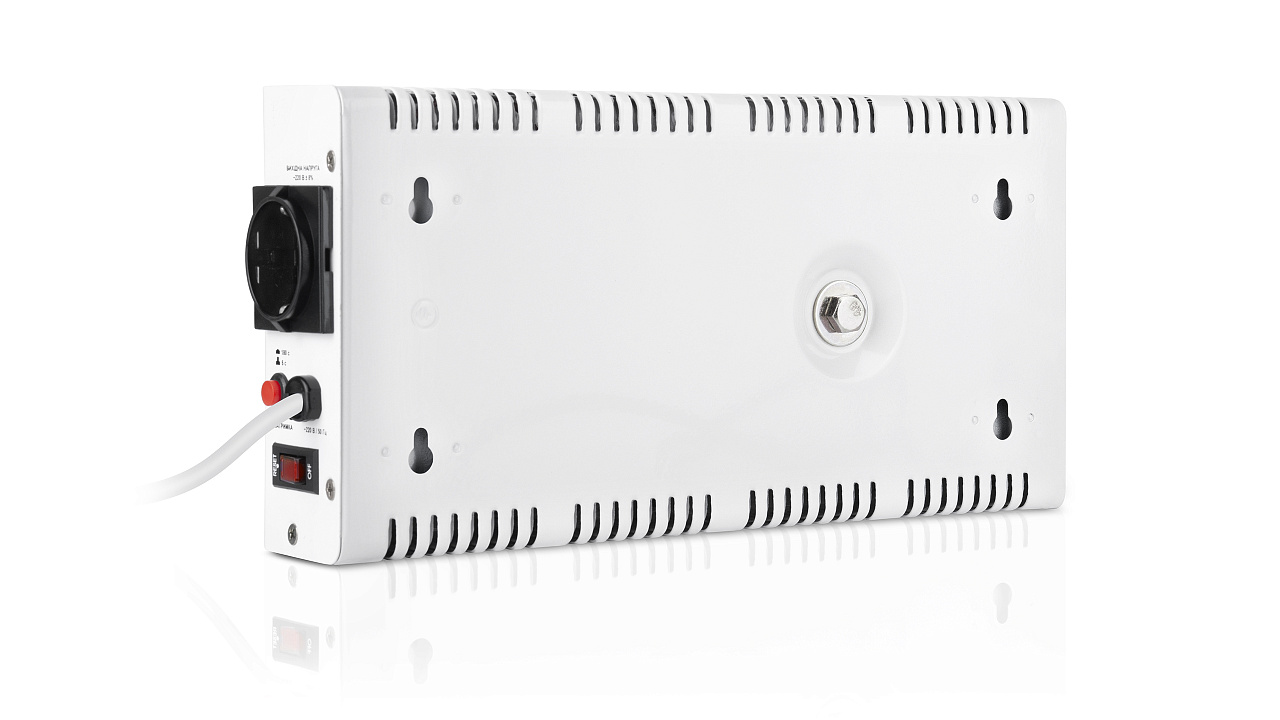

- Slim metal case with possibility of fixing on the wall
- Protection of consumer-devices against high or low output voltage
- Protecting of consumer-devices from high-frequency and pulsed interference
- AVR protection from overload and short circuit
- Wide range of input voltages 140-260 V
- Extended precision of output voltage regulation
- CPU control

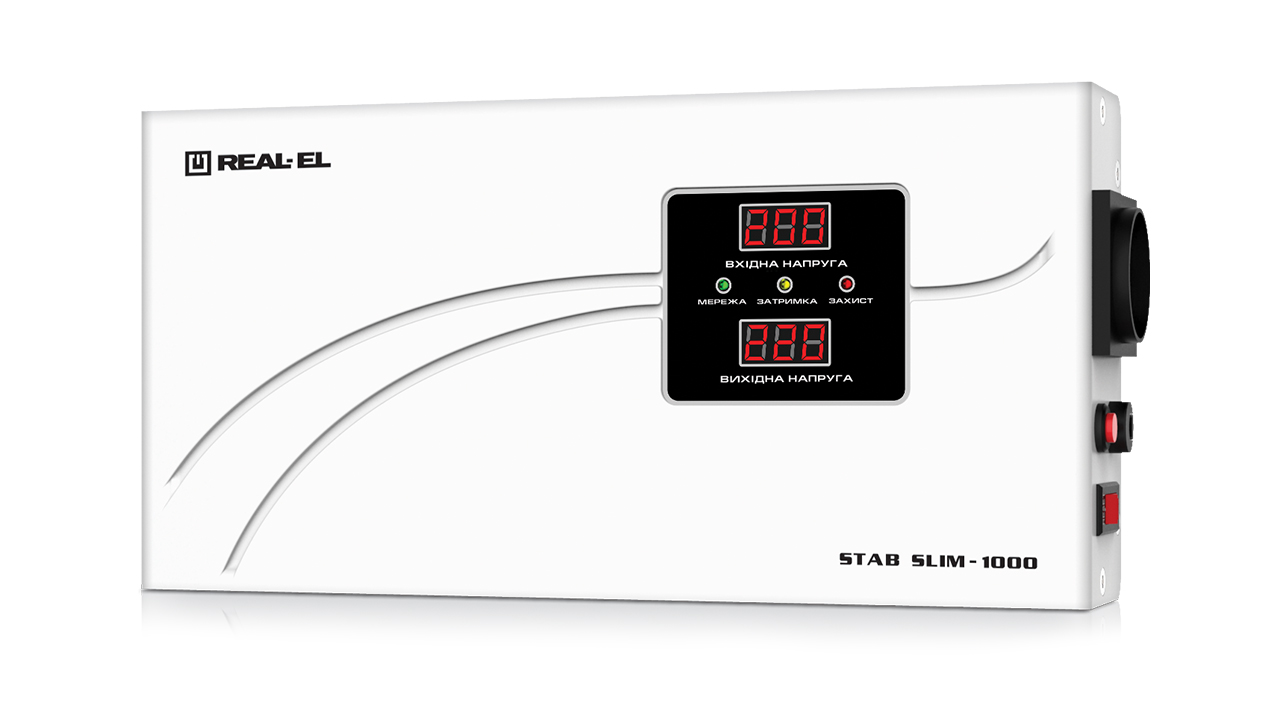

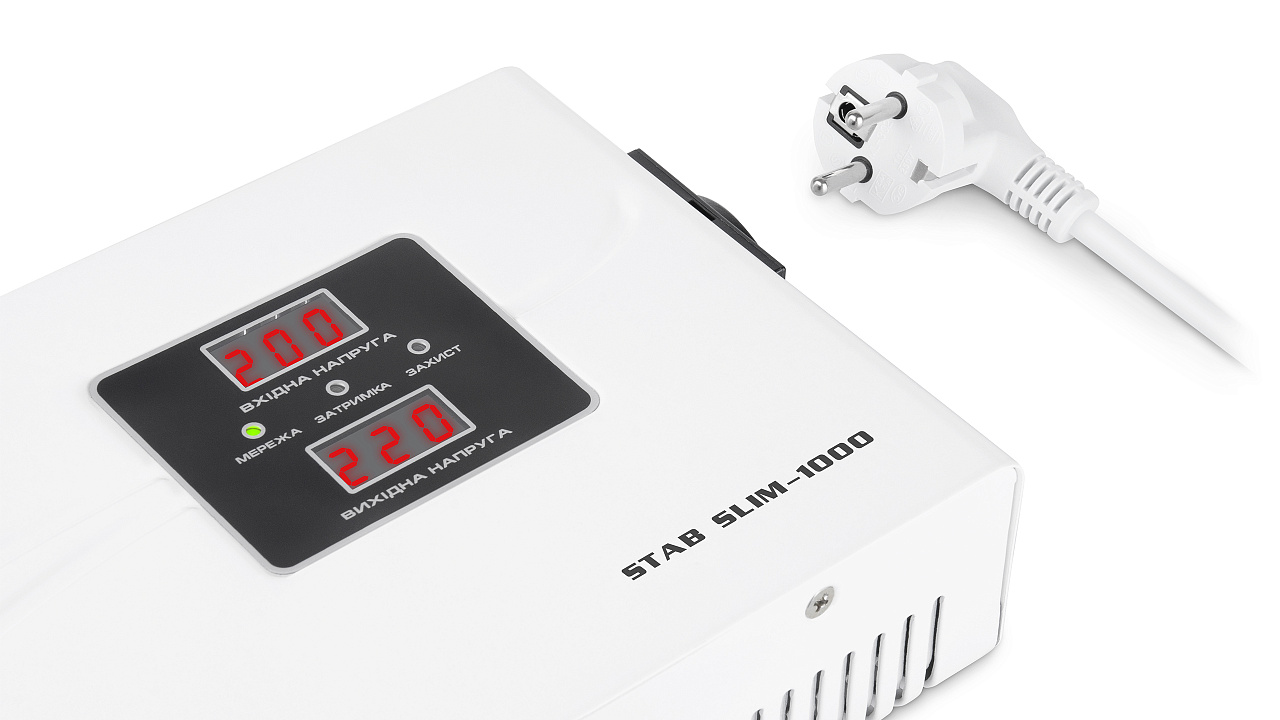

- Digital displays of input/output voltage
- Toroidal transformer with built-in restorable thermal protection

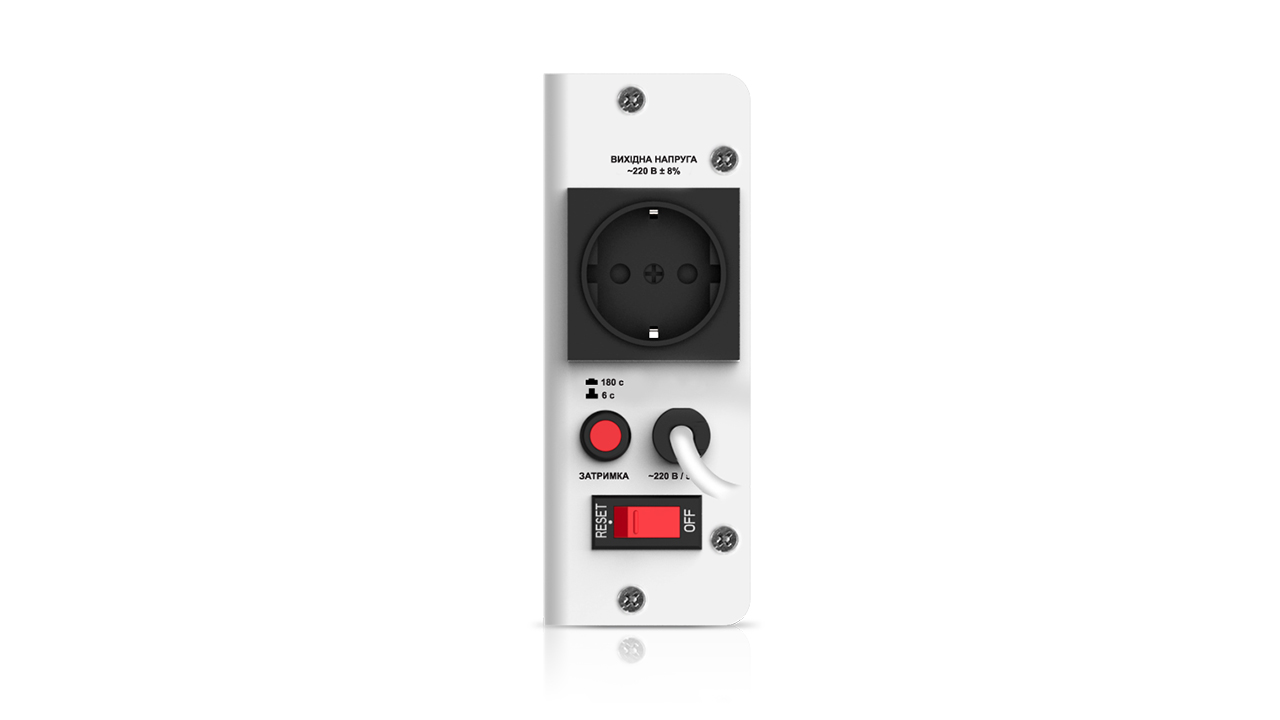

- PAUSE function (6 or 180 s) for safe voltage supply after power supply renewal

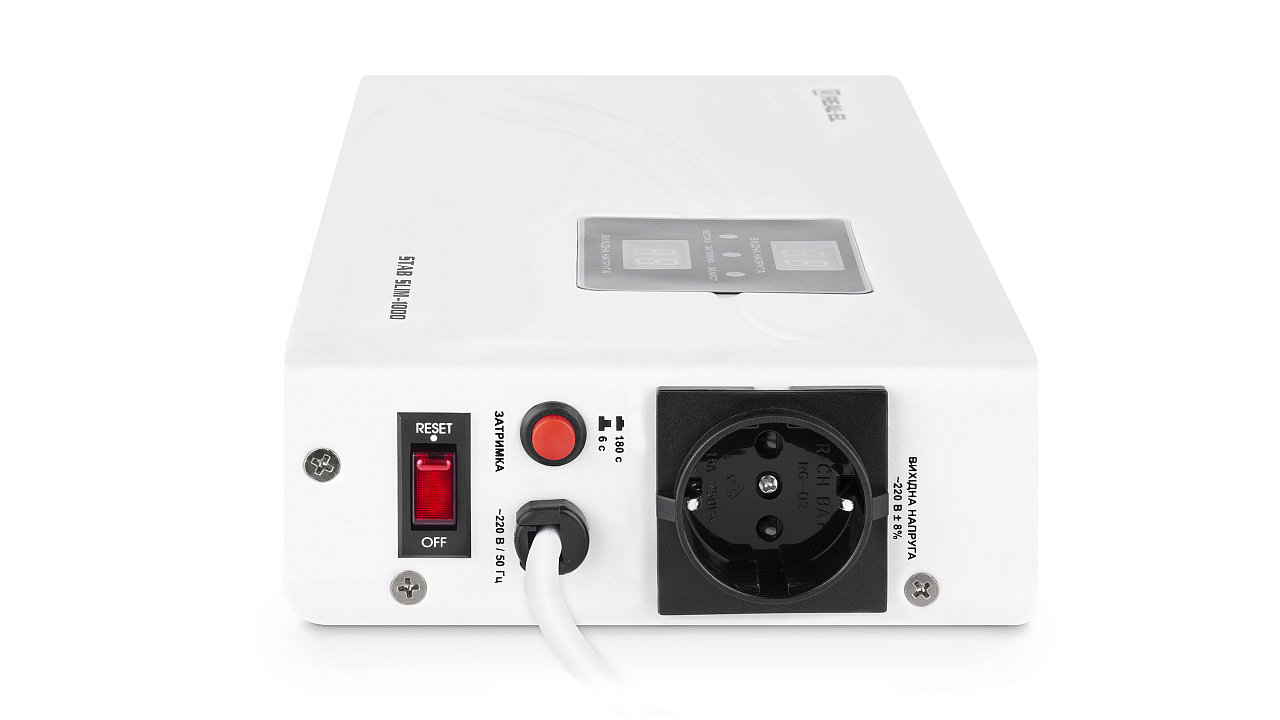

Input terminals
1 × СЕЕ7/7
Input socket
1 × СЕЕ7/4
AVR type
relay
Output power, VA
1000
Maximal output power, W
800
Maximum load, W
800
Input voltage level, V
~140 – 260
Output voltage level, V
~220 ± 8 %
Frequency, Hz
50
Protection
against high voltage/undervoltage, short circuit, overload, high-frequency and high-voltage interferences
Typical switching time, ms
≤ 10
Indication
input and output voltage
Fuse
7А
Environmental temperature, °С
0 – 40
Relative humidity, %
up to 90
Case material
metal
Dimensions, mm
330 × 160 × 60
Weight, kg
3,2
Color
white
Life time
5 years
