STAB ENERGY-2000

STAB ENERGY-2000

Overheating protection pic Input voltage range is 150 - 270V pic LED display pic

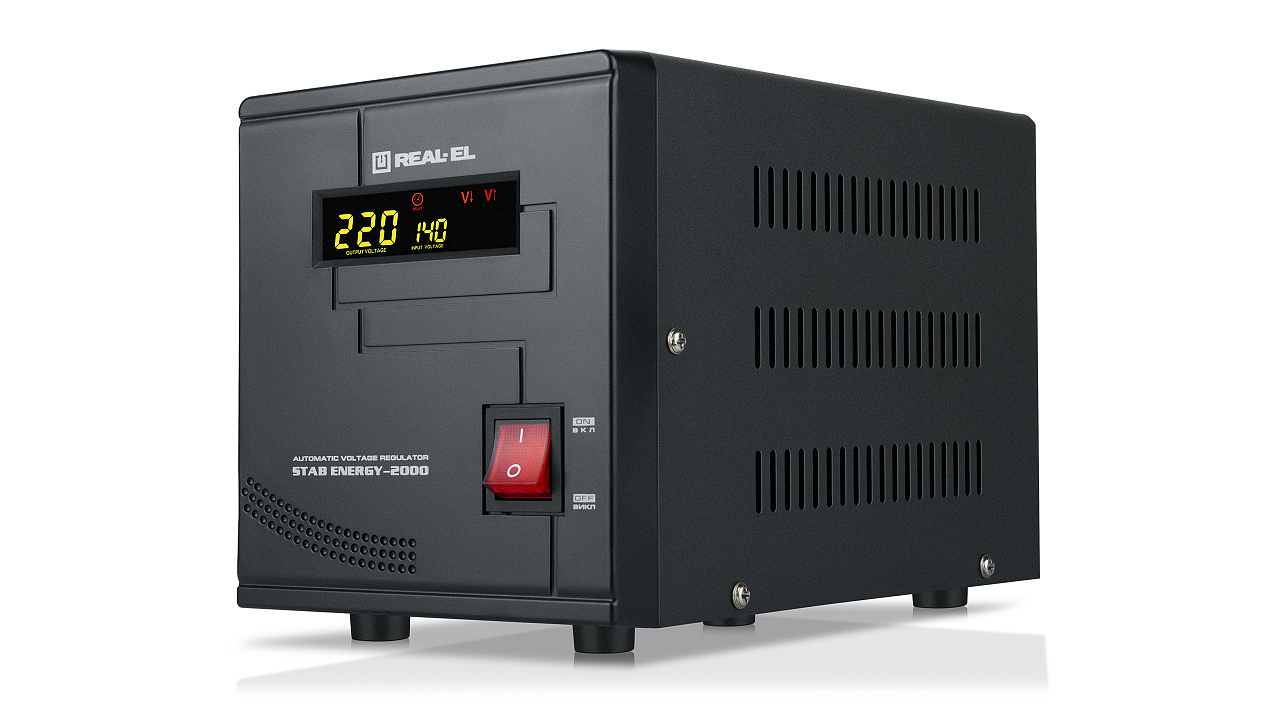

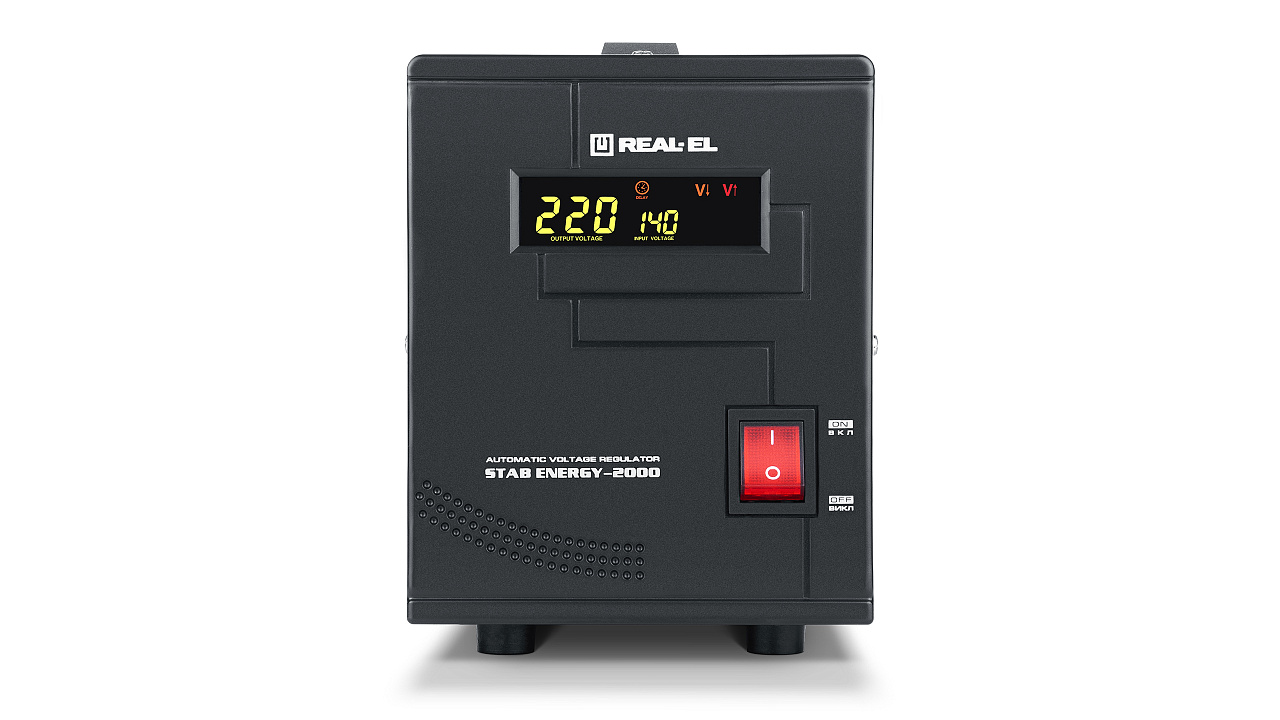

Voltage stabilizer REAL-EL STAB ENERGY-2000 is designed to provide high-quality and stable power supply for various consumers in conditions of significant and prolonged deviations of the electrical network voltage from the nominal value, protecting devices-consumers from overload, from the influence of high-frequency and impulse interference.

Personalities

    • Graphical LED display
    • Toroidal transformer with automatic overload protection
    • Delay in activation after voltage restoration in the network 6/180 seconds
    • Zero-cross switching technology
    • Microprocessor control
    • Maximum protection against high voltage, low voltage, short circuit, overheating, and overload

Technical specifications

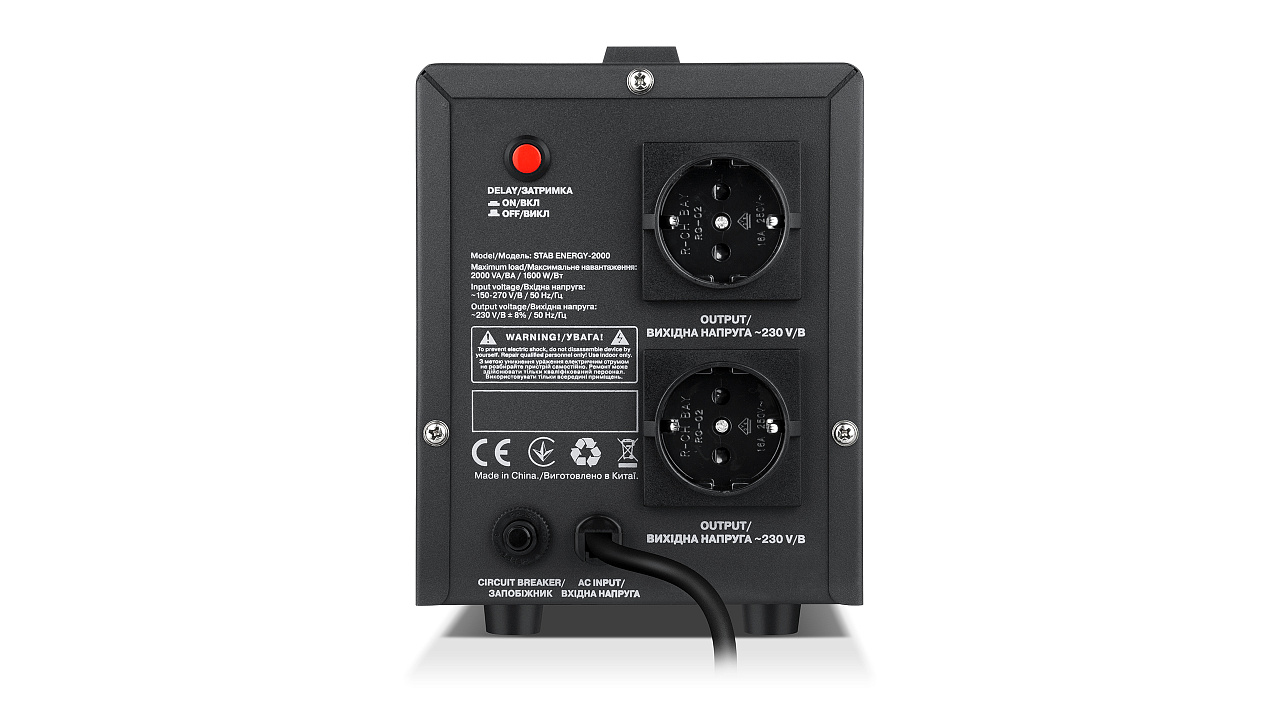

  • Output socket 1 × СЕЕ7/7
  • Input socket 2 × СЕЕ7/4
  • AVR type relay
  • Output power, VА 2000
  • Maximal output power, W 1600
  • Maximum load, W 1600
  • Input voltage level, V ~150–270
  • Output voltage level, V ~230 ± 8 %
  • Frequency, Hz 50
  • Protection against high voltage, low voltage, short circuit, overheating and overload
  • Switching time, PV ≤ 10
  • Indication input and output voltage
  • Safety fuse, A 15 А
  • Environmental temperature, °С 0 ~ +40
  • Relative humidity, % up to 90
  • Case material metal + plastic
  • Dimensions, mm 139 × 171 × 234
  • Weight, kg 4,5
  • Color black
  • All specifications
