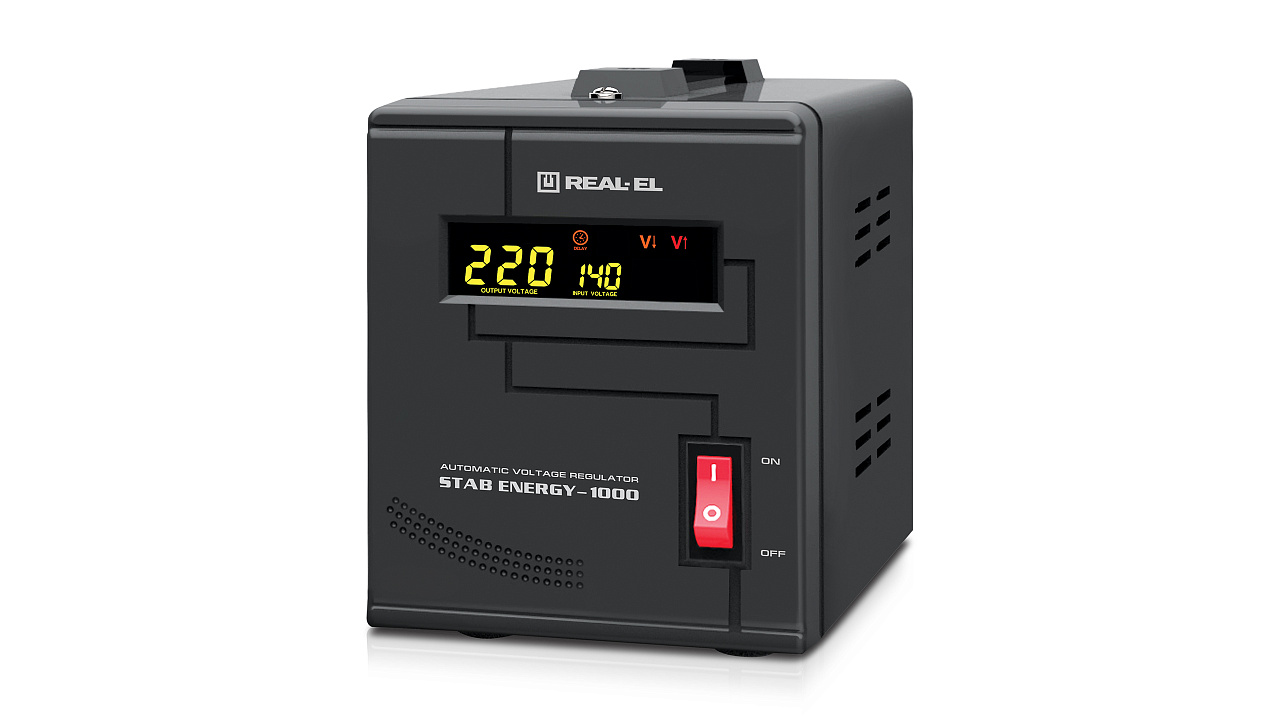

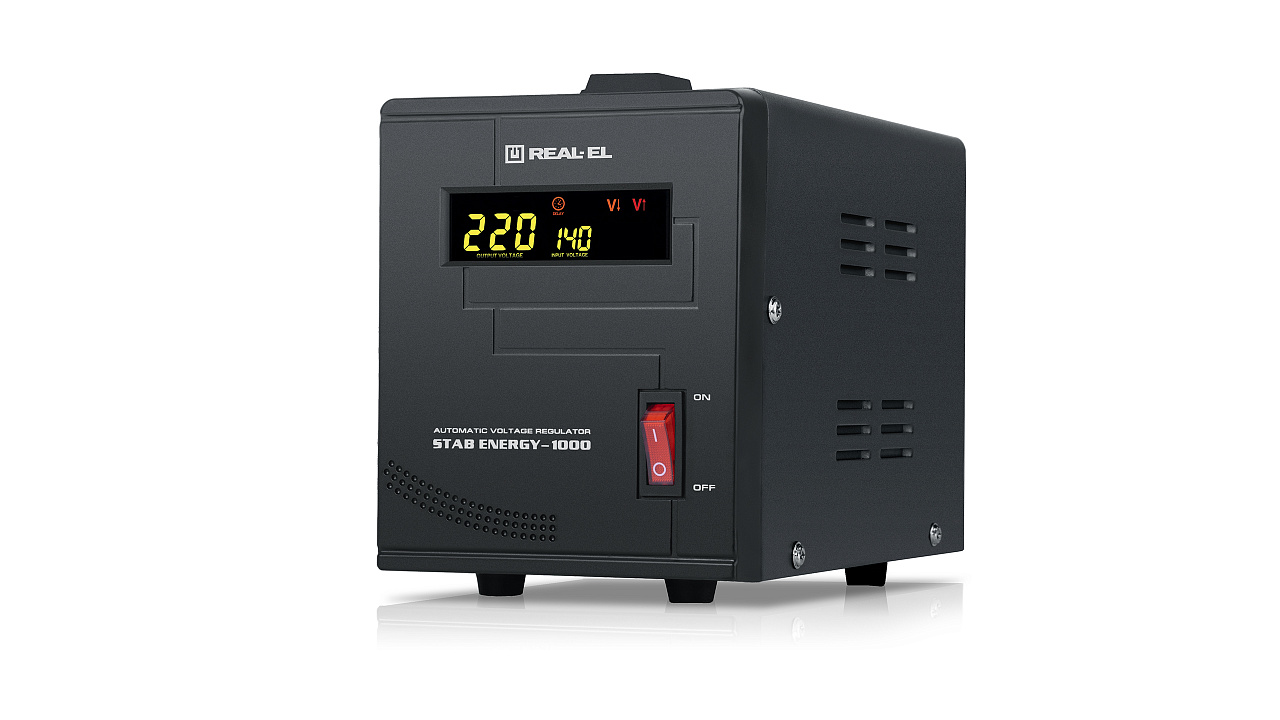

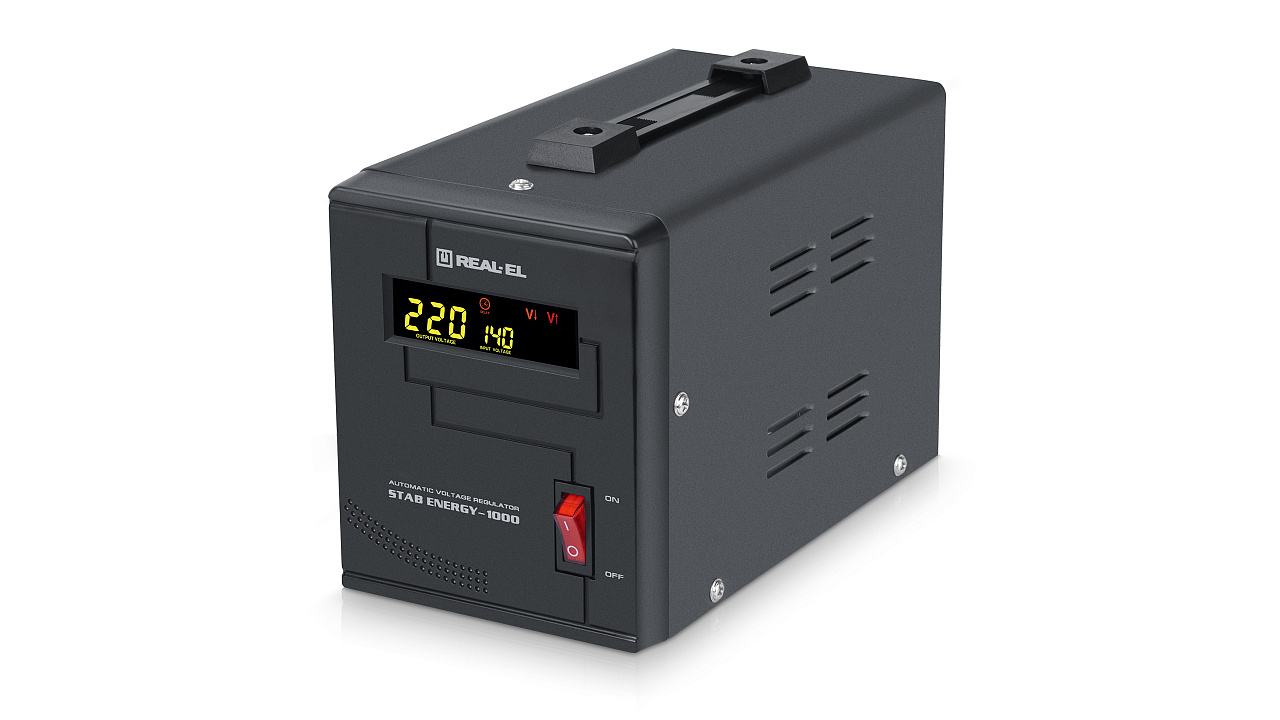

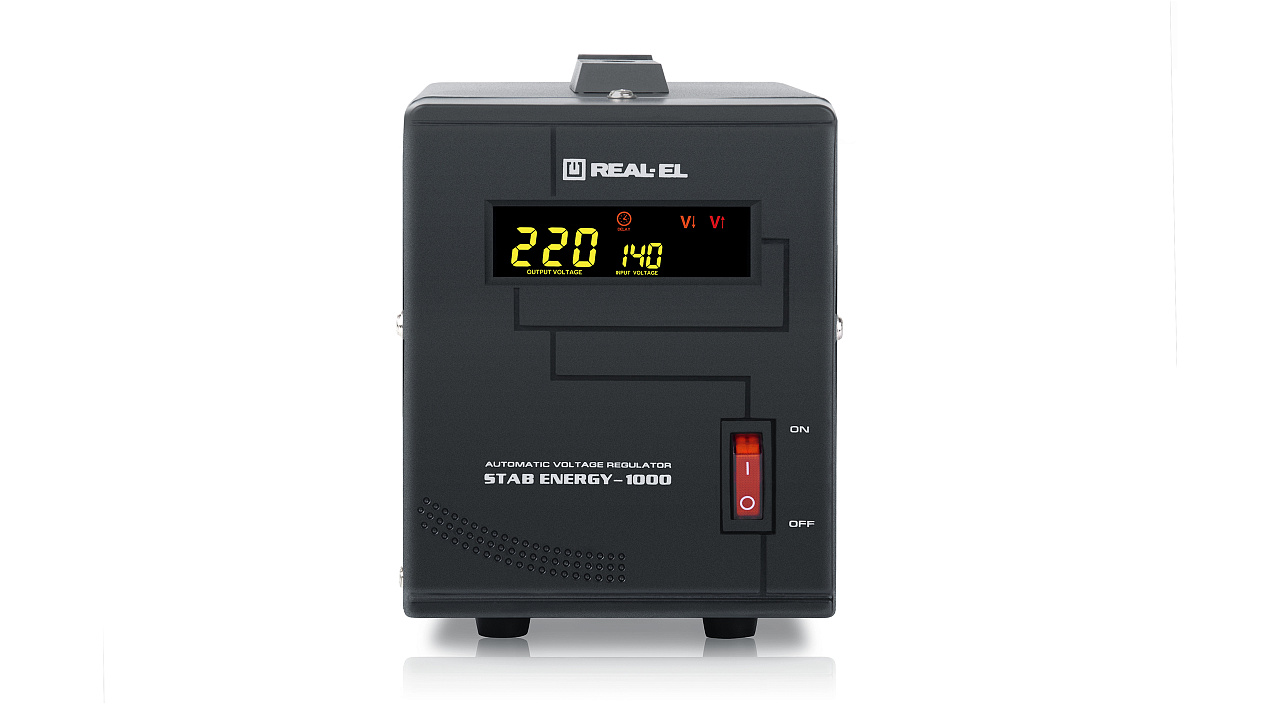

The REAL-EL STAB ENERGY-1000 automatic voltage regulator is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of mains voltage and protecting consumer devices against overload, influence of high-frequency and impulse interferences.
The REAL-EL STAB ENERGY-1000 automatic voltage regulator is designed for providing various equipment with high-quality stable electric power supply in conditions of significant and continuous deviations of mains voltage and protecting consumer devices against overload, influence of high-frequency and impulse interferences.
- Features
- Specifications
- Support
- Graphic LED Display
- Toroidal transformer with automatic overload protection
- Delay of switching on 6/180 sec
- Zero-cross switching technology
- Microprocessor control
- Maximum protection against high voltage, low voltage, short circuit, overheating and overload

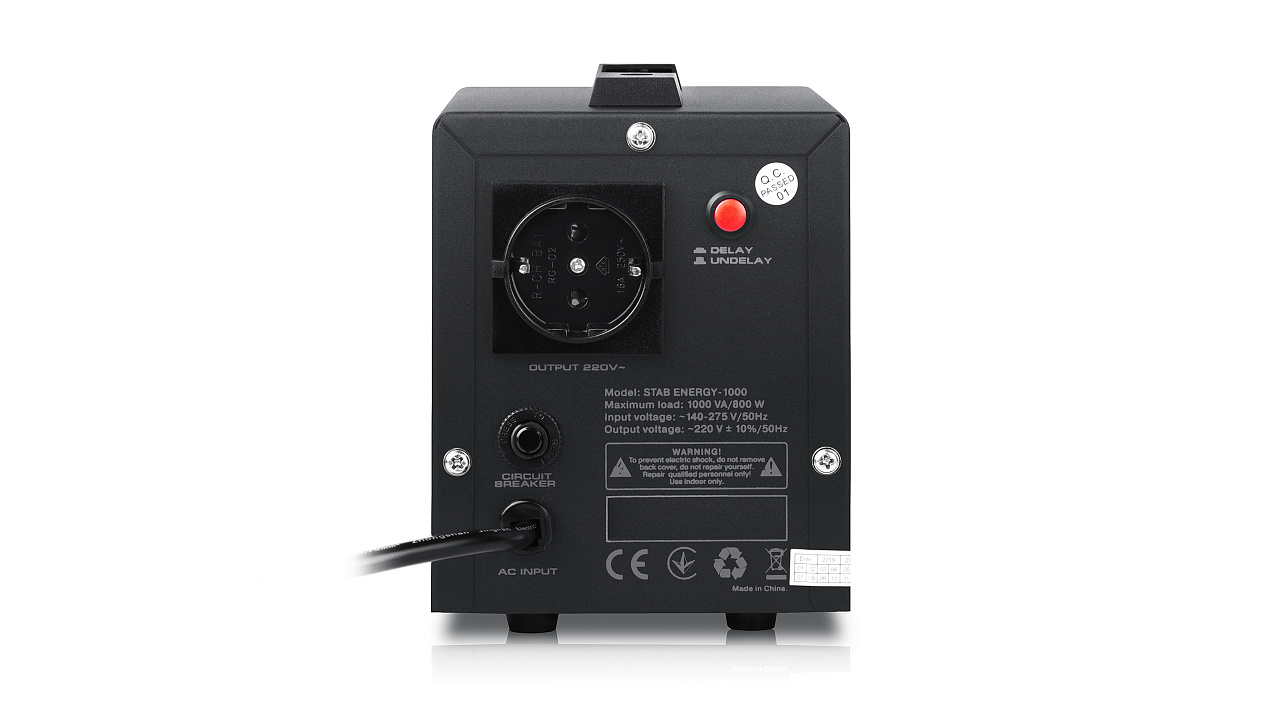

Input terminals
1 × СЕЕ7/7
Input socket
1 × СЕЕ7/4
AVR type
relay
Output power, VA
1000
Maximal output power, W
800
Maximum load, W
800
Input voltage level, V
~150–270
Output voltage level, V
~230 ± 8 %
Frequency, Hz
50
Protection
against high voltage, low voltage, short circuit, overheating and overload
Typical switching time, ms
≤ 10
Indication
input and output voltage
Fuse
7 А
Environmental temperature, °С
0 ~ +40
Relative humidity, %
up to 90
Case material
metal + plastic
Dimensions, mm
120 × 145 × 220
Weight, kg
2.9
Color
black
Life time
5 years
