STAB ENERGY-500

STAB ENERGY-500

Overheating protection pic Input voltage range is 150 - 270V pic LED display pic

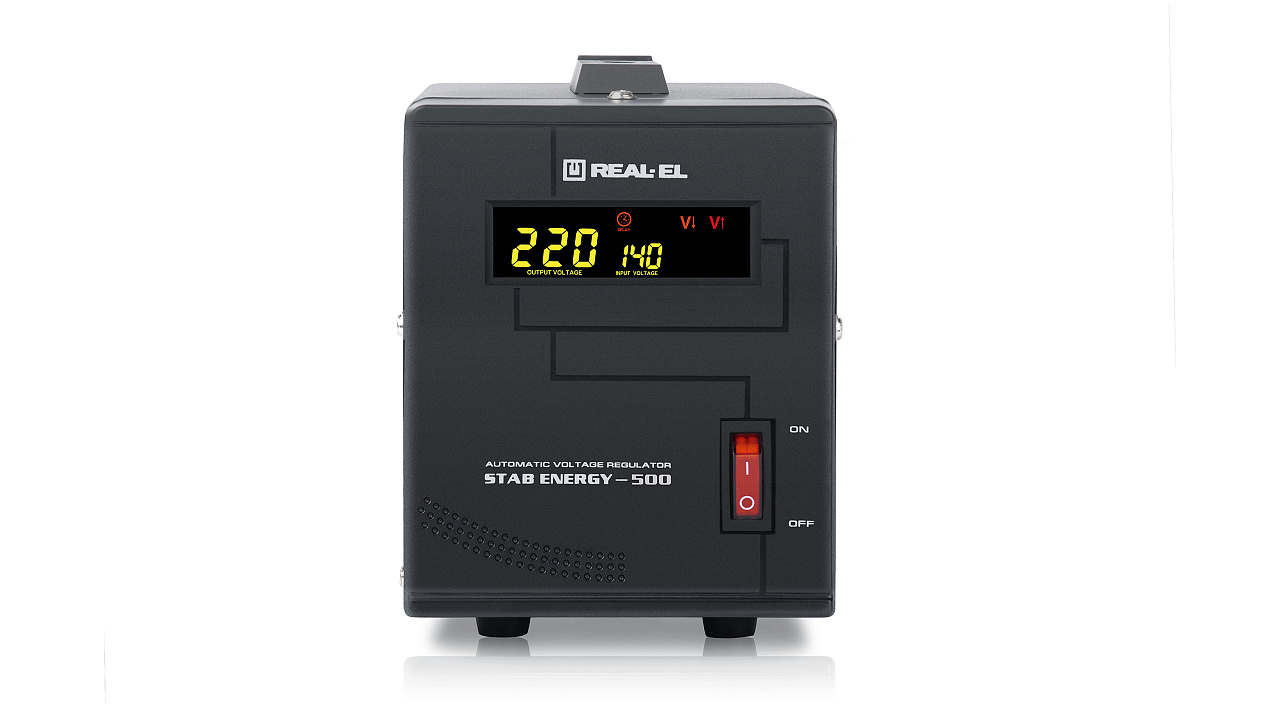

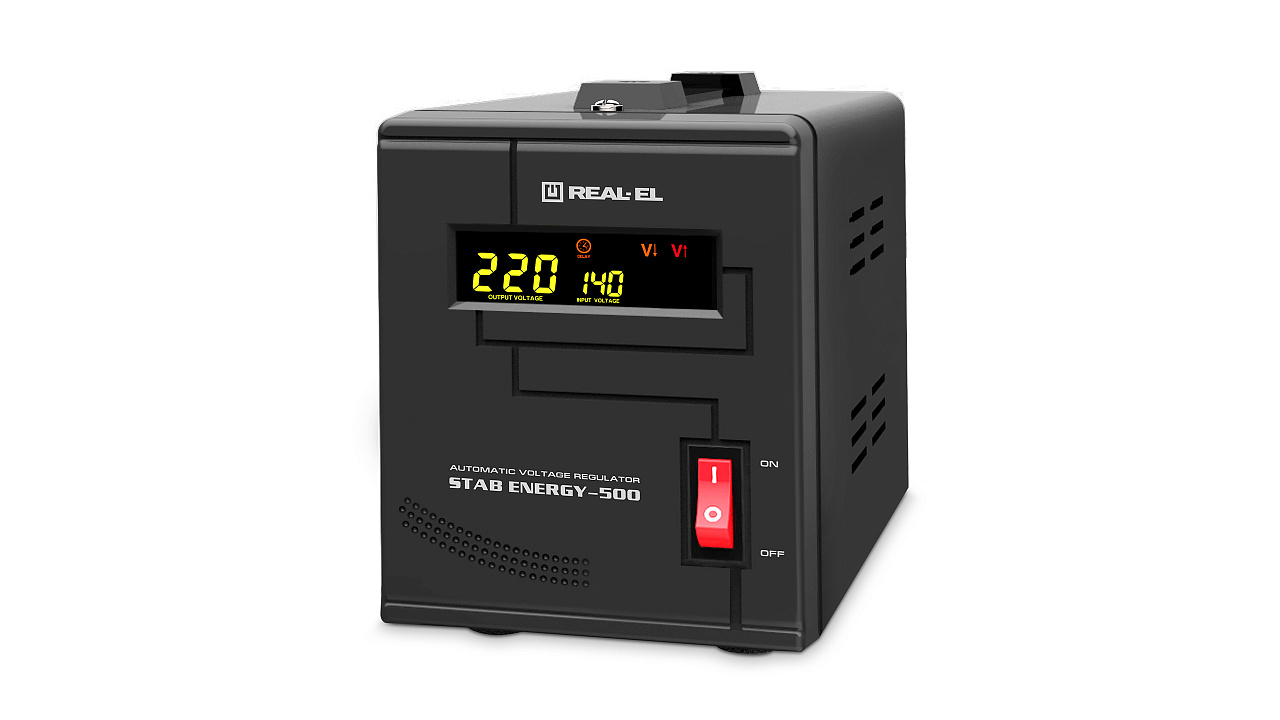

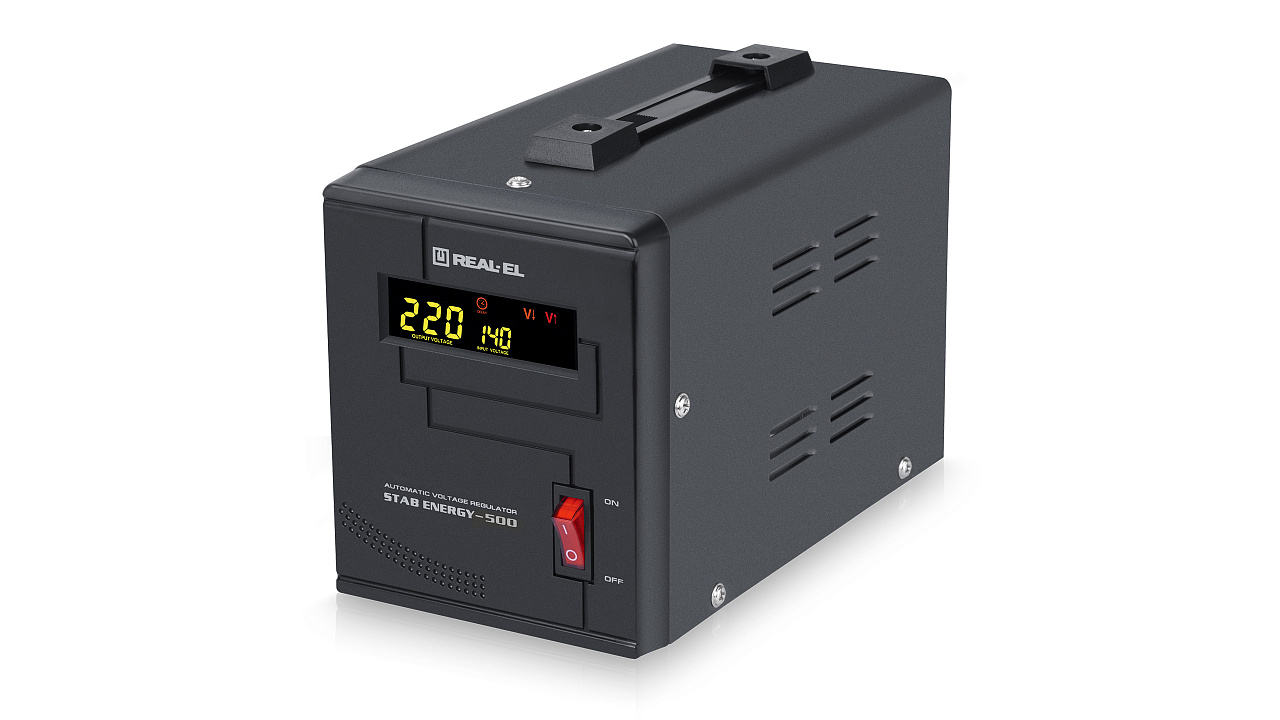

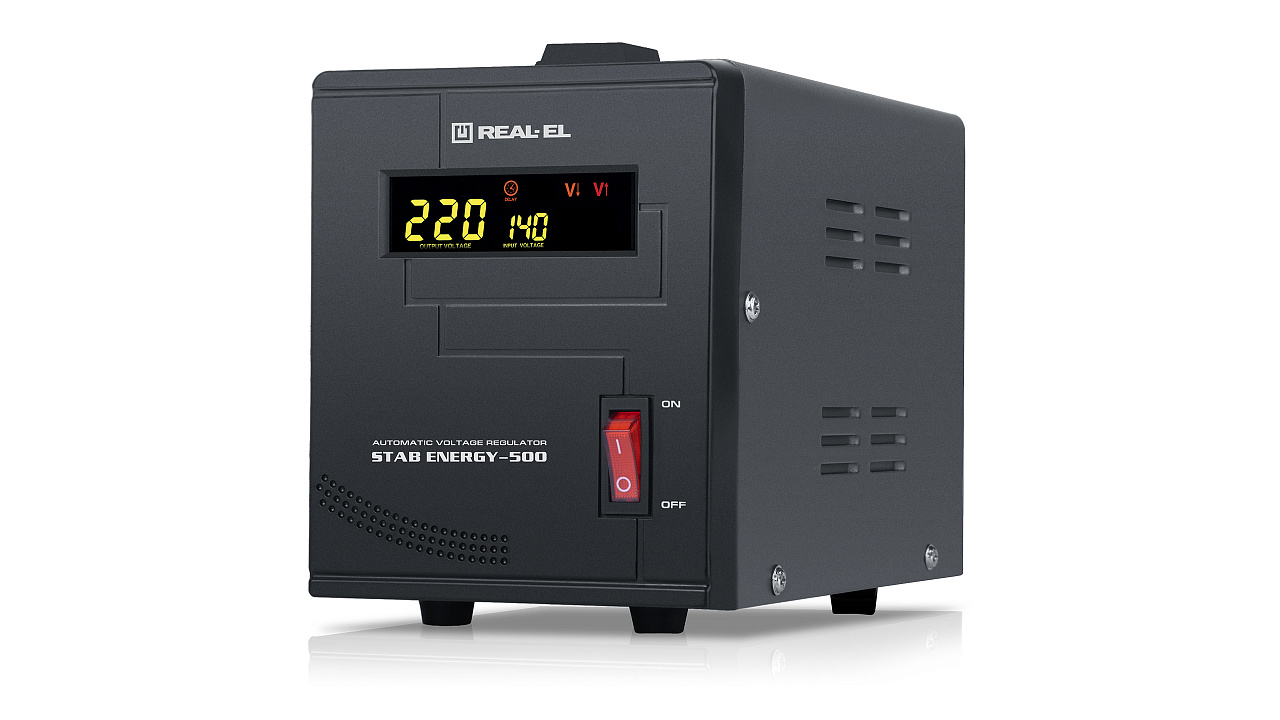

The REAL-EL STAB ENERGY-500 voltage stabilizer is designed to provide quality and stable power supply to various consumers in conditions of significant and prolonged deviations of voltage from the nominal value in the electrical network, protecting devices from overload and from the effects of high-frequency and impulse interference.

Personalities

    • Graphic LED display
    • Toroidal transformer with automatic overload protection
    • Delay in activation after voltage restoration in the network 6/180 sec
    • Zero-cross switching technology
    • Microprocessor control
    • Maximum protection against high voltage, low voltage, short circuit, overheating, and overload.

Technical specifications

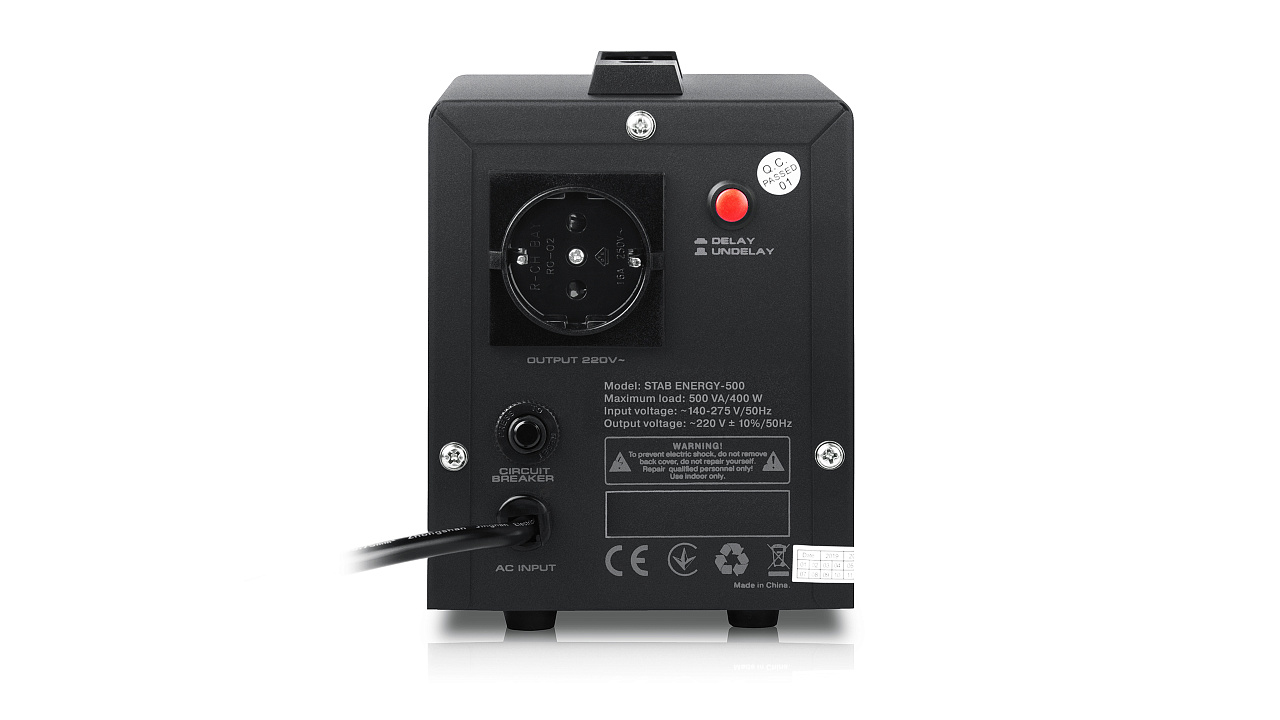

  • Output socket 1 × СЕЕ7/7
  • Input socket 1 × СЕЕ7/4
  • AVR type relay
  • Output power, VА 500
  • Maximal output power, W 400
  • Maximum load, W 400
  • Input voltage level, V ~150–270
  • Output voltage level, V ~230 ± 8 %
  • Frequency, Hz 50
  • Protection against high voltage, low voltage, short circuit, overheating and overload
  • Switching time, PV ≤ 10
  • Indication inpur and output voltage, load indication
  • Safety fuse, A 5 А
  • Environmental temperature, °С 0 ~ +40
  • Relative humidity, % up to 90
  • Case material metal + plastic
  • Dimensions, mm 120 × 145 × 220
  • Weight, kg 2,3
  • Color black
