STAB WM-10000

STAB WM-10000

The REAL-EL STAB WM-10000 network voltage stabilizer is designed to provide quality and stable power supply to various consumers in conditions of significant and prolonged deviations in voltage from the nominal level, protecting consumer devices from overload and the effects of high-frequency interference.

Personalities

    • Protection of consumer devices from changes in input voltage and high-frequency interference
    • Wide input voltage range of 150-270 V
    • Microprocessor control
    • Stabilizer protection from overload and short circuit
    • "Pause" function to delay the stabilizer activation after power supply restoration

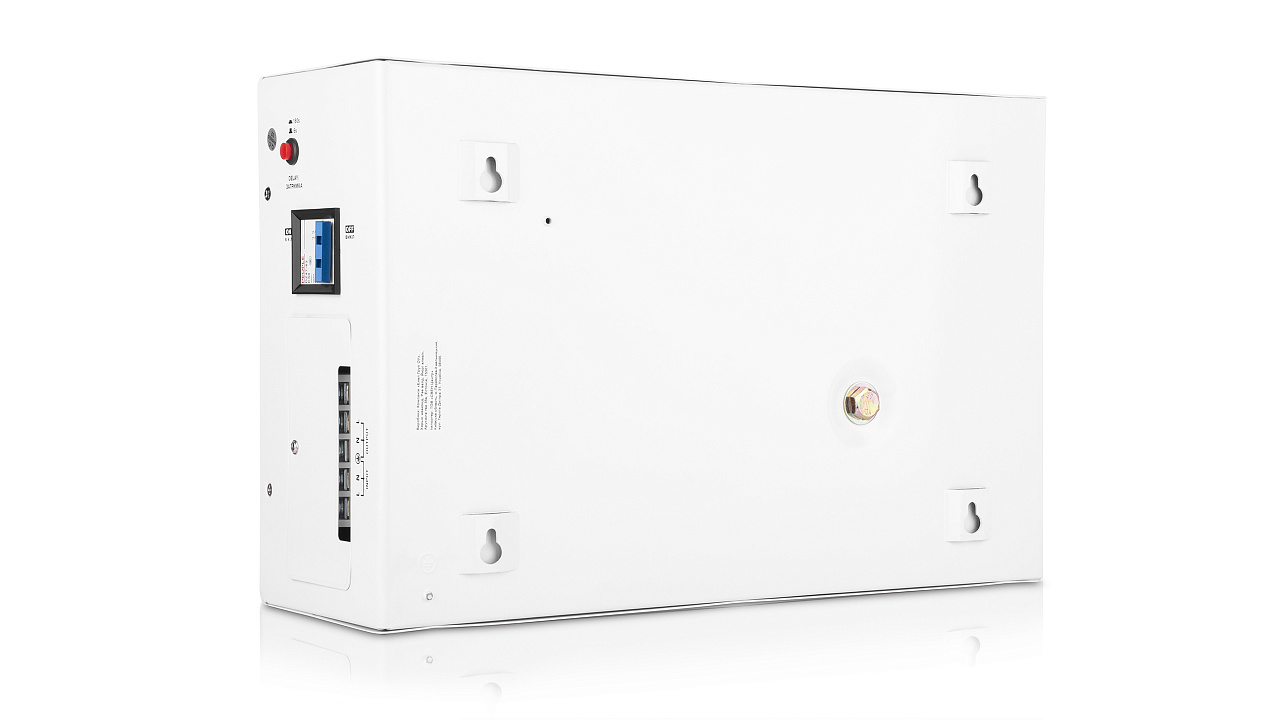

    • Wall mounting option

Technical specifications

  • AVR type relay
  • Output power, VА 10000
  • Maximal output power, W 8000
  • Maximum load, W 8000
  • Input voltage level, V ~150 – 270
  • Output voltage level, V ~230 В ± 8 %
  • Frequency, Hz 50

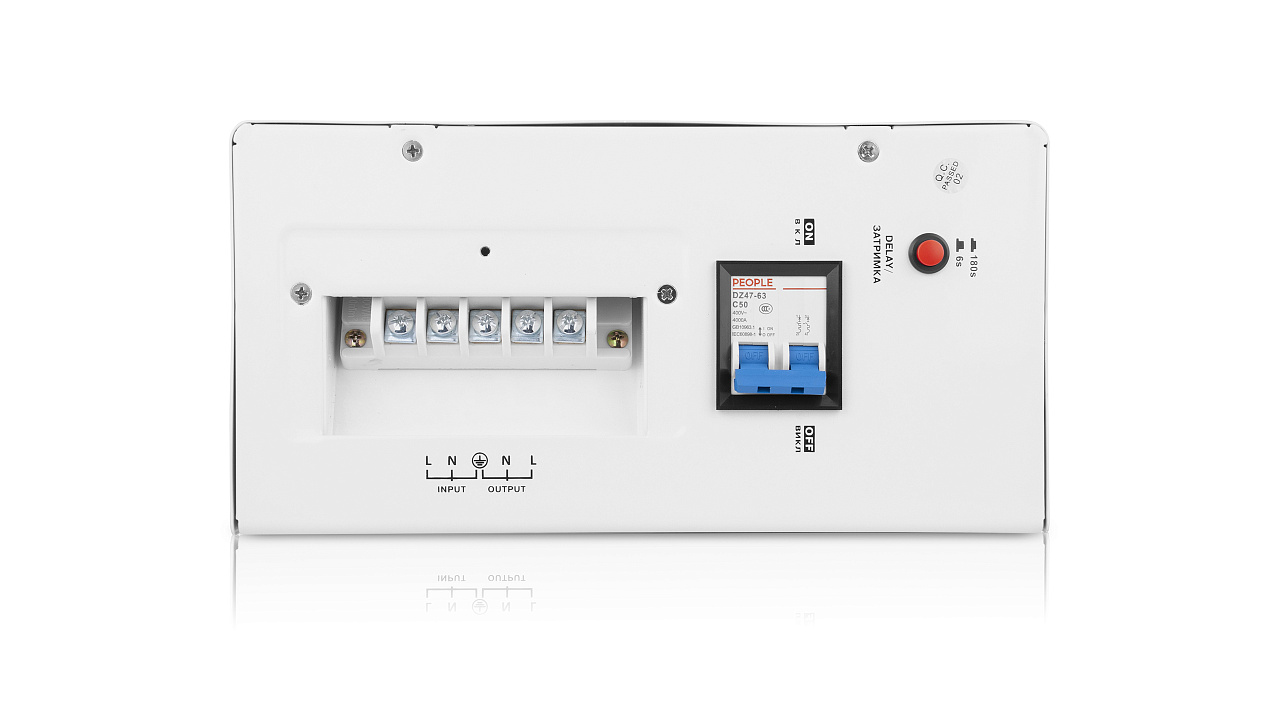

  • Input terminals terminals
  • Output terminals terminals
  • Protection automatic circuit breaker from a short circuit and overload and also from overheating
  • Protection operating current, A 50
  • Switching time, PV ≤ 10

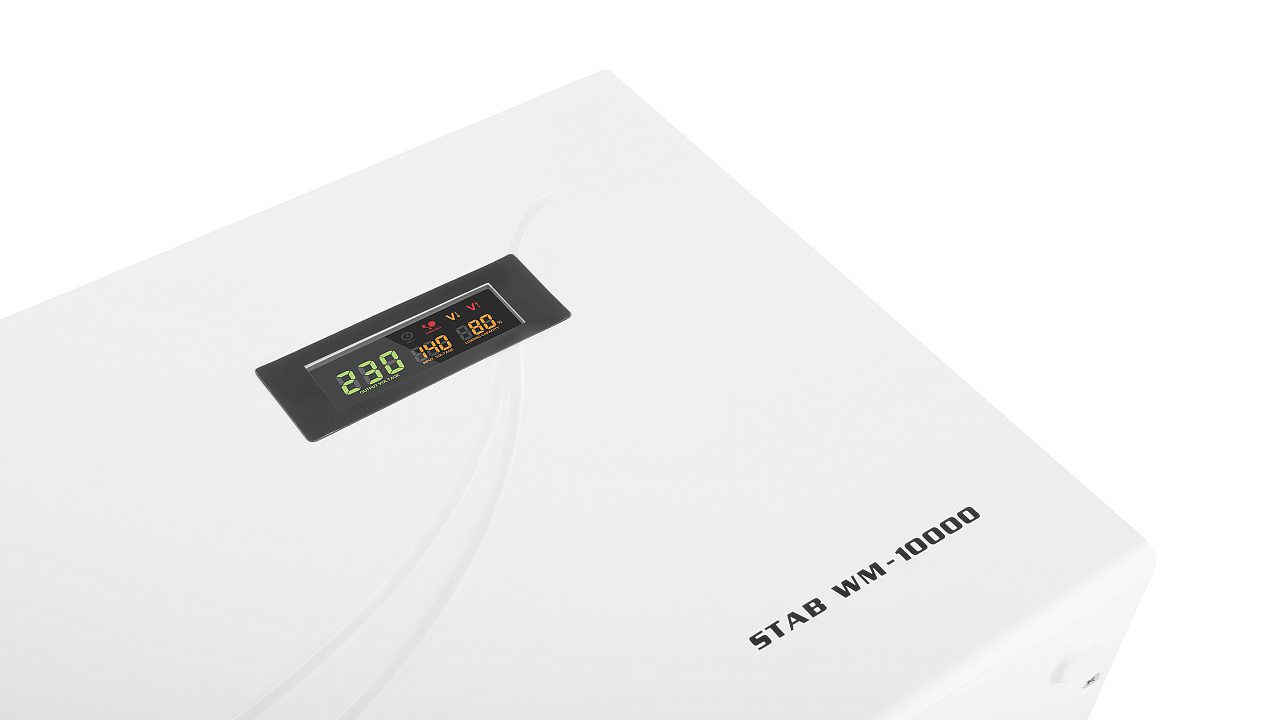

  • Indication delay, overload, low voltage, high voltage, input voltage, output voltage, load level
  • Power-on delay, sec 6/180
  • Environmental temperature, °С 0 ~ +40
  • Relative humidity, % before 90 % (without condensation)
  • Case material metal
  • Dimensions, mm 440 х 289 х 145
  • Weight, kg 20
  • Color white
