CQ-1000

Auto driver installation pic USB TYPE C connector pic 4K resolution support pic Playback SD, TF cards pic Support resolution 1920x1080 pixels pic High-speed Gigabit Ethernet connection pic Three connectors USB 3.1 pic Headphone output pic Power Delivery ≤ 100W pic

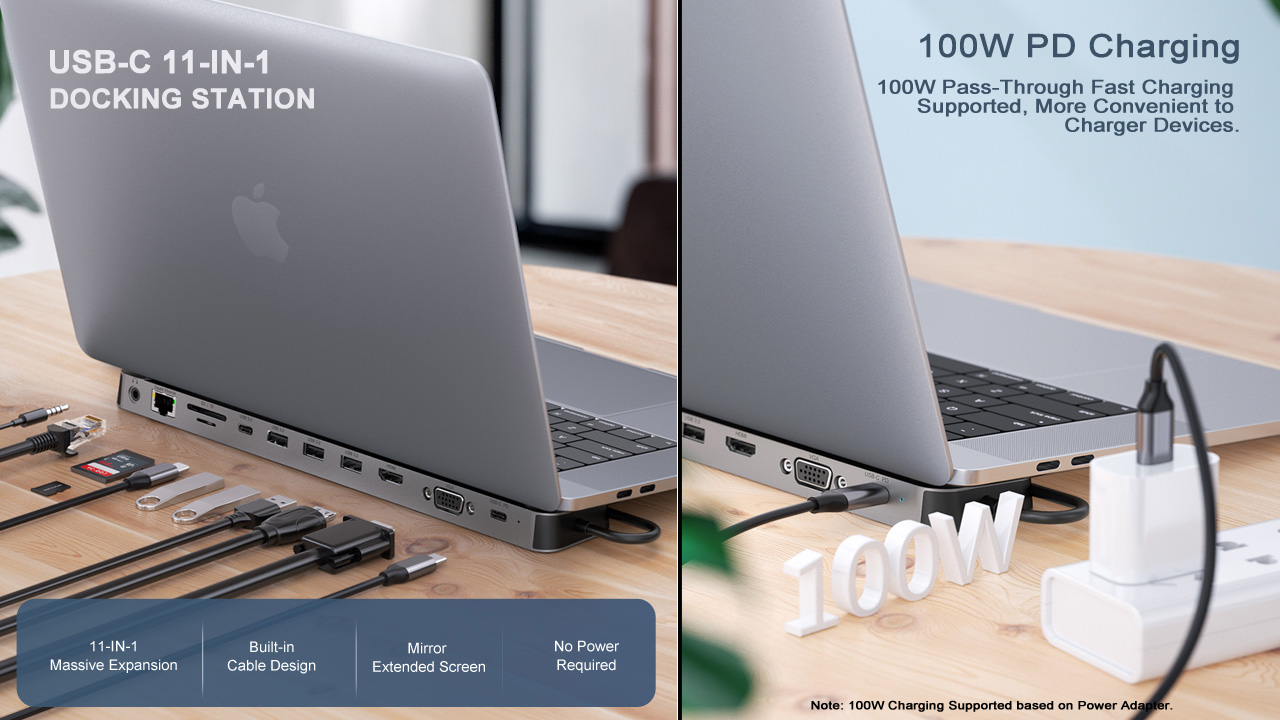

The lack of USB ports or the complete absence of Ethernet and a card reader can easily be solved with the REAL-EL CQ-1000 docking station. However, the range of devices for which this model can be used is very wide: computers, laptops, ultrabooks, smartphones, tablets, and even gaming consoles, as the CQ-1000 model is designed for use with all devices that can be connected via a Type C port and support all necessary data transfer protocols. There is also support for the PD (Power Delivery) standard with a power of up to 100 W.

Personalities

    • Built-in cable
    • No additional power required
    • Fast charging 100W PD
    • High-speed SD/TF reading and writing
    • 3.5 mm Audio compatible with OMTP 48K bit headphones

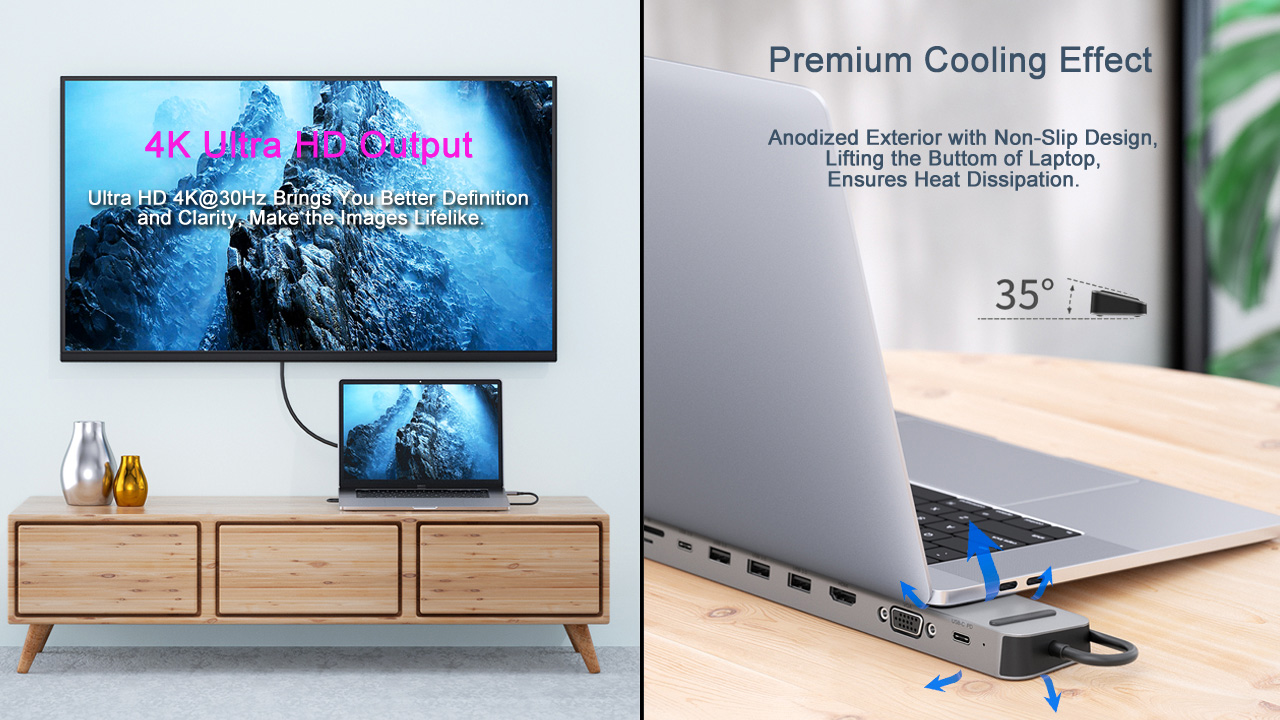

    • Provides additional cooling for the laptop
    • Aluminum alloy body
    • Soft silicone pads

Technical specifications

  • OS compatibility Mac OS/iPad OS/ Windows/Android
  • Cable length, m 0.4

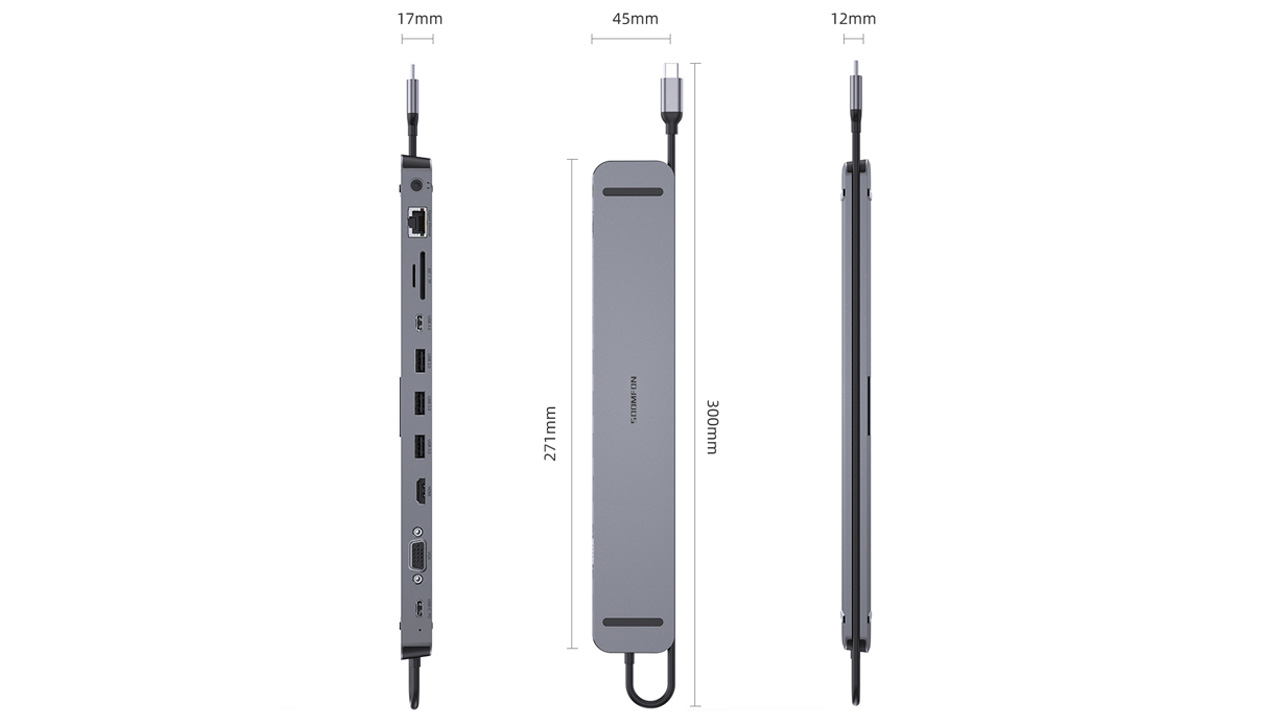

  • Dimensions, mm 270.7 х 45.3 х 16.5
  • Color gray
  • Input USB Type C, PD

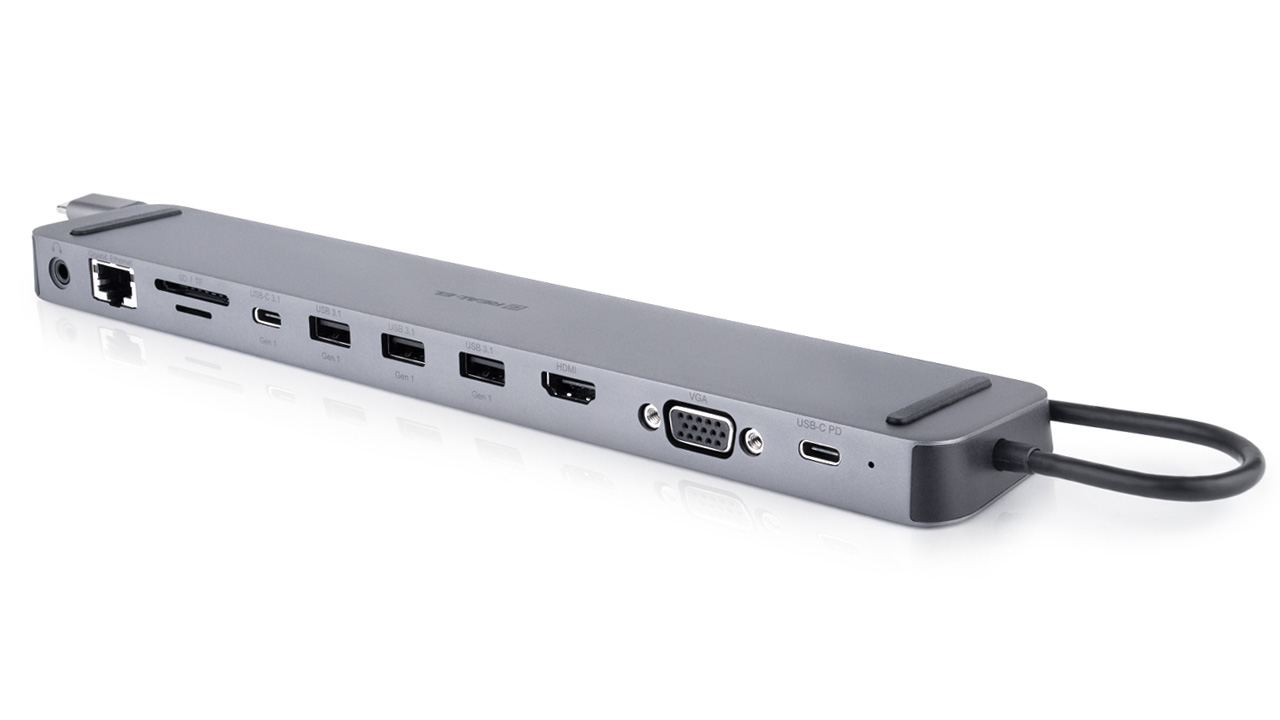

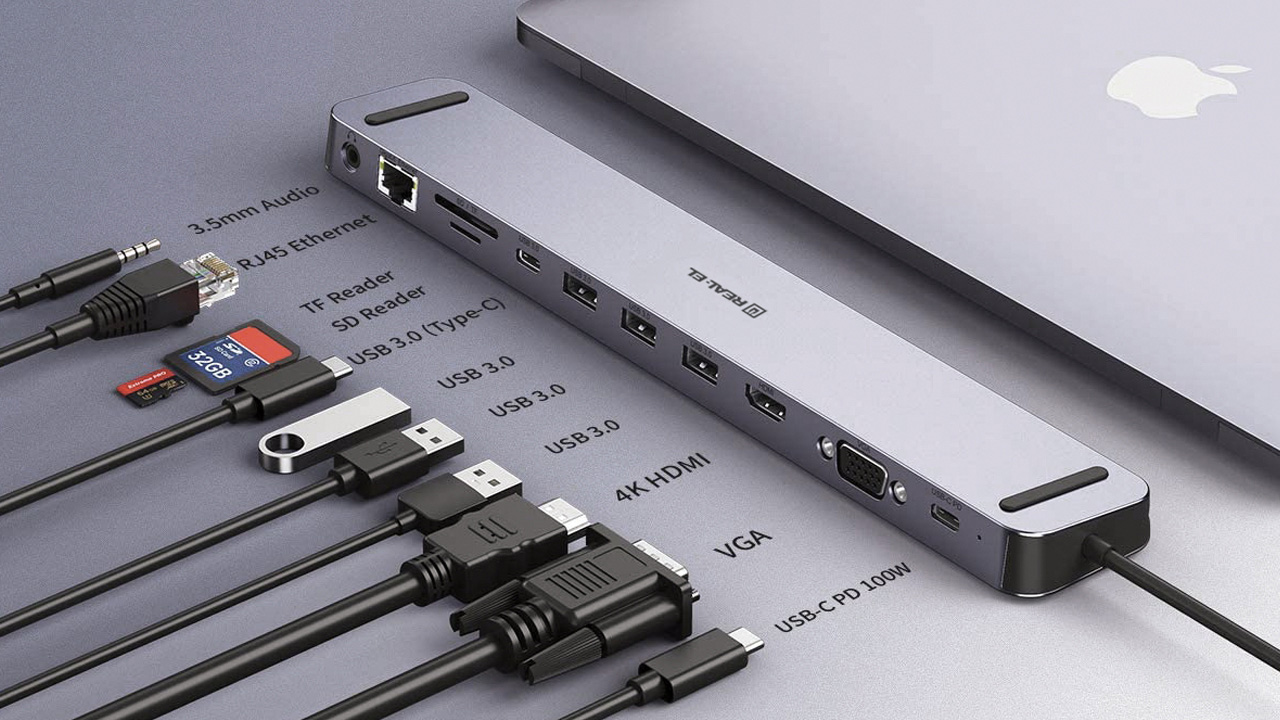

  • Output 3×USB A 3.1, USB-C, HDMI, RJ45, audio 3.5 mm, SD/TF, VGA, USB-C PD
  • HDMI Full HD 60Hz, 4K 30 Hz
  • VGA up to 1920 x 1080@ 60Hz
  • Ethernet RJ45 (Auto adaptation) 10/100/1000 Mbps
  • Power Delivery up to 100 W charging
  • USB USB-A 3.1 (gen 1) up to 5 Gbps
  • Card reader SD/TF 480 Mbps Max
  • Audio 3.5 mm Audio (compatible with OMTP 48K bit headphones)
